14

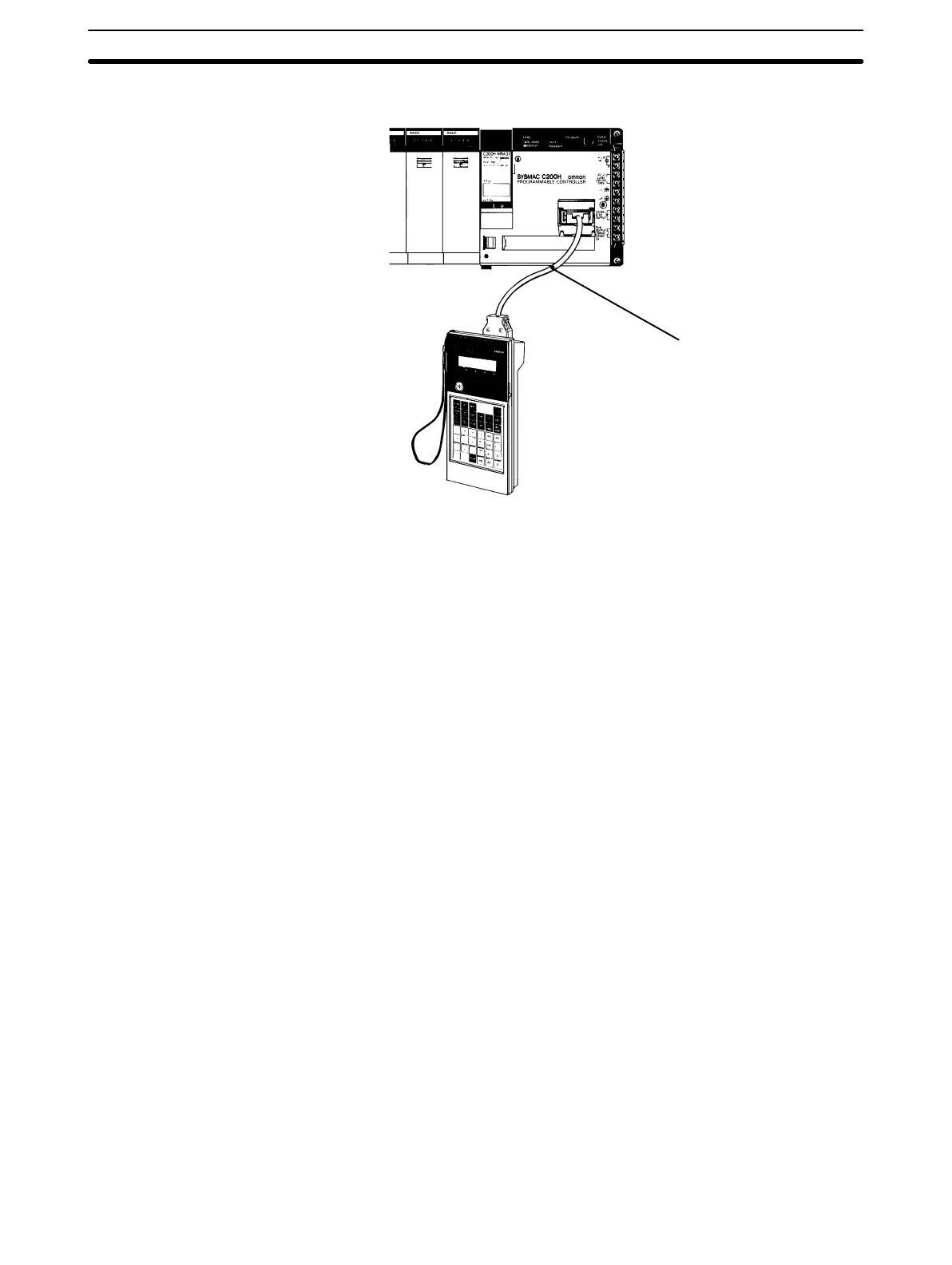

Cable Connection
Connecting Cable
Hand-held
Programming
Console
The CPU Unit-mounting Programming Console can be mounted directly to the
CPU Unit and does not require a Connecting Cable. To mount the CPU Unit-
mounting Programming Console (or any other peripheral device) directly to the
CPU Unit, follow the steps below.
Direct Mounting The CPU Unit-mounting Programming Console, when mounted to the CPU
Unit, covers the two I/O Units located directly to the left of the CPU Unit. For this
reason it is important to know which shapes can be mounted to these slots.
Notice, in the following diagram, that the two I/O Units mounted directly to the left
of the CPU Unit are A-shape Units. The CPU Unit-mounting Programming Con-
sole can be mounted to the CPU Unit provided A-shape I/O Units are mounted to
these two slots. Make sure the protective covers of the two I/O Units are in place
to avoid electrical interference with the CPU Unit.
Because the surface of B-shape and E-shape I/O Units protrudes a few centime-
ters from surface of the CPU Unit, B-shape and E-shape I/O Units cannot be
mounted to the two slots to the left of the CPU Unit unless a Programming Con-
sole Base Unit is first mounted to the CPU Unit to increase the mounting height
of the Programming Console.
CPU Units Section 2-2
