Appendix BSpecifications
114
Transistor Output Unit C200H-OD21A
(Load Circuit Protection Provided)
Max. switching
capacity
24 VDC
+10%
/
–15%
, 1.0 A (4 A/Unit)
surge current 1.6 A (sourcing type)
PNP output
No. of Circuits 1 (16 points/common)
Min. switching
capacity
None Internal Current
Consumption
160 mA, 5 VDC max.
Leakage Current 0.1 mA max. Load Short-circuit
Protection
Detection current: 1.2 A min
(1.6 A typical)
Residual Voltage 0.8 V max. Power for External Supply 35 mA 24 VDC
+10%
/
–15%
min.
ON Response Time 0.1 ms max. Alarm Output (see note) No. of outputs: 1 (2 kΩ
internal resistor)
Connectable Units: Only the
following DC Input Units and
alarm output LED indicators
can be connected:
C200H-ID001, ID211, ID212,
IM211 (DC), IM212 (DC),
ID215, ID501, MD115,
MD215, MD501
OFF Response Time 0.3 ms max.
Weight 400 g max.
Dimensions B-shape

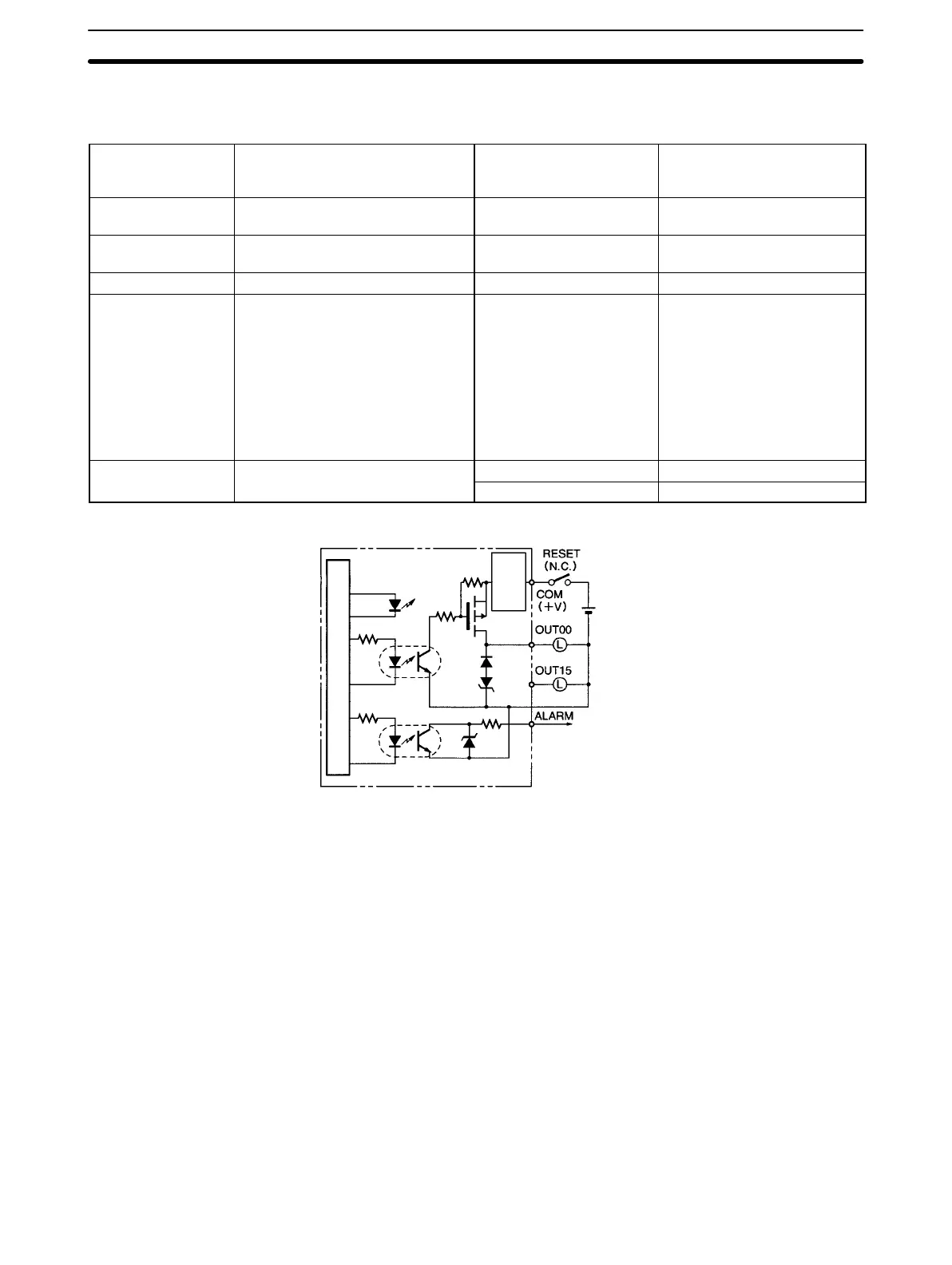

Circuit Configuration
Internal Circuit
Output LED
indicator
0 V
2 kΩ
to
Short-circuit
protection
circuit
Note When short-circuit/overload protection is activated, all 16 outputs will be switched OFF and the ALARM
output becomes active (low level). The problem can be detected externally by connecting a DC Input Unit to
the ALARM output or by connecting an alarm output indicator. It’s not possible to connect both the Input Unit
and the indicator at the same time.
