Appendix BSpecifications
143
Input Specifications (Connector 2)
Rated Input Voltage 12 VDC
+10%
/
–15%
Operating Input Voltage 10.2 to 13.2 VDC
Input Impedance 2.7 kΩ
Input Current 4.1 mA (at 12 VDC)
ON Voltage 8.0 VDC min.
OFF Voltage 3.0 VDC max.
ON Response Time 2.5 ms/15 ms max. (switchable)
OFF Response Time 2.5 ms/15 ms max. (switchable)
No. of Circuits 2 (8 points/common)
High-speed Inputs 8 points (connector 2 terminals 8 to 15, when set)
Pulse width: 1 ms/4 ms min. (switchable)
General Specifications
Internal Current Consumption 180 mA 5 VDC max.
Weight 300 g max.
Dimensions 130×34.5×100.5 (H×W×D, in millimeters)

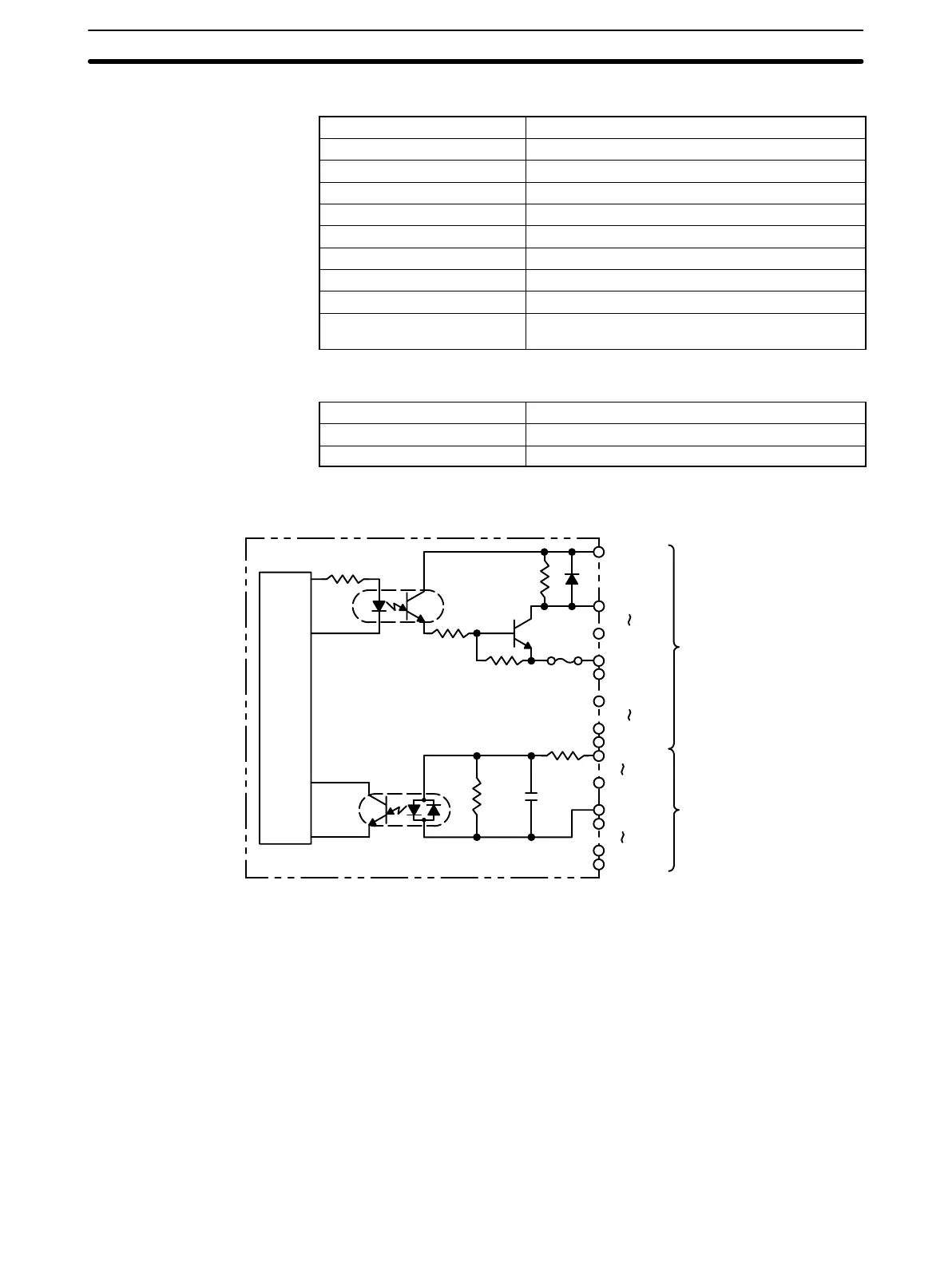

Circuit Configuration
OUT00
OUT07
COM0
OUT08
OUT15
COM1
COM2
IN08
IN15
COM3
IN00
IN07
Internal
circuit
Fuse
4.7 kΩ
2.7 kΩ
CN1
4.5 to
26.4 VDC
4.5 to
26.4 VDC
CN2
1000 pF620 Ω
