Appendix BSpecifications
171

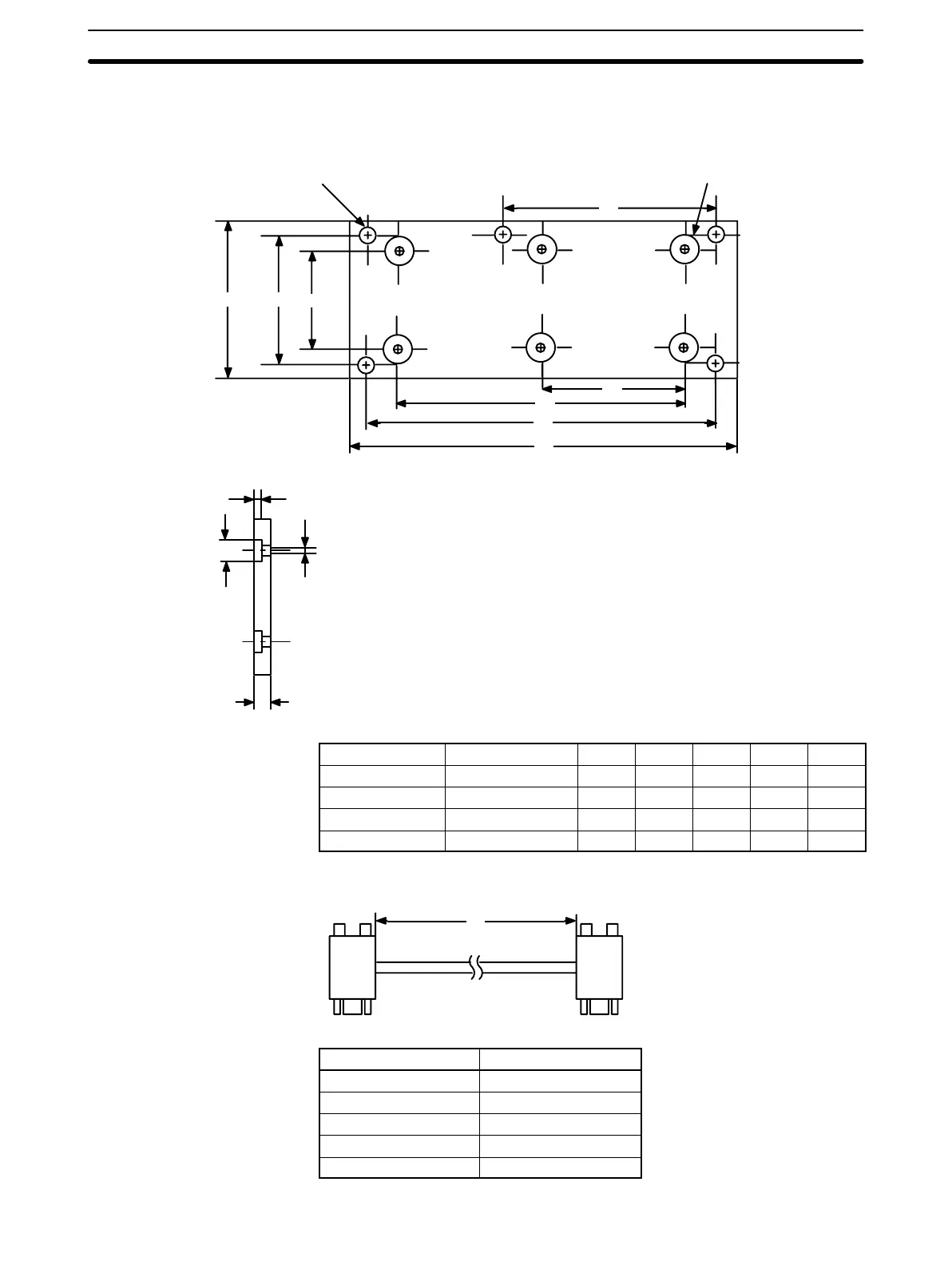

Backplane Insulation Plates The dimensions shown below are for Backplane Insulation Plates.
135 118
110
D
A
E
Insulation plate mounting screws
Four screws with 5-mm diameter
shafts are provided.
PC mounting screws
Four screws with 4-mm diameter
heads are provided.
12 dia
10
6
5 dia
B
C
Specifications Model D E C A B
3 slots C200H-ATT31 210 261 --- 246 ---
5 slots C200H-ATT51 280 331 --- 316 ---
8 slots C200H-ATT81 385 436 --- 421 ---
10 slots C200H-ATTA1 455 506 227.5 491 270.5
I/O Connecting Cables The dimensions shown below are for I/O Connecting Cables.
L
Cable
Length (L)
C200H-CN311 30 cm
C200H-CN711 70 cm
C200H-CN221 2 m
C200H-CN521 5 m
C200H-CN131 10 m
