Omron SYSMAC C200H Installation Guide

12

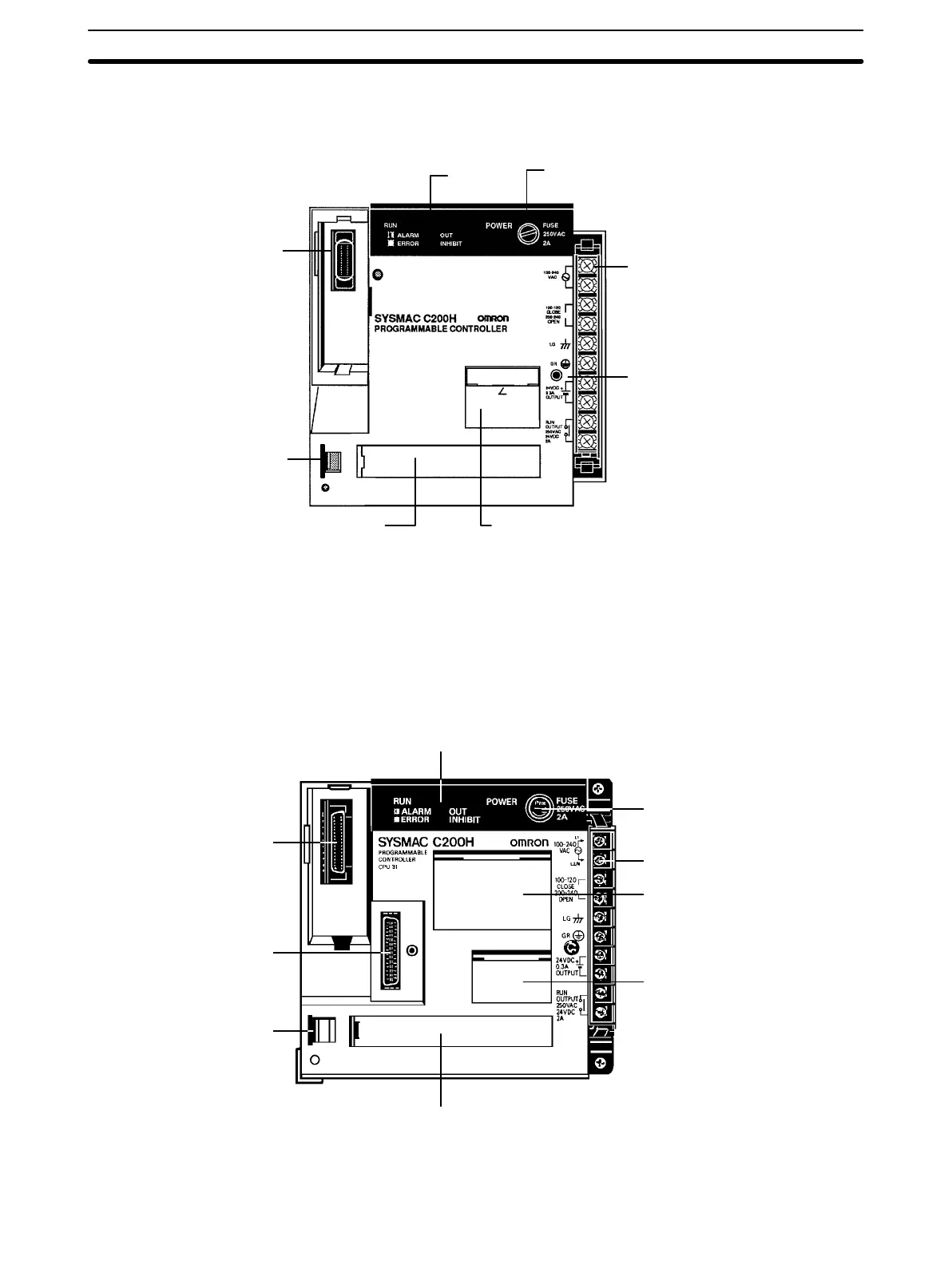

C200H-CPU21-E/23-E
Power fuse (MF51NR, 5.2 dia. x 20 mm)
C200H-CPU21-E: 2 A, 250 V
C200H-CPU23-E: 5 A, 125 V
Indicators
Detachable
terminal block
Peripheral device
mounting hole
Handheld Programming Console connector:
Remove cover to gain access to connector.
Programming Console connector:
(Peripheral device connector)
Remove cover to gain access to
connector; store cover in cover
storage slot.
Programming Console
connector cover storage
slot
Memory Unit
connector
C200H-CPU31-E
Memory Unit connector
Bus connector:
Available only with the
C200H-CPU31-E. Used
to connect this Unit to a
SYSMAC LINK Unit or
SYSMAC NET Link Unit.
Programming Console
connector cover storage
slot
Indicators
Programming Console connector
(Peripheral device connector)
Power fuse (MF51NR, 5.2 dia.
x 20 mm): 2 A, 250 V
Battery compartment
Handheld Programming
Console connector
Power supply terminals (on
removeable terminal block)
CPU Units Section 2-2
