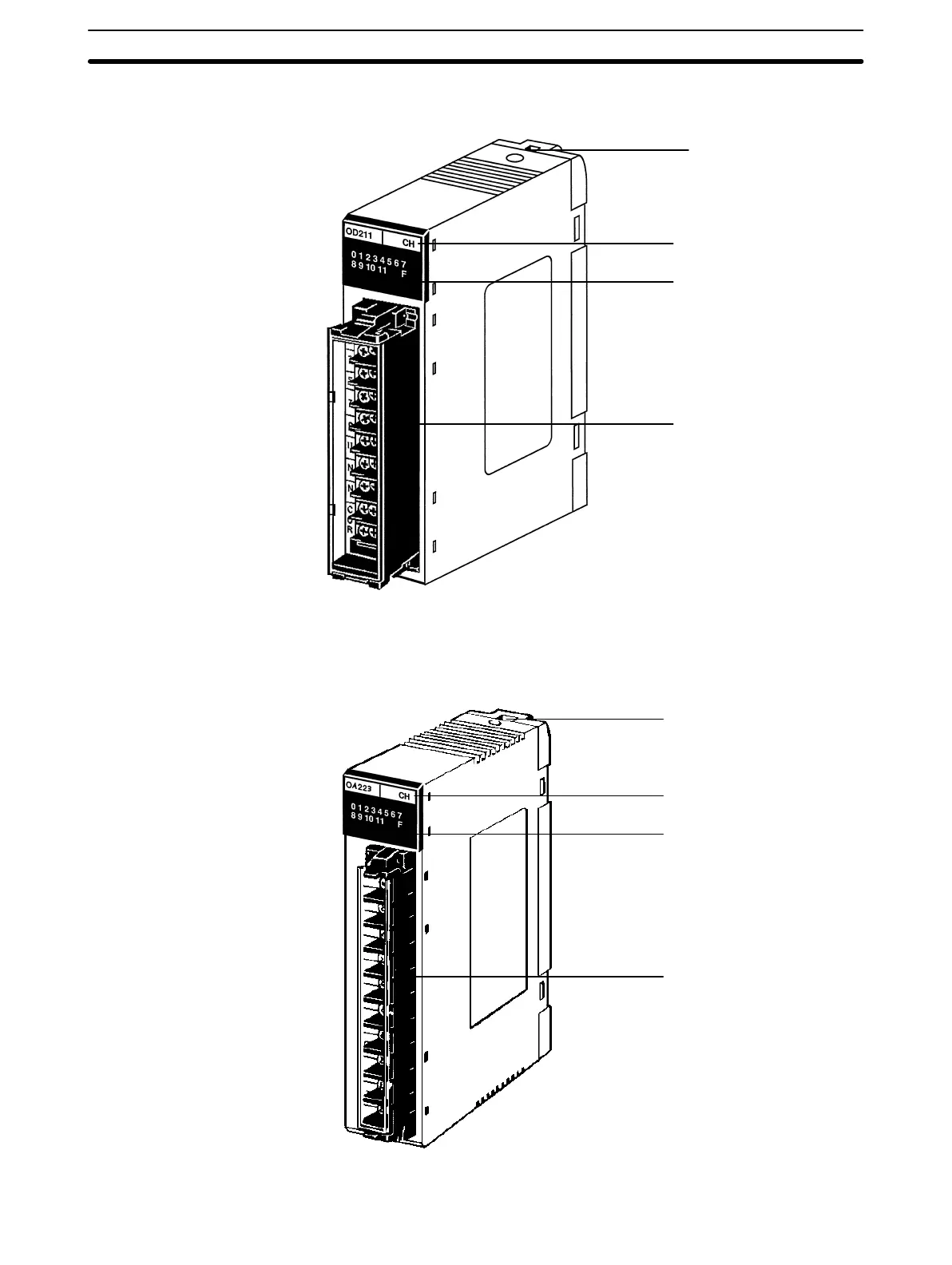

B-shape I/O Unit
I/O Unit lock notch
Nameplate
I/O indicators:
Indicate ON/OFF
status of points
19-terminal terminal block
E-shape I/O Unit (10-terminal T
erminal Block)
I/O Unit lock notch
Nameplate
I/O indicators
Indicate ON/OFF
status of points
10-terminal terminal block
I/O Units
Section 2-5
