34

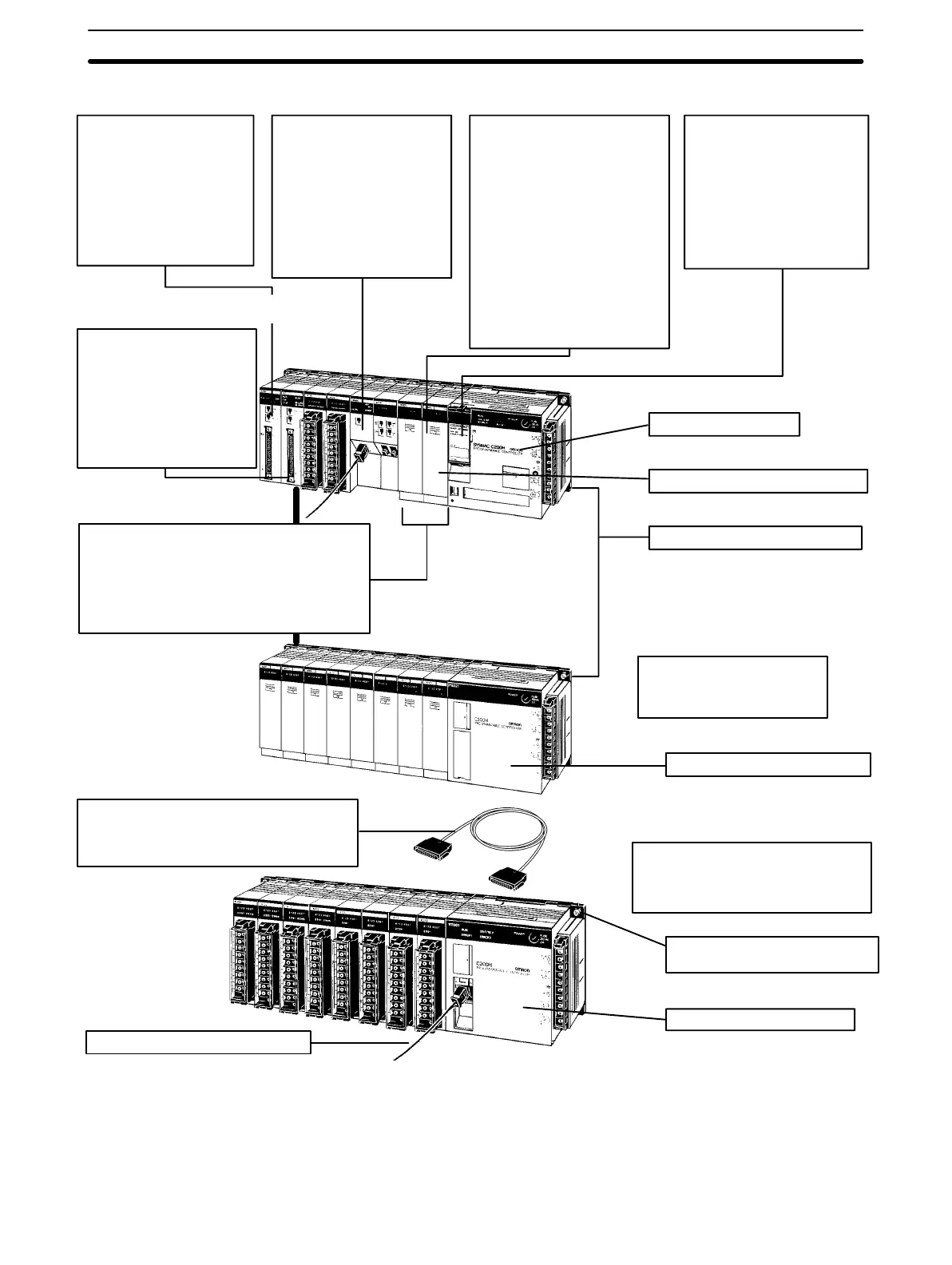

Special I/O Units
•Up to ten Special I/O
Units can be mounted.
•Mount Special I/O Units
to any slot on the CPU
Rack (except the two
slots to the left of the
CPU Unit), the Expan-
sion I/O Rack, or Slave
Rack.
Host Link Unit and
Remote I/O Master Unit
•Up to two Units can be
mounted.
•Host Link Units and Re-
mote I/O Master Units
can be mounted to any
slot on the CPU Rack
(except the two slots to
the left of the CPU Unit)
or the the Expansion I/O
Rack.
I/O Units
•I/O Units with 5, 8, 12, or 16
points. Standard B7A Inter-
face Units available also.
•Units with 10- or 19-terminal
terminal blocks.
•Units with 5 and 8 points
have 10-terminal terminal
blocks and Units with 10 and
12 points have 19-terminal
terminal blocks.
•There are some restrictions
on the mounting position of
19-terminal I/O Units (refer to
Appendix B Specifications).
Memory Units
•RAM, EPROM, or EE-
PROM Units available.
•EEPROM requires an op-
tional EEPROM Chip.
•EPROM requires a sepa-
rately available EPROM
Chip.
CPU Unit
Built-in power supply
I/O Unit cover
For 10-terminal block I/O Units
Backplane
3-, 5-, 8-, 10-slot types available
•Available in lengths from 30 cm to 10 m.
•Total length of I/O Connecting Cables
between all Racks must not exceed 12 m.
Optical Fiber Cable or Wire Cable
Up to two Expansion I/O
Racks can be connected to
one CPU Rack.
Expansion I/O Racks
Expansion I/O Power Supply
Up to five Racks can be connected.
Group-2 High-density I/O Units and
Group-2 B7A Interface Units cannot
be mounted to Slave Racks.
Slave Rack
Backplane
3-, 5-, 8-, or 10-slot types
available
Power supply built-in
Remote I/O Slave Unit
SYSMAC NET LINK Unit
and SYSMAC LINK Unit
• Use up to two Units, mounted to either of
the two slots to the left of the CPU Unit.
•When using either of these two Units the
use of peripheral devices is limited. Refer
to Section 4-3 Maximum Current and Pow-
er Supplied.
Group-2 High-density I/O Units
and Group-2 B7A Interface Units
•Up to ten 32-point or five
64-point Units can be
mounted.
•Mount the Units to any
slot on the CPU Rack (ex-
cept the two slots to the
left of the CPU Unit) or the
Expansion I/O Rack.
I/O Connecting Cable
System Configurations Section 3-3
