Setting Tag Data Links Section 6-2
The Network Configurator will connect to the EtherNet/IP network. If the
Network Configurator is connected online properly, On-line will be dis-
played in the status bar at the bottom of the window. The network connec-
tion icon will be displayed in blue in the Network Tab Page in which the
Network Configurator is connected.
The connecting network can be switched by selecting Network - Change
Connect Network.
Connecting through the CPU Unit’s Peripheral or RS-232C Port
Connect to the EtherNet/IP Unit’s Ethernet port via the CPU Unit’s peripheral
port or RS-232C port.
1,2,3... 1. Select Option - Select Interface - CS/CJ1 Serial Port → EIP Unit I/F.

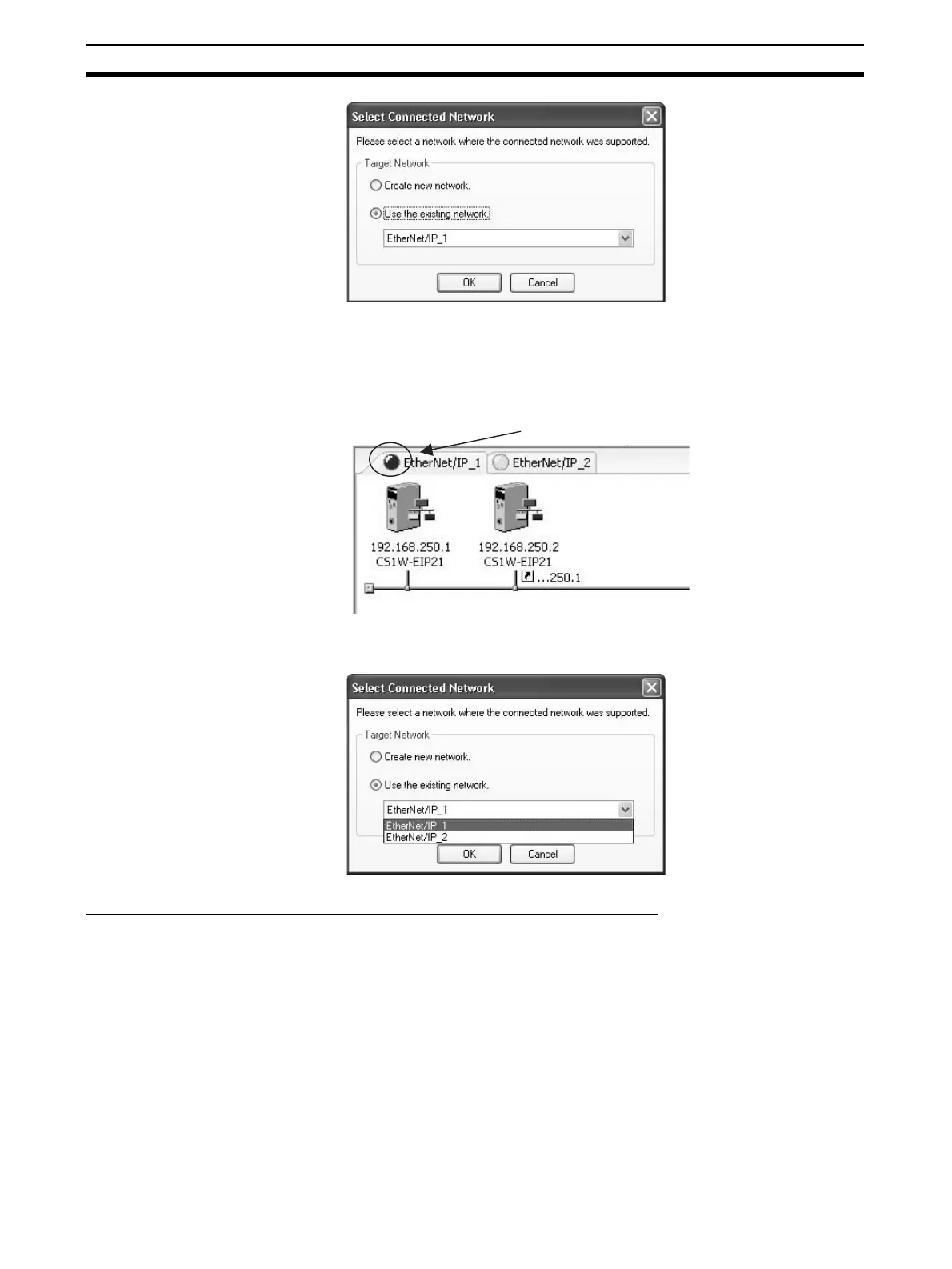

2. Select Network - Connect. The following dialog box will be displayed.
