Omtech USB3020N User Manual

3

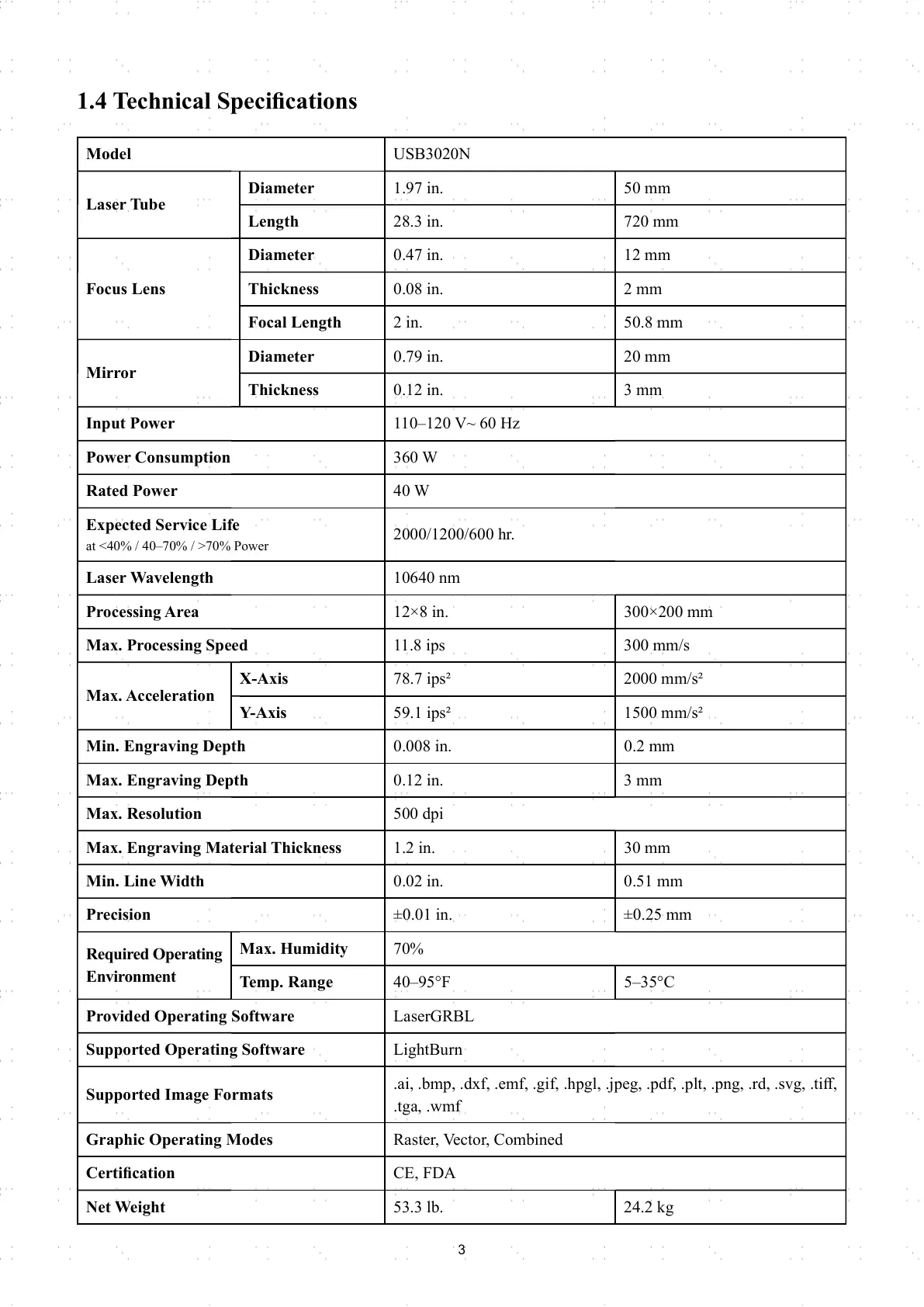

1.4 Technical Specifi cations
Model USB3020N
Laser Tube
Diameter 1.97 in. 50 mm
Length 28.3 in. 720 mm
Focus Lens
Diameter 0.47 in. 12 mm
Thickness 0.08 in. 2 mm
Focal Length 2 in. 50.8 mm
Mirror
Diameter 0.79 in. 20 mm
Thickness 0.12 in. 3 mm
Input Power 110–120 V~ 60 Hz
Power Consumption 360 W
Rated Power 40 W
Expected Service Life
at <40% / 40–70% / >70% Power
2000/1200/600 hr.
Laser Wavelength 10640 nm
Processing Area 12×8 in. 300×200 mm
Max. Processing Speed 11.8 ips 300 mm/s
Max. Acceleration
X-Axis 78.7 ips² 2000 mm/s²
Y-Axis 59.1 ips² 1500 mm/s²
Min. Engraving Depth 0.008 in. 0.2 mm
Max. Engraving Depth 0.12 in. 3 mm
Max. Resolution 500 dpi
Max. Engraving Material Thickness 1.2 in. 30 mm
Min. Line Width 0.02 in. 0.51 mm
Precision ±0.01 in. ±0.25 mm
Required Operating
Environment
Max. Humidity 70%
Temp. Range 40–95°F 5–35°C
Provided Operating Software LaserGRBL
Supported Operating Software LightBurn
Supported Image Formats
.ai, .bmp, .dxf, .emf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg, .tiff ,
.tga, .wmf
Graphic Operating Modes Raster, Vector, Combined
Certifi cation CE, FDA
Net Weight 53.3 lb. 24.2 kg

Omtech USB3020N Specifications

General

Brand	Omtech
Model	USB3020N
Category	Engraver
Language	English
