on networks N300R User Manual

N300 WiFi Router (N300R) User Manual
Using Network Monitoring Tools 6-5
May 2012
Table 6-2 describes the connection status settings.
a. Click the Release button to release the connection status items (that is, all items return to
0).
b. Click the Renew button to renew to the connection status items (that is, all items are
refreshed).
c. Click the Close Window button to close the Connection Status screen.
3. Click Show Statistics to display router usage statistics.
Table 6-2. Connection Status Settings
Item Description
IP Address The IP address that is assigned to the router.
Subnet Mask The subnet mask that is assigned to the router.
Default Gateway The IP address for the default gateway that the router communicates with.
DHCP Server The IP address for the Dynamic Host Configuration Protocol server that provides
the TCP/IP configuration for all the computers that are connected to the router.
DNS Server The IP address of the Domain Name Service server that provides translation of
network names to IP addresses.
Lease Obtained The date and time that the lease was obtained.
Lease Expires The date and time that the lease will expire.

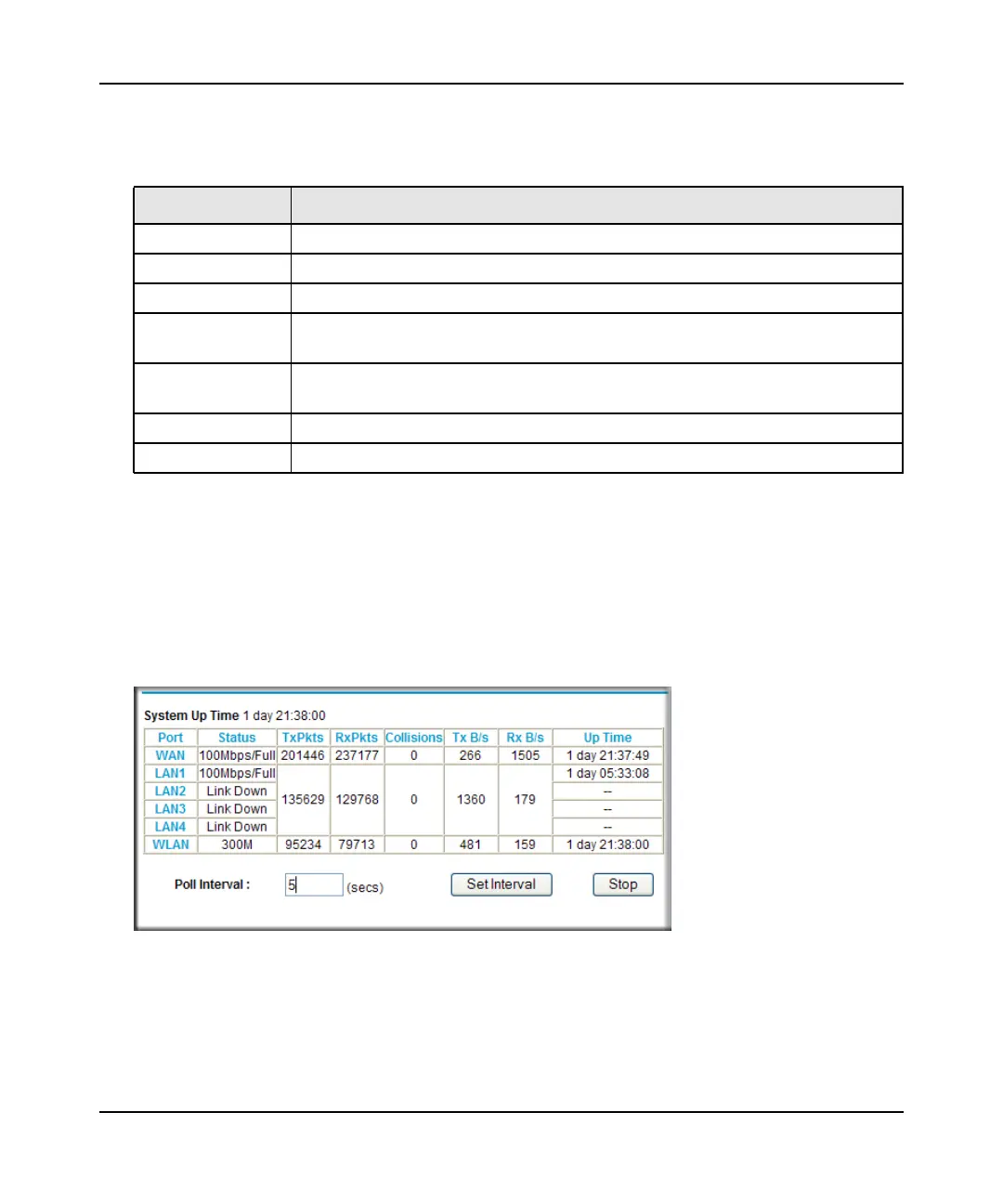

Figure 6-3
