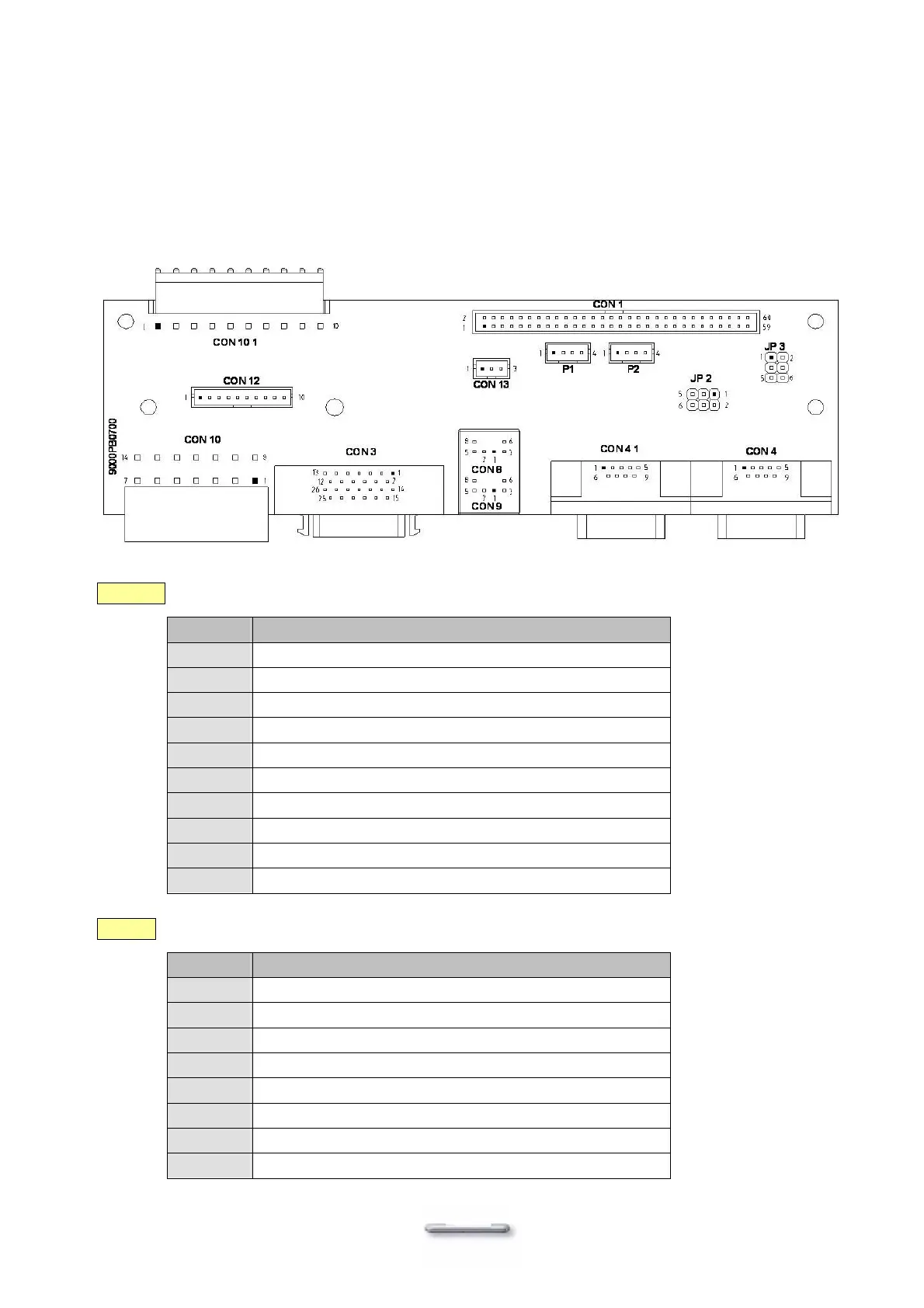

I/O board Configuration
The main I/O board 9000PB0700 covers the primary I/O ports to the mainboard. Including: DC
power input, COM1 and COM2, LPT1, PS/2 keyboard, PS/2 mouse and audio port.
9000PB0700 I/O Board Pin Definition
CON101 DC power connector
PIN No. Description
1
DC +5V
2
DC +5V
3
+5SB
4
DC +12V
5
PSON
6
GND
7
GND
8
GND
9
GND
10
+12V
CON10 System DC power connector for Mainboard
PIN No. Description
1
DC +12V
2
+5SB
3
DC+12V
4
GND
5
DC+12V
6
GND
7
NC
8
DC +5V
