ONEAN X USER’S MANUAL
24
07
RepaiRs and Replacements

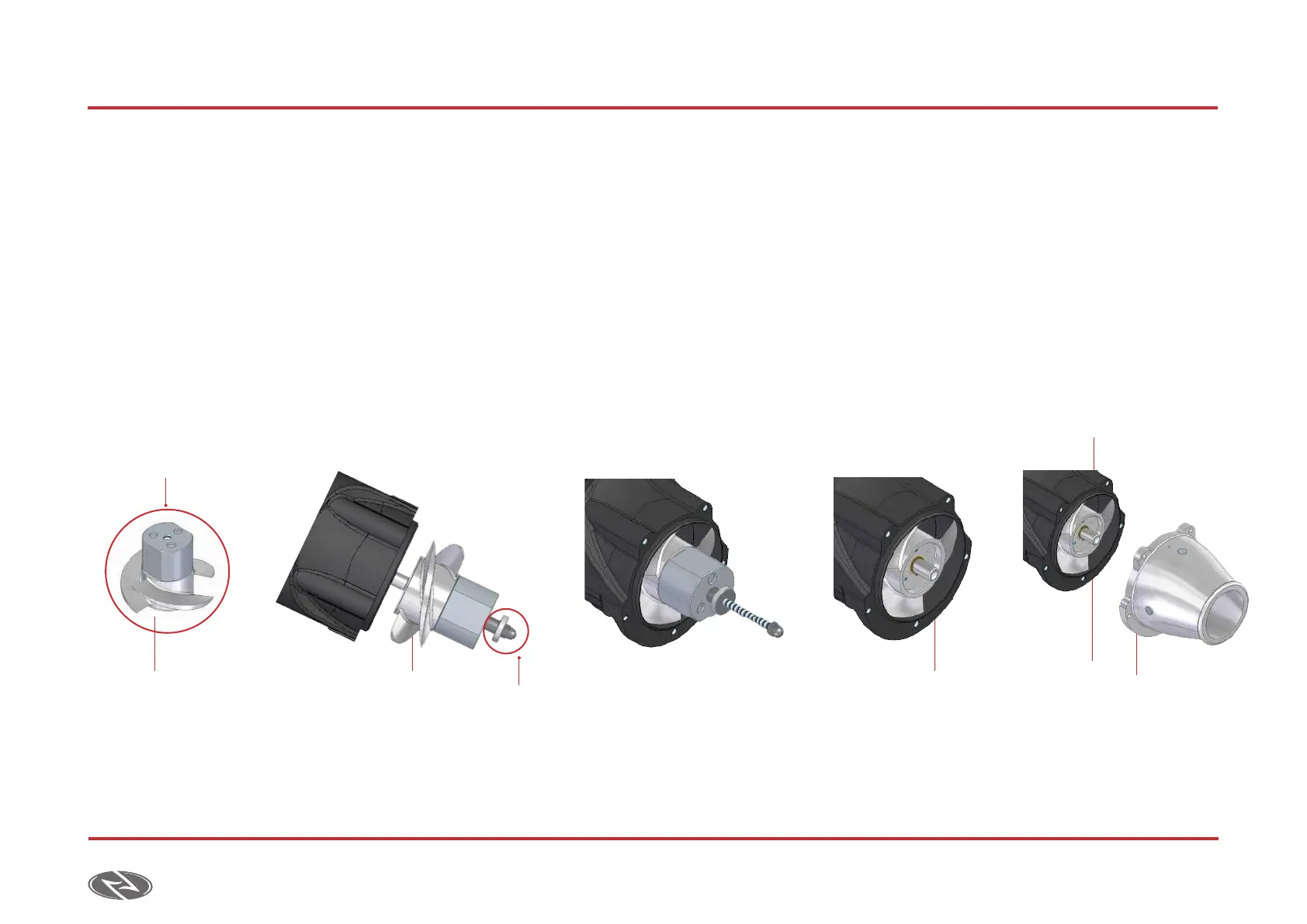

1. Hold the tool (7) next
to the impeller (A)and
screw the 3 socket head
screws (2) using the hex
key SW2,5. The tool and
impeller will be fixed to
one another as you may
see in the picture below.
“Assembly 1”.
2. Manually introduce the
Assembly 1 to the Jet Unit
through the shaft (B) as
far as possible without
applying excessive force.
3. Pass the Assembly 2
through the tool’s (7) hole
and screw the threaded
rod (1) to the JetUnit’s
shaft (B) holding it from
the hex cap (8).
4. Hold the tool (7) while
turning the knurled
nut (3) clockwise. The
Assembly 1 & 2 while
slightly mount onthe the
Jetpack’s Shaft (B).
5. Once the Impeller reaches
the end of its trayectory,
unscrew the Assembly 2
from the shaft (B) holding
it from the hexagonal cap
(8).
6. Unscrew the tool from the
impeller.
7. Mount a new Circlip
(Seeger Ring)
8. In order to mount the
Stator/Nozzle assembly
back to the Jet Unit, it is
recommended to apply
grease on the Jet Unit’s
shaft. Push the assembly
Stator/Nozzle onto the
shaft and screw the 5
socket head screws (D)
using the hex key SW3.
7.1.2. Mounting the iMPeLLer
A
B
B
B
Apply grease
D
Assembly 2
Assembly 1
