7

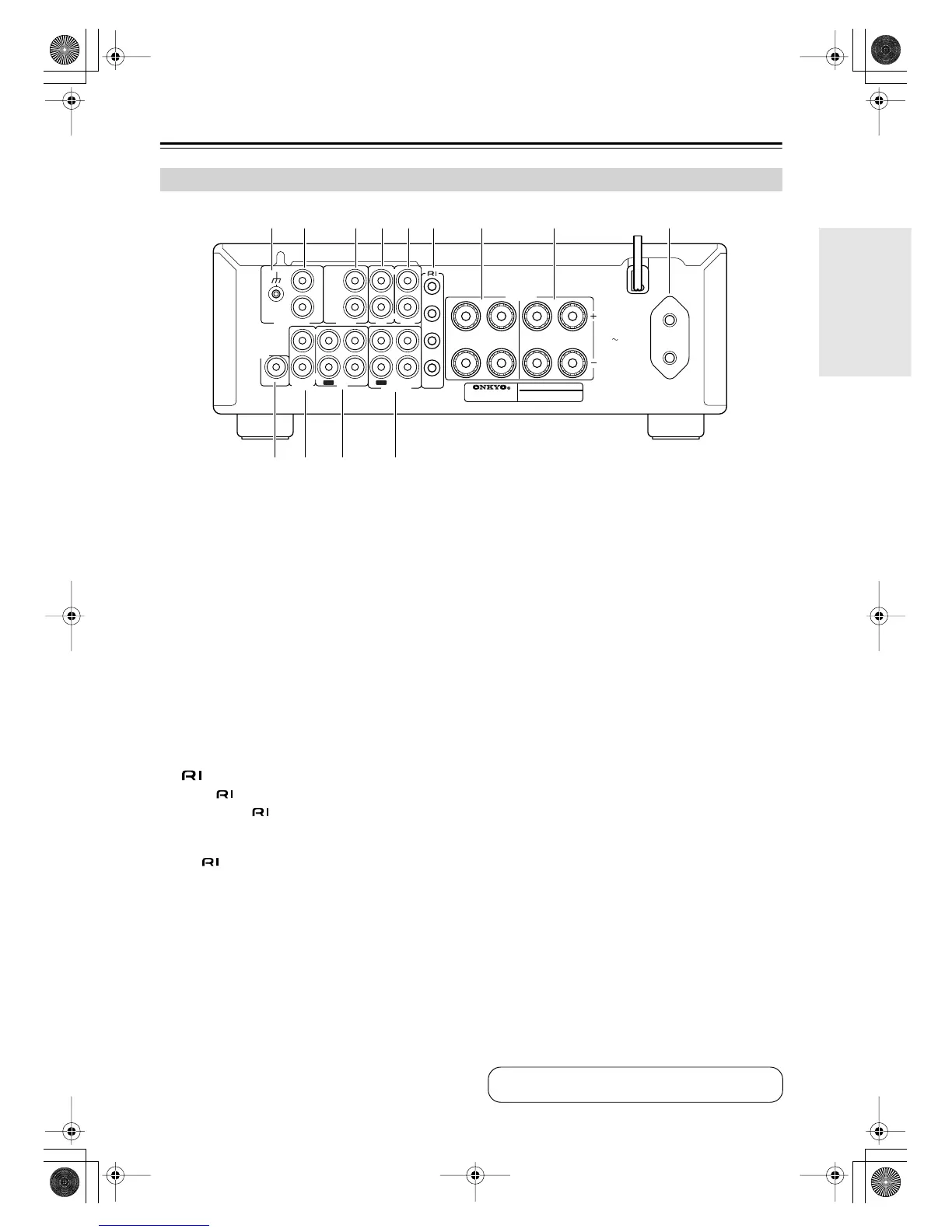

Front & Rear Panels
—Continued
A
Grounding terminal
This terminal is for connecting a turntable’s ground
wire.
B
PHONO (MM) input
This analog audio input is for connecting a turntable
with a moving-magnet cartridge.
C
TUNER input
This analog audio input is for connecting a tuner’s
analog audio output.
D
CD input
This analog audio input is for connecting a CD
player’s analog audio output.
E
LINE input
This analog audio input is for connecting a compo-
nent’s analog audio output (TV, etc).
F
REMOTE CONTROL jacks
These (Remote Interactive) jacks can be con-
nected to the jacks on your other Onkyo audio
components. The A-933’s remote controller can
then be used to control all of your components. To
use , you must make an analog audio connection
between the A-933 and each component.
G
SPEAKERS B
These terminal posts are for connecting speaker set
B.
H
SPEAKERS A
These terminal posts are for connecting speaker set
A.
I
AC OUTLET
This AC outlet can be used to supply power to
another audio component. The type of outlet
depends on the country in which you purchased the
A-933.
J
SUBWOOFER PREOUT
This jack is for connecting a powered subwoofer.
K
MAIN IN
This analog audio input is for connecting a separate
preamp when you want to use the A-933 as a power
amplifier.
Caution:
Do not connect a component that does not have an
output volume control, such as a CD player, because
the sound will be output at maximum volume and
may damage the A-933 and your speakers.
L
MD IN/OUT
This analog audio input and output are for connect-
ing an MD recorder with an analog audio input and
output.
M
TAPE/CDR IN/OUT
This analog audio input and output are for connect-
ing a recorder (CD, cassette, etc) with an analog
audio input and output.
Rear Panel
AC OUTLET
UNSWITCHED
TOTAL
100W MAX.
AC 230-240 V
50 Hz
CAUTION: SPEAKER IMPEDANCE
A or B : 4 OHMS MIN. /SPEAKER
A + B : 8 OHMS MIN. /SPEAKER
MODEL NO. A
-
933
INTEGRATED AMPLIFIER
MD
SPEAKERS
R
R
L
R
L
L
R
L
R
L
SUBWOOFER
PREOUT
OUT
IN
OUT
IN
GND
REMOTE
CONTROL
TAPE/CDR
MAIN IN
CD
LINE
TUNER
PHONO (MM)
A
B
R
L
R
L
R
L
132546 8 97
CBA0
See pages 11–16 for connection information
*EnA93302.fm Page 7 Tuesday, January 25, 2005 1:46 PM

Other manuals for Onkyo A-933

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Onkyo A-933 and is the answer not in the manual?

Onkyo A-933 Specifications

General IconGeneral
Frequency range10 - 60000 Hz
Signal-to-Noise Ratio (SNR)100 dB
Total Harmonic Distortion (THD)0.08 %
Product colorBlack
Dimensions (WxDxH)275 x 103 x 328 mm
Power requirementsAC 220-240 V, 50 Hz
Power consumption (standby)0.9 W
Power consumption (typical)100 W
Weight and Dimensions IconWeight and Dimensions
Weight7500 g
