Onkyo HT-R490 User Manual

13
Example of how to connect your equipment
Connecting your audio components
Connecting a CD player
Using an RCA-type audio connection cable, connect the output
terminal on the CD player to the CD L/R jacks on the HT-R490.
Make sure that you properly connect the left channel to the L jack
and the right channel to the R jack.
If the CD player has a digital output jack as well, be sure to also
connect it to either a DIGITAL INPUT OPTICAL or COAXIAL
jack on the HT-R490 depending on the type of connector on the
CD player.
With the initial settings of the HT-R490, the CD input source is set
for digital input at the OPTICAL jack. If the digital connection is
made at a different jack, this must be changed (see page 12).
Connecting a cassette tape deck, MD recorder,
DAT deck, or CD recorder
Using an RCA-type audio connection cable, connect the output
terminals (PLAY) of the device to the TAPE IN L/R jacks on the
HT-R490 and the input terminals (REC) to the TAPE OUT L/R
jacks. Make sure that you properly connect the left channel to the
L jack and the right channel to the R jack.
If the device has a digital output jack as well, be sure to also
connect it to either a DIGITAL INPUT OPTICAL or COAXIAL
jack on the HT-R490 depending on the type of connector on the
device.
With the initial settings of the HT-R490, the DIGITAL INPUT jack
for the TAPE source is not assigned. If you connect the device to
the DIGITAL INPUT jack, then this input source must be set for
digital input at the DIGITAL INPUT button (see page 12).
Analog signal
Signal flow
Digital signal
Tape deck, MD recorder,
DAT deck, CD recorder,
(TAPE)
CD player
(CD)
Optical plug
Audio (L)
Audio (R)
ANTENNA
FM
75
AM
IN
L
L
R
R
FRONT
CENTER
SURR
SUB
WOOFER
COAXIAL
OUT
IN
R
L
R
L
IN
OUT
VIDEO
DIGITAL INPUT
MONITOR
OUT
DVD
CD
SUB
WOOFER
PRE OUT
TAPE
DVD
VIDEO 2
VIDEO 1
R
L
OPTICAL
IN
IN
MULTI
CHANNEL INPUT
MONI-
TOR
OUT
AUDIO
OUT
DIGITAL
OUT
OPTICAL
RL
AUDIO OUT
(PLAY)
RL
AUDIO IN
(REC)
RL

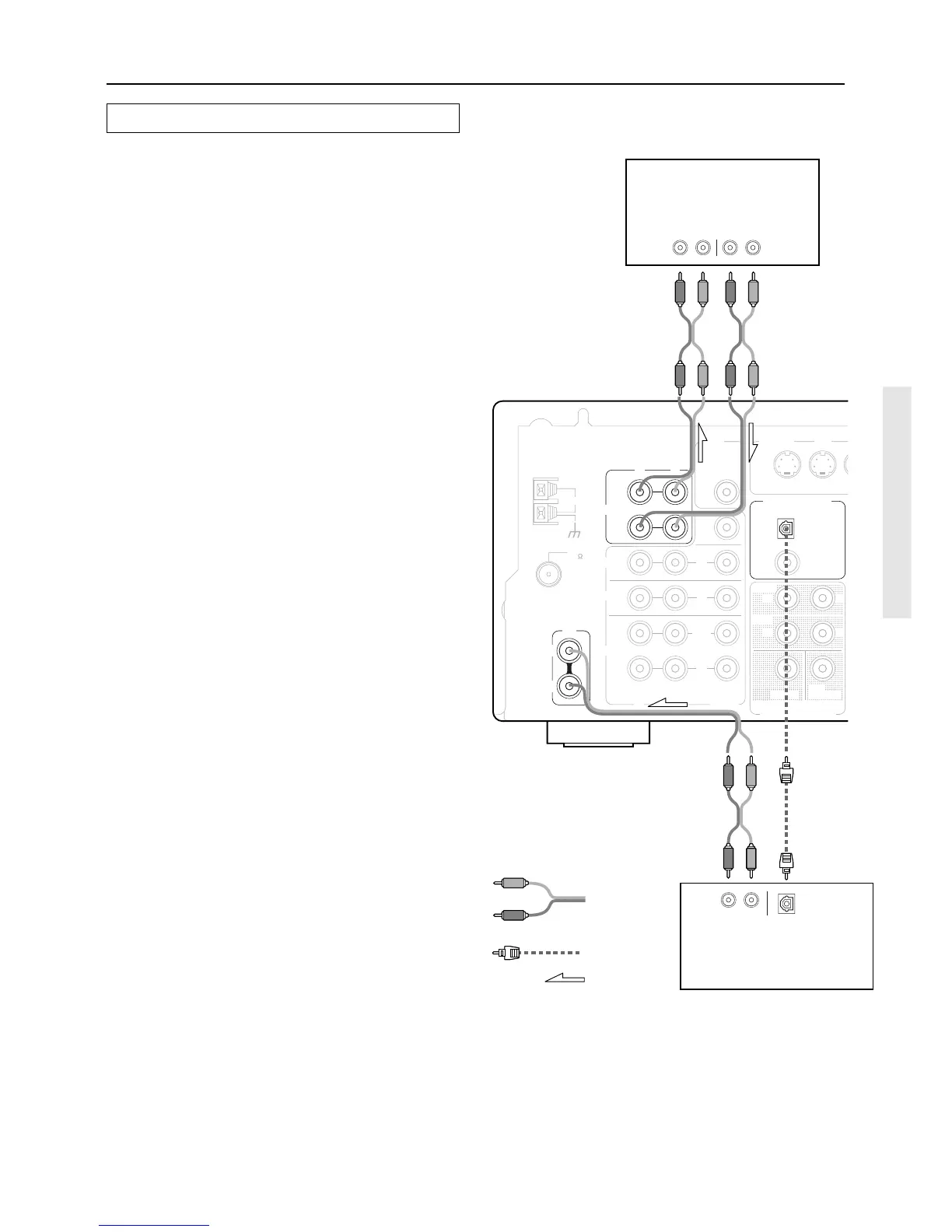

Example of audio equipment connections

Onkyo HT-R490 Specifications

Amplifier Section

continuous average power output (FTC) - 8 ohms	55 watts per channel min. RMS
continuous average power output (FTC) - 6 ohms	70 watts min. RMS
continuous power output (DIN)	75 watts × 5 at 6 ohms
maximum power output (EIAJ)	100 watts × 5 at 6 ohms
total harmonic distortion	0.08% at rated power (Front)
IM distortion	0.08% at rated power (Front)
damping factor	60 at 8 ohms (Front)
input sensitivity and impedance - LINE	200 mV, 50 kohms
input sensitivity and impedance - MULTICHANNEL INPUT (FRONT L/R, SURROUND L/R, CENTER)	200 mV, 50 kohms
input sensitivity and impedance - MULTICHANNEL INPUT (SUBWOOFER)	36 mV, 50 kohms
input sensitivity and impedance - DIGITAL 2 (COAXIAL)	0.5 Vp-p, 75 ohms
output level and impedance - Rec out (TAPE, VIDEO 2)	200 mV, 2.2 kohms
output level and impedance - Pre out (SUBWOOFER)	1 V, 2.2 kohms
frequency response	20 Hz to 100 kHz, +1/–3 dB
RIAA deviation	20 Hz to 20 kHz, ±0.8 dB
tone control - Bass	±10 dB at 50 Hz
tone control - Treble	±10 dB at 10 kHz
signal-to-noise ratio - CD/Tape	100 dB (IHF-A)

Tuner Section

FM tuning range	87.5-108.0 MHz (50 kHz steps)
FM usable sensitivity - Mono	11.2 dBf, 1.0 µV (75 ohms)
FM usable sensitivity - Stereo	17.2 dBf, 2.0 µV (75 ohms)
FM 50 dB quieting sensitivity - Mono	17.2 dBf, 2.0 µV (75 ohms)
FM 50 dB quieting sensitivity - Stereo	37.2 dBf, 2.0 µV (75 ohms)
FM capture ratio	2.0 dB
FM image rejection ratio	40 dB
FM IF rejection ratio	90 dB
FM signal-to-noise ratio - Mono	76 dB
FM signal-to-noise ratio - Stereo	70 dB
FM alternate channel attenuation	55 dB
FM selectivity	50 dB (DIN)
FM AM suppression ratio	50 dB
FM total harmonic distortion - Mono	0.2%
FM total harmonic distortion - Stereo	0.3%
FM frequency response	30 Hz-15 kHz, ±1.0 dB
FM stereo separation	45 dB at 1 kHz
AM tuning range	530-1, 710 kHz (10 kHz steps)
AM usable sensitivity	30 µV
AM image rejection ratio	40 dB
AM IF rejection ratio	40 dB
AM signal-to-noise ratio	40 dB
AM total harmonic distortion	0.7%

General

power supply	AC 120 V, 60 Hz
power consumption	3.4 A
dimensions (W × H × D)	435 × 150 × 339 mm
weight	9.7 kg, 21.4 lbs.
