Onkyo HT-R490 User Manual

15

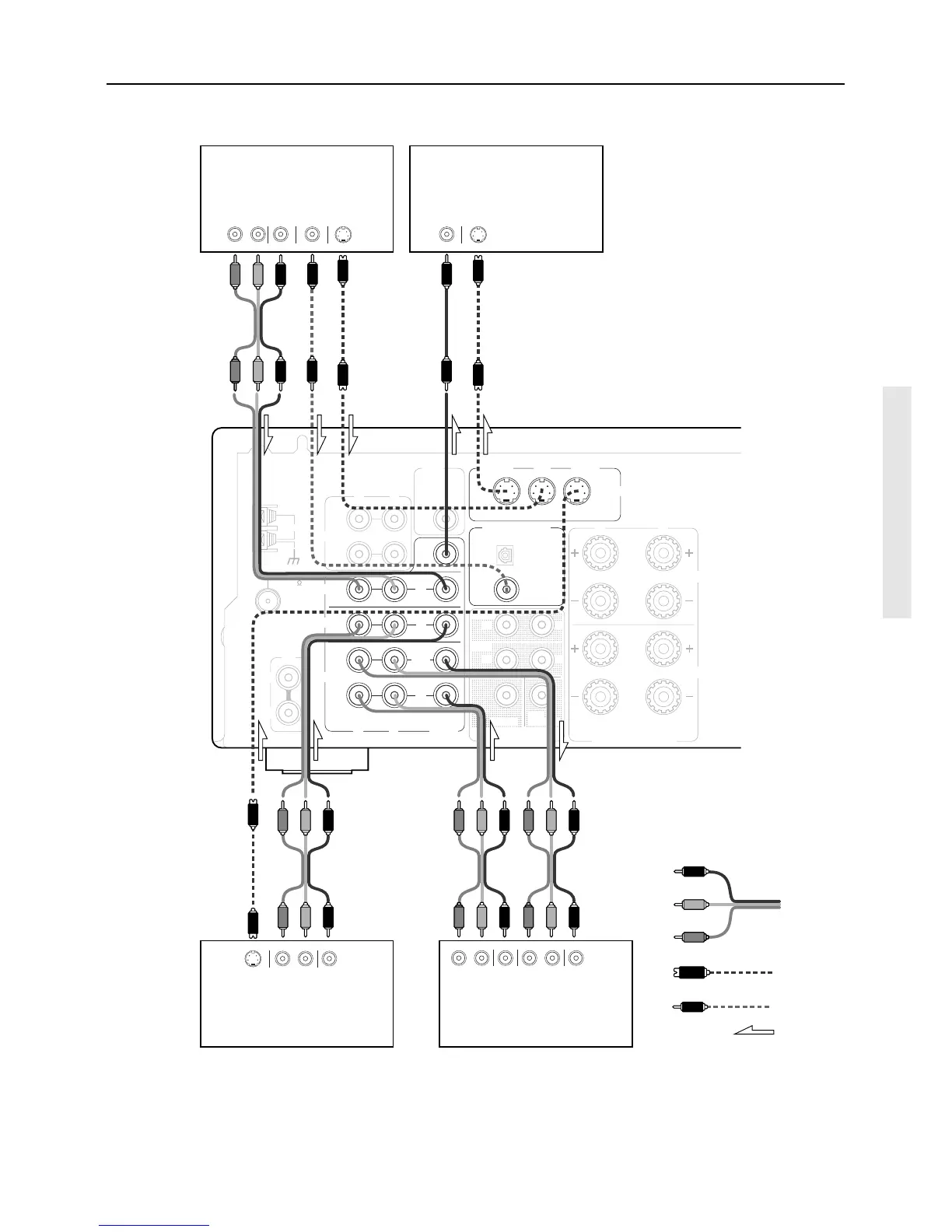

Example of how to connect your equipment
VCR
(VIDEO 2)
TV monitor or Projector
(MONITOR OUT)
Satellite tuner or TV
(VIDEO 1)
DVD player or LD player
(DVD)
Analog signal
Signal flow
Digital signal
S video signal
Coaxial plug
Video
Audio (L)
Audio (R)
Example of video equipment connections
ANTENNA
FM
75
AM
IN
IN
L
L
R
R
FRONT
CENTER
SURR
SUB
WOOFER
RL
COAXIAL
OUT
IN
A
B
R
L
FRONT SPEAKERS
R
L
R
L
IN
OUT
VIDEO
DIGITAL INPUT
MONITOR
OUT
S VIDEO
DVD
VIDEO
1
CD
SUB
WOOFER
PRE OUT
TAPE
DVD
VIDEO 2
VIDEO 1
R
L
OPTICAL
IN
IN
MULTI
CHANNEL INPUT
MONI-
TOR
OUT
DIGITAL
OUT
S VIDEO
OUT
VIDEO
OUT
AUDIO
OUT
VIDEO
OUT
AUDIO
OUT
RL RLLR
LR
VIDEO
IN
AUDIO
IN
S VIDEO
OUT
S VIDEO
IN
VIDEO
OUT
VIDEO
IN
AUDIO
OUT
COAXIAL
S Video plug

Onkyo HT-R490 Specifications

Amplifier Section

continuous average power output (FTC) - 8 ohms	55 watts per channel min. RMS
continuous average power output (FTC) - 6 ohms	70 watts min. RMS
continuous power output (DIN)	75 watts × 5 at 6 ohms
maximum power output (EIAJ)	100 watts × 5 at 6 ohms
total harmonic distortion	0.08% at rated power (Front)
IM distortion	0.08% at rated power (Front)
damping factor	60 at 8 ohms (Front)
input sensitivity and impedance - LINE	200 mV, 50 kohms
input sensitivity and impedance - MULTICHANNEL INPUT (FRONT L/R, SURROUND L/R, CENTER)	200 mV, 50 kohms
input sensitivity and impedance - MULTICHANNEL INPUT (SUBWOOFER)	36 mV, 50 kohms
input sensitivity and impedance - DIGITAL 2 (COAXIAL)	0.5 Vp-p, 75 ohms
output level and impedance - Rec out (TAPE, VIDEO 2)	200 mV, 2.2 kohms
output level and impedance - Pre out (SUBWOOFER)	1 V, 2.2 kohms
frequency response	20 Hz to 100 kHz, +1/–3 dB
RIAA deviation	20 Hz to 20 kHz, ±0.8 dB
tone control - Bass	±10 dB at 50 Hz
tone control - Treble	±10 dB at 10 kHz
signal-to-noise ratio - CD/Tape	100 dB (IHF-A)

Tuner Section

FM tuning range	87.5-108.0 MHz (50 kHz steps)
FM usable sensitivity - Mono	11.2 dBf, 1.0 µV (75 ohms)
FM usable sensitivity - Stereo	17.2 dBf, 2.0 µV (75 ohms)
FM 50 dB quieting sensitivity - Mono	17.2 dBf, 2.0 µV (75 ohms)
FM 50 dB quieting sensitivity - Stereo	37.2 dBf, 2.0 µV (75 ohms)
FM capture ratio	2.0 dB
FM image rejection ratio	40 dB
FM IF rejection ratio	90 dB
FM signal-to-noise ratio - Mono	76 dB
FM signal-to-noise ratio - Stereo	70 dB
FM alternate channel attenuation	55 dB
FM selectivity	50 dB (DIN)
FM AM suppression ratio	50 dB
FM total harmonic distortion - Mono	0.2%
FM total harmonic distortion - Stereo	0.3%
FM frequency response	30 Hz-15 kHz, ±1.0 dB
FM stereo separation	45 dB at 1 kHz
AM tuning range	530-1, 710 kHz (10 kHz steps)
AM usable sensitivity	30 µV
AM image rejection ratio	40 dB
AM IF rejection ratio	40 dB
AM signal-to-noise ratio	40 dB
AM total harmonic distortion	0.7%

General

power supply	AC 120 V, 60 Hz
power consumption	3.4 A
dimensions (W × H × D)	435 × 150 × 339 mm
weight	9.7 kg, 21.4 lbs.
