ADJUSTMENT PROCEDURE-2

IDLING CURRENT ADJUSTMENT

HT-R530

Front side

ID-ID+

P6080

R6040

ID-ID+

P6081

R6041

ID-ID+

P6082

R6042

ID-ID+

P6083

R6043

ID-ID+

P6084

R6044

ID-ID+

P6085

R6045

BIAS

SBL

SBR

ID-

ID+

P6086

R6046

BIAS

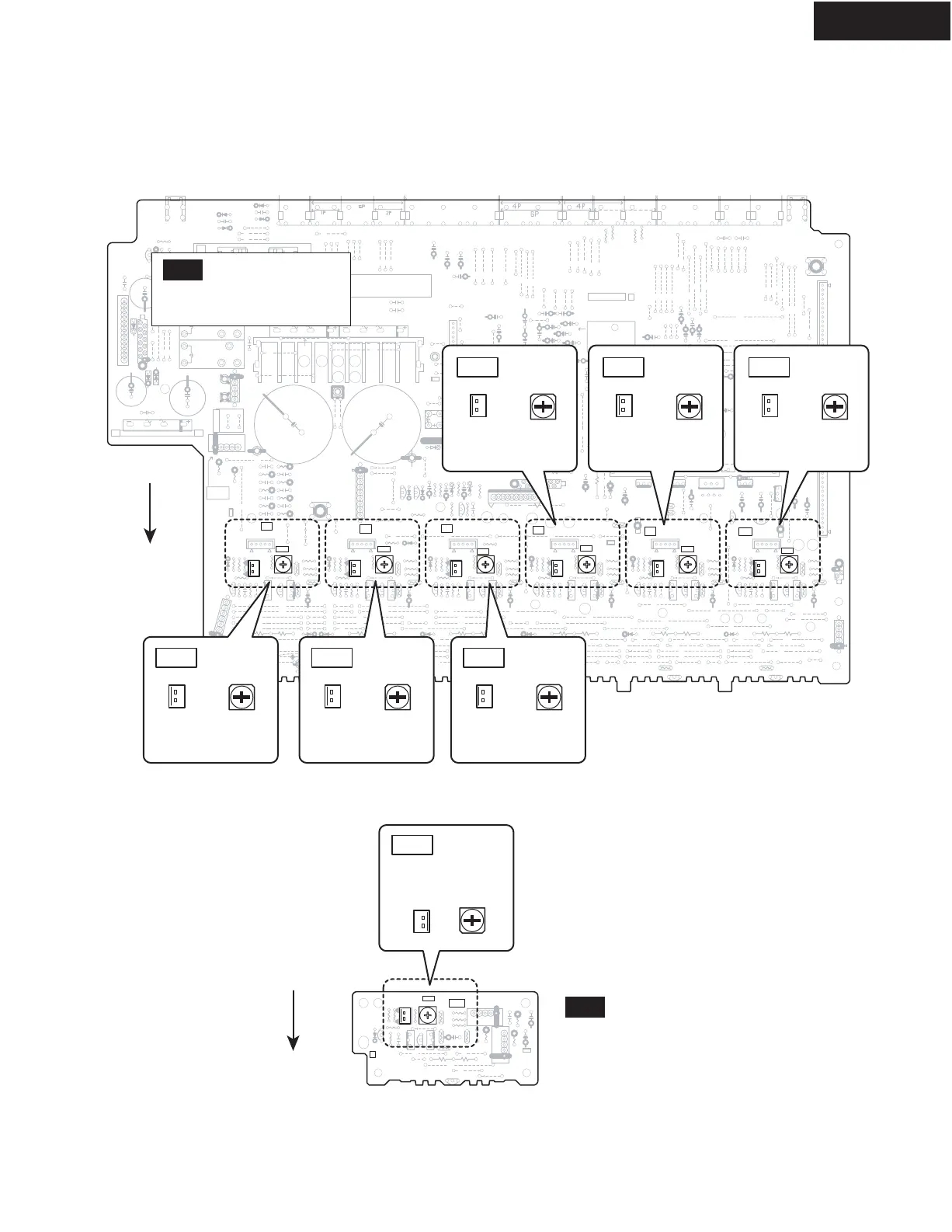

Front side

U05

AMPLIFIER PC BOARD

(NAAF-8523)

U07

SBR AMPLIFIER

PC BOARD

(NAETC-8525)

R6042P6082

ID+

ID-

Trimming

resistor

Test

point

R6041P6081

ID+

ID-

Trimming

resistor

Test

point

R6040P6080

ID+

ID-

Trimming

resistor

Test

point

R6045P6085

ID+

ID-

Trimming

resistor

Test

point

SBL

R6044P6084

ID+

ID-

Trimming

resistor

Test

point

R6043P6083

ID+

ID-

Trimming

resistor

Test

point

R6046

P6086

ID-

ID+

Trimming

resistor

Test

point

SBR

Amplifier Section2
