Connecting the AV Receiver—Continued
With this hookup, you can use your VCR’s tuner to listen to your favorite TV programs via the AV
receiver, useful if your TV has no audio outputs.
• With connection , you can listen to the VCR or DVD/BD recorder even in Zone 2.
• To enjoy Dolby Digital and DTS, use connection or . (To listen in Zone 2 as well, use and , or and
.)
.
Connecting a VCR or DVD/BD Recorder for Playback

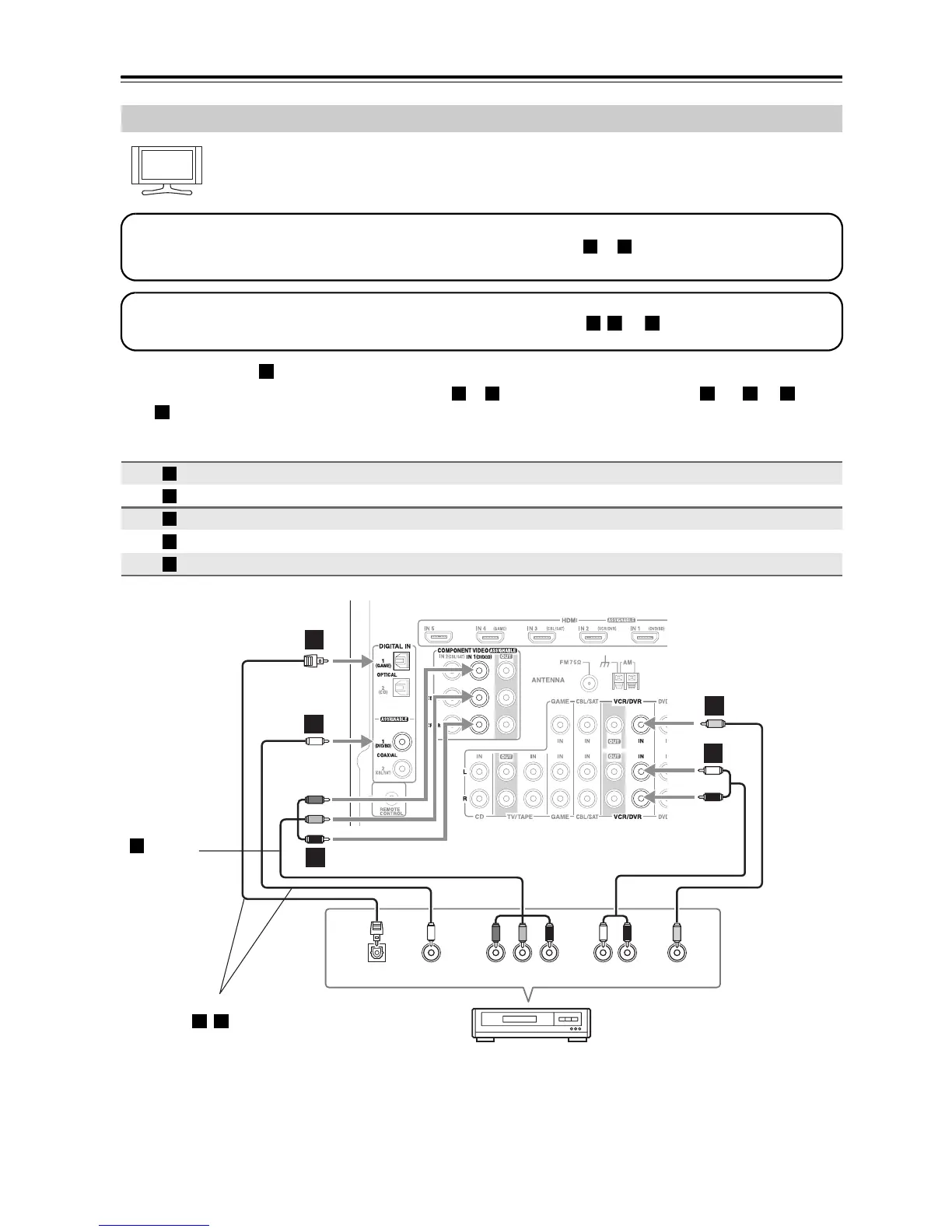

Connection AV receiver Signal flow VCR or DVD/BD recorder
COMPONENT VIDEO IN 1 (DVD/BD) ⇐ Component video output
VCR/DVR IN V ⇐ Composite video output
VCR/DVR IN L/R ⇐ Analog audio L/R output
DIGITAL IN COAXIAL 1 (DVD/BD) ⇐ Digital coaxial output
DIGITAL IN OPTICAL 1 (GAME) ⇐ Digital optical output
Hint!
Step 1: Video Connection
Choose a video connection that matches your VCR or DVD/BD recorder ( or
), and then make the connection.
You must connect the AV receiver to your TV via the same type of connection.
A B
Step 2: Audio Connection
Choose an audio connection that matches your VCR or DVD/BD recorder ( , , or ), and then make the connec-
tion.
a b c
a
b c a b a
c
A
B
a
b
c
YCOAXIAL
OUT
PB
COMPONENT VIDEO OUT
P
R AUDIO
OUT
VIDEO
OUT
LR
OPTICAL
OUT
b
c
A
B
B
a
VCR,
DVD/BD recorder
Connect one or the other
Connection , must be assigned (see page 41)
b c
Connection
must be
assigned
(see
page 40)
