Connecting the AV Receiver—Continued
Notes:
• The AV receiver must be turned on for recording. Recording is not possible while it’s in Standby mode.
• If you want to record directly from your TV or playback VCR to the recording VCR without going through the AV
receiver, connect the TV/VCR’s audio and video outputs directly to the recording VCR’s audio and video inputs. See
the manuals supplied with your TV and VCR for details.
• Video signals connected to composite video inputs can only be recorded via composite video outputs. If your
TV/VCR is connected to a composite video input, the recording VCR must be connected to a composite video output.

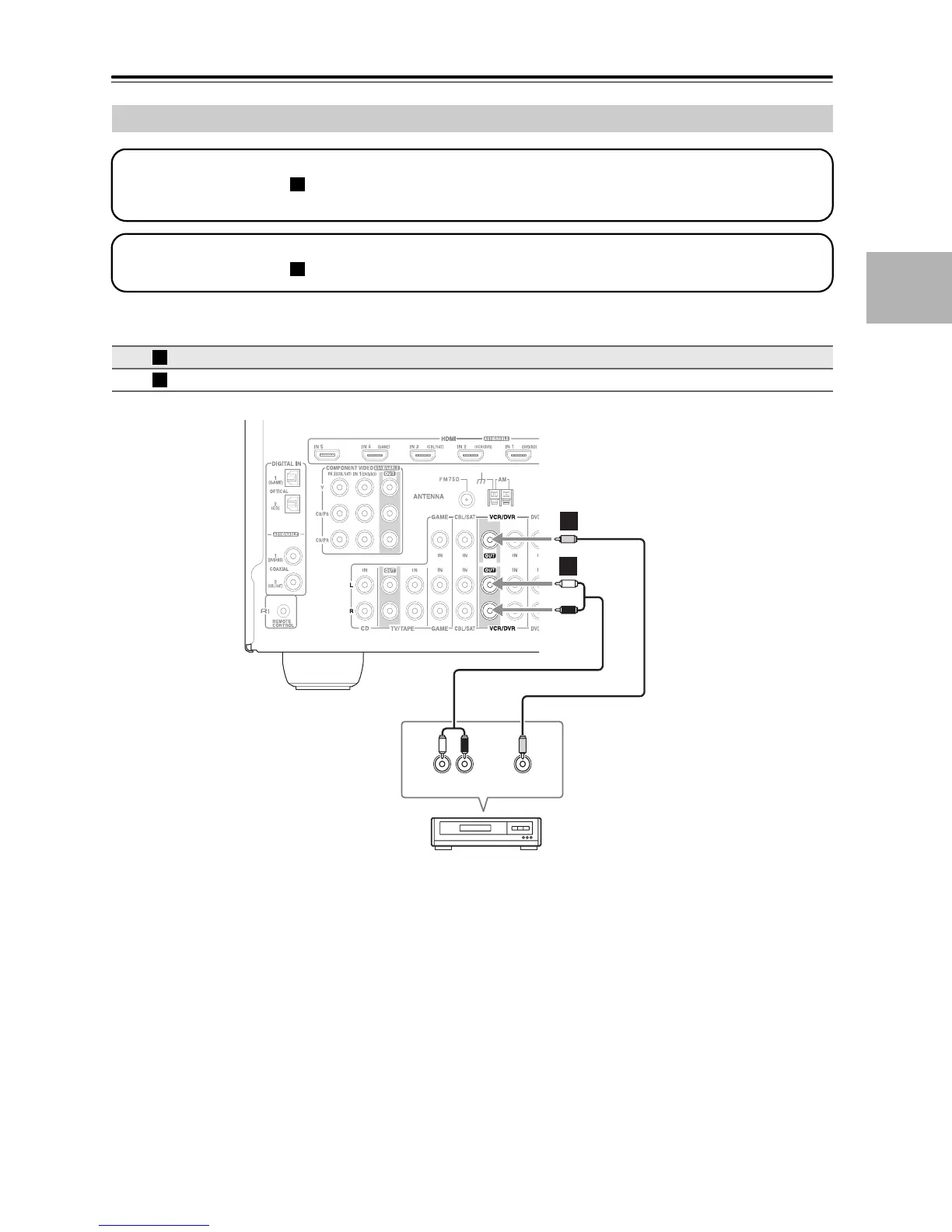

Connecting a VCR or DVD/BD Recorder for Recording
Connection AV receiver Signal flow VCR or DVD/BD recorder
VCR/DVR OUT V
⇒
Composite video input
VCR/DVR OUT L/R
⇒
Analog audio L/R input
Step 1: Video Connection
Make the video connection . The video source to be recorded must be connected to the AV receiver via the same
type of connection.
A
Step 2: Audio Connection
Make the audio connection .
a
A
a
AUDIO
IN
VIDEO
IN
LR
B
A
a
VCR, DVD/BD
recorder
To Next Page
