Index to Parts and Controls
For operational instructions, refer to the pages indicated in brackets.

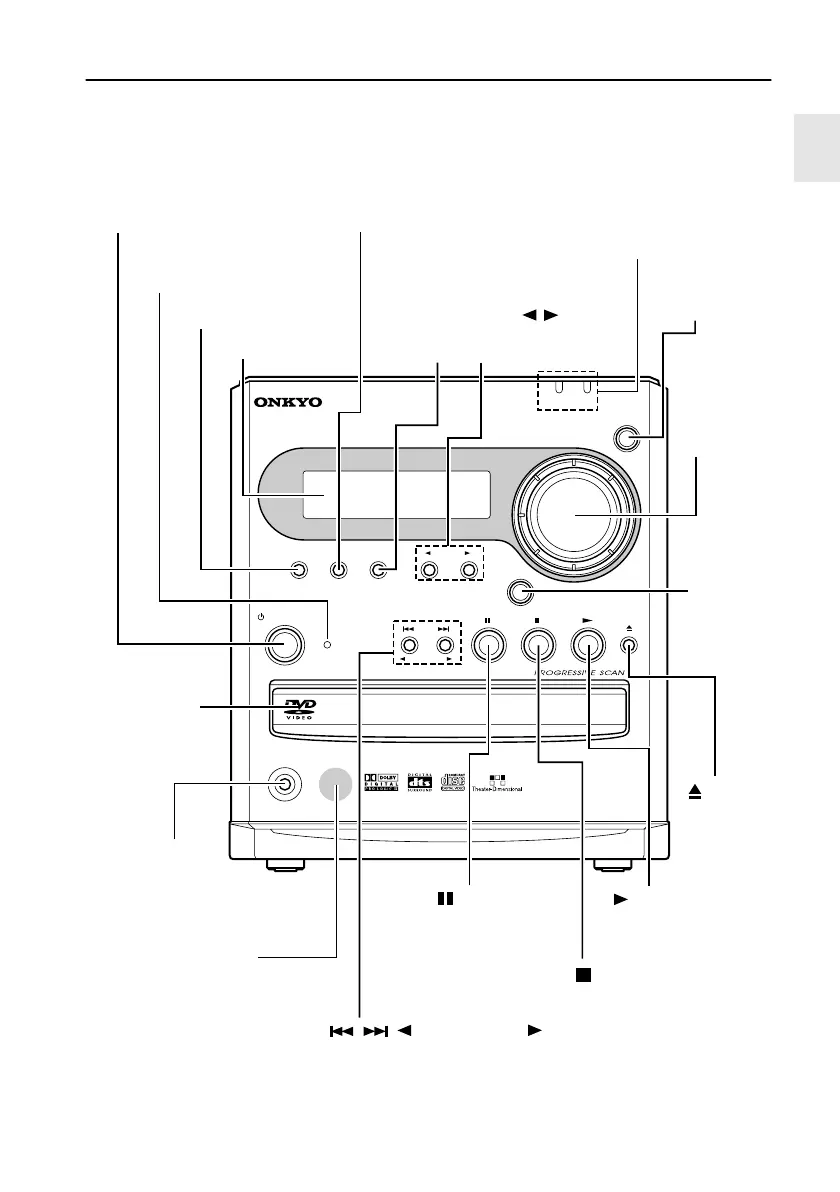

Front panel
Depending on the country in which you purchased your controller, the logos printed on the front
panel may be different to those shown here.
DV
D
AV
CONTROLLER
PDR
-
15 5
INPUT
STEREO
PHONES
MASTER
VOLUME
MUTING
T
-
D
T
-
D
PROGRESSIVE
SCAN
SURROUND
MODE
PRESET
MEMORY
ACOUSTIC
CONTROL
STANDBY
TUNING
/
PRESET
STANDBY
/
ON
STANDBY/ON button
Tur ns on the power to the
PDR-155 or places the unit in
Standby mode.
STANDBY indicator
Lights up in Standby mode.
T-D/STEREO button (page 72)
Display (page 20)
SURROUND
MODE button
Selects a sur-
round mode.
PRESET
MEMORY
button
Assigns the
radio station.
INPUT / buttons
Selects an input source
other than DVD.
PROGRESSIVE SCAN/
Lights up when [Component Video] is set to [Pro-
gressive]. (progressive scan-compatible NTSC
color TV or monitor required).
T-D (Theater-Dimensional) indicator
Lights up in Theater-Dimensional surround mode.
MUTING button
Mutes the sound
temporarily.
MASTER
VOLUME
control
Adjusts the
sound level.
ACOUSTIC
CONTROL
button
Boosts the
super bass/
high range
sound
button
Opens and
closes the
disc tray.
button
Starts or resumes
playback.
button
Press once to
pause playback.
Press again to
resume playback.
/, TUNING PRESET buttons
Locate a point or the top of a track. Alternatively, they
select preset channels and set the tuning frequency.
Remote control sensor
Point the remote control-
ler toward the remote sen-
sor to operate the PDR-
155. (page 18)
PHONES jack
This is a standard
stereo jack for con-
necting stereo head-
phones. (page 47)
Disc tray
To load a disc,
place the disc in the
disc tray with its
label side facing up.
button
Stops playback.
