28
Connecting Your Components—Continued
•With the basic connection, you can play and record with the recorder.
•To connect the recorder digitally for playback purposes, use connections and or and .

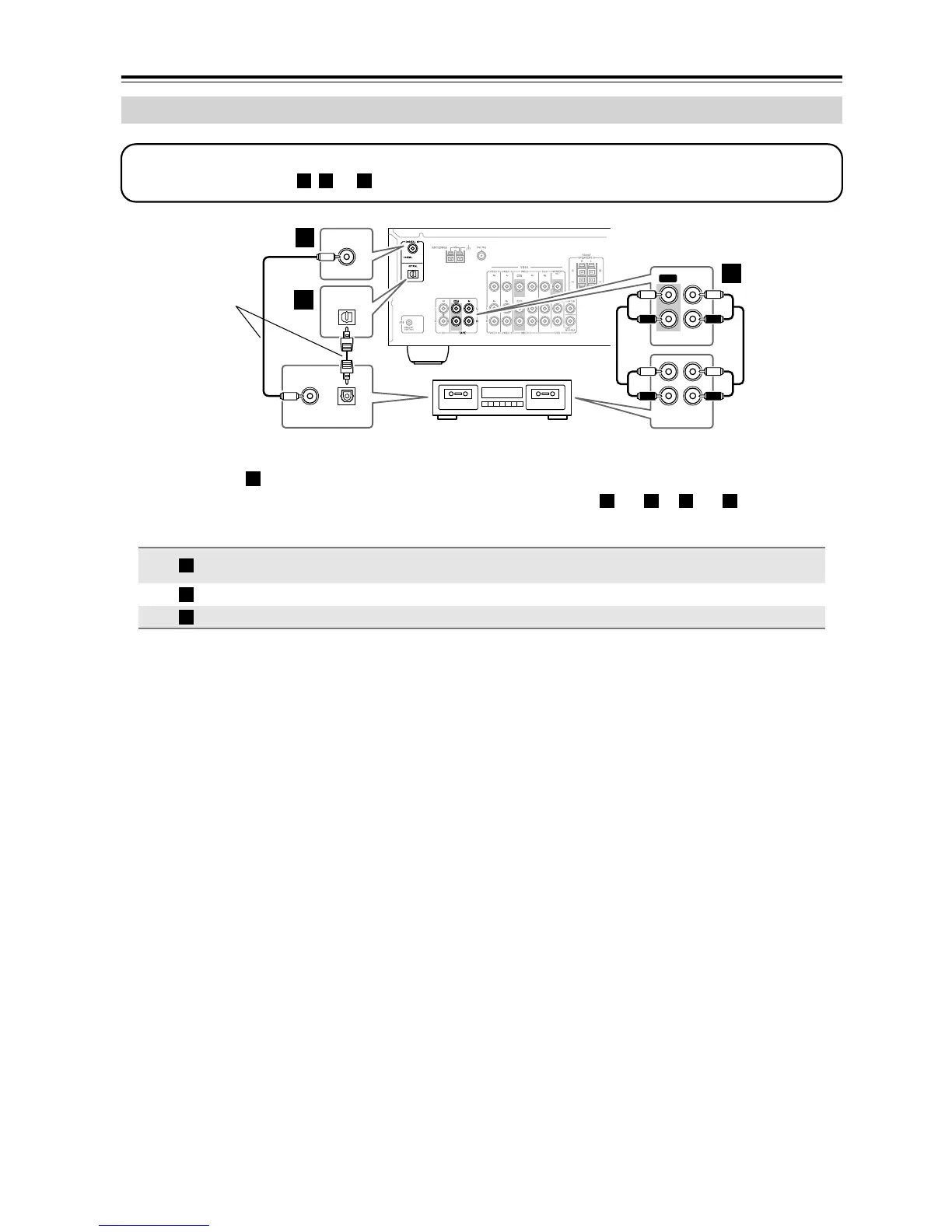

Connecting a Cassette, CDR, MiniDisc, or DAT Recorder
Connection TX-SR303/303E Signal flow Cassette/CDR/MD/DAT recorder
TAPE IN L/R
TAPE OUT L/R
Analog audio L/R output
Analog audio L/R input
DIGITAL IN COAXIAL
Digital coaxial output
DIGITAL IN OPTICAL
Digital optical output
OUT
REC PLAY
IN OUT
L
R
L
R
IN
TAPE
L
R
OPTICAL
OPTICAL
OUT
DIGITAL IN
COAXIAL
COAXIAL
OUT
Step 1:
Choose a connection type ( , , or ) that matches the recorder, and then make the connection.
a b c
a
b
c
Cassette recorder, CDR,
etc.
Connect one
or the other
a
a b
a
c
a
b
c
