Onkyo TX-SR500/E - Packing Procedures

Front
Left
Front
Left
SP-B
/
Zone 2
Left
SP-B
/
Zone 2
Left
Surround
Right
Surround
Right
Surround Back
Right
Surround Back
Right
Zone 2
Right
Zone 2
Right
Front Left
Front Left
SP-B
/
Zone 2
Left
SP-B
/
Zone 2
Left
Front
Right
Front
Right
SP-B
/
Zone 2
Right
SP-B
/
Zone 2
Right
Front Right
Front Right
SP-B
/
Zone 2
Right
SP-B
/
Zone 2
Right
Surround Right
Surround Right
Center Center
Center
Center
Surround
Left
Surround
Left
Surround Left
Surround Left
Surround Back Right
Surround Back Right
Zone 2 Right
Zone 2 Right
Surround Back
Left
Surround Back
Left
Zone 2
Left
Zone 2
Left
Surround Back Left
Surround Back Left
Zone 2 Left
Zone 2
Left
1
2
3
Speaker Cable
REF.NO. PART NO. DESCRIPTION
71 29092044 Pad
72 29100034-1A 850*650,Poly bag
73 29110149 Tape, cellophane
74 29110148 PP tape
75 29100201 350*200*W250,Polybag
76 29053869C Carton box <D>
29053870C Carton box <B> <P>
29053871C Carton box <S>
29053872B Carton box <G>
29053893B Carton box <B> <C/A/T>
77 29363052 Label EAN <B><P>
29363053 Label EAN <S>
29363055 Label UPC <D/C>
29363099 Label EAN <B><A/T>
29363100 Label EAN <G>
REF.NO. PART NO. DESCRIPTION
79 29100097-1A 350*250,Poly bag for power supply cord <O>
81 29363059A Label,cable
83 29343286A Instruction manual E
84 29343288A Instruction manual GDSW <P>
29343290A Instruction manual CT/CS <T/R/Q>
85 29343289A Instruction manual FSI <P/C>
86 29343287A Instruction manual,digest <D>
87 24140478 RC-478M,Remote controller <D/C>
24140479 RC-479S,Remote controller <O>
88 3010054 UM-3,Two batteries
89 232140 NMA-3057,AM loop antenna
90 292115 FM antenna <P/A/T/K/Q/R>
292142 FM antenna <D/C>
91 25065462 YAE21-0237,Antenna adaptor <T/A/R/Q/K>
92 25056005 CV-K-1,Conversion plug <T>
93 29365090A Warranty card <D>
Note:
<B>: Black model only
<G>: Golden model only
<S>: Silver model only
<D>: 120V model only
<P>: European model only
<T>: Worldwide model only
<K>: Korean model only
<A>: Australian model only
<R>: Chinese model only
<C>: Canadian model only
<Q>: Hongkong model only
<O>: Except 120V model
NOTE: THE COMPONENTS IDENTIFIED BY MARK !
ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE ONLY WITH
PART NUMBER SPECIFIED.
!
TX-SR500/E

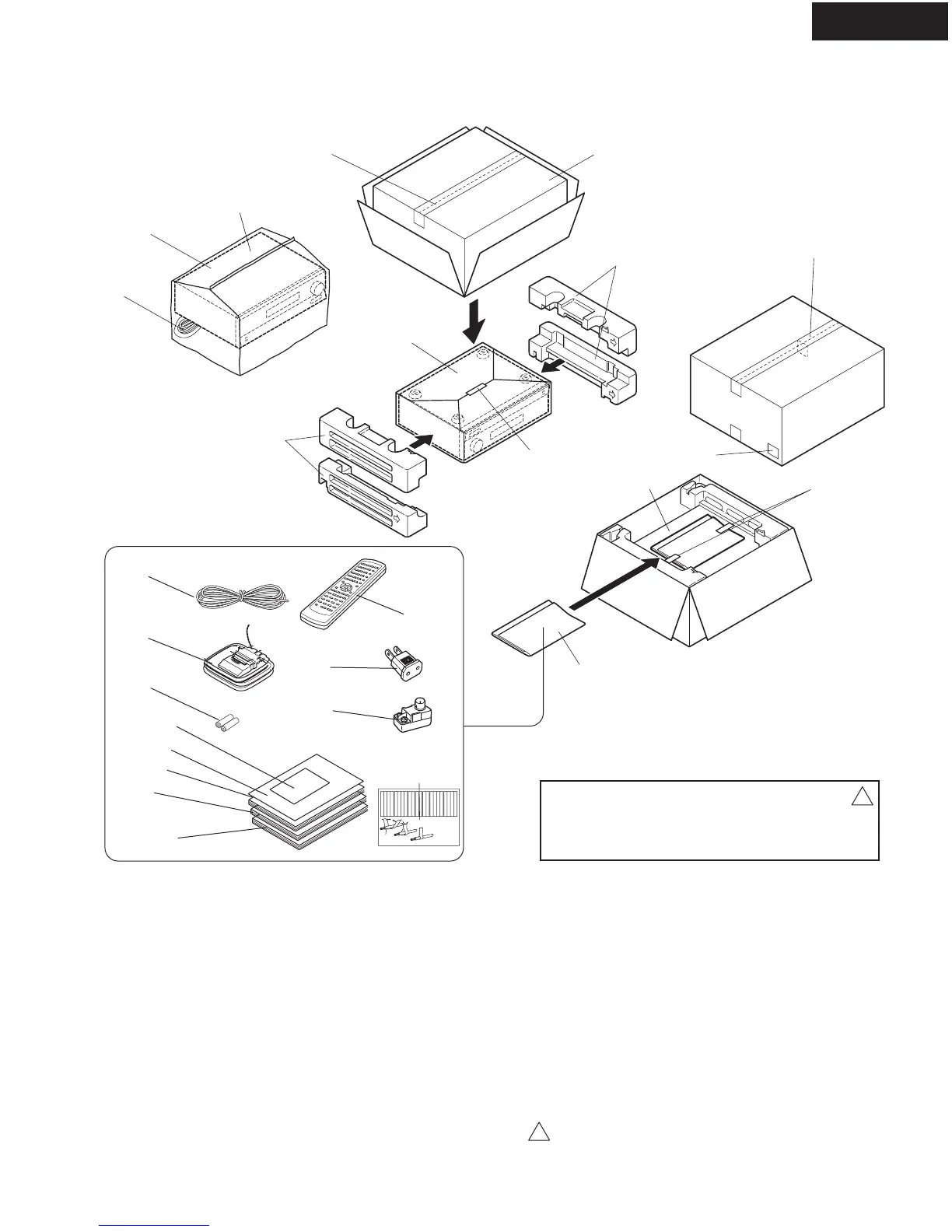

PACKING PROCEDURES
Accessary bag
84
83
88
89
90
85
93
86
71
71
72
73
73
75
81
76
77
74
74
87
91
92
79
Put the label 81 between
page 2 and page 3 of
instruction manual E.
Bottom
Top
Top
43
