TX-SR674/674E/8467
IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS -52
Q8501 : SiI9033 (HDMI Receiver)
TERMINAL DESCRIPTION (1/5)

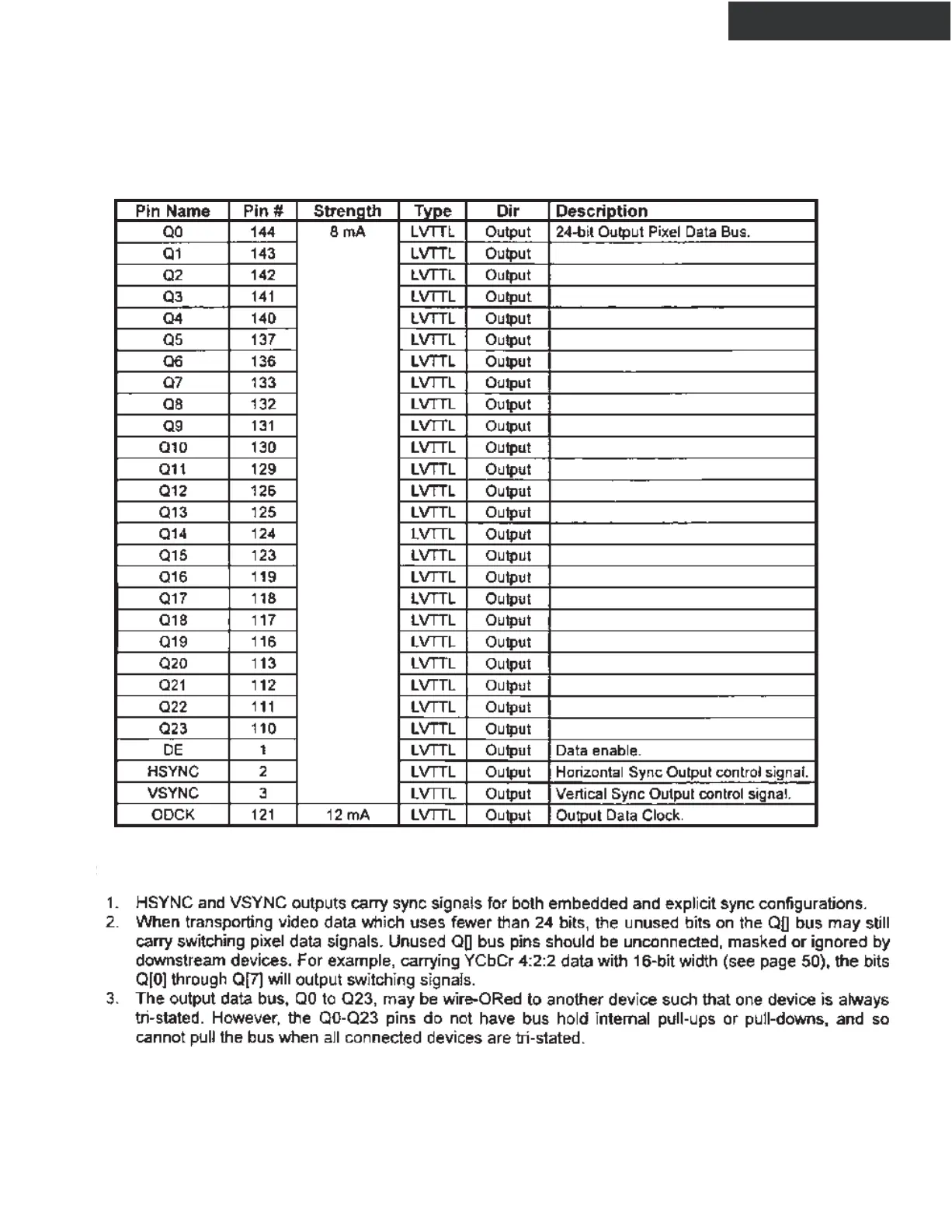

Digital Video Output Pins
