TX-SR674/674E/8467
IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS -53
Q8501 : SiI9033 (HDMI Receiver)

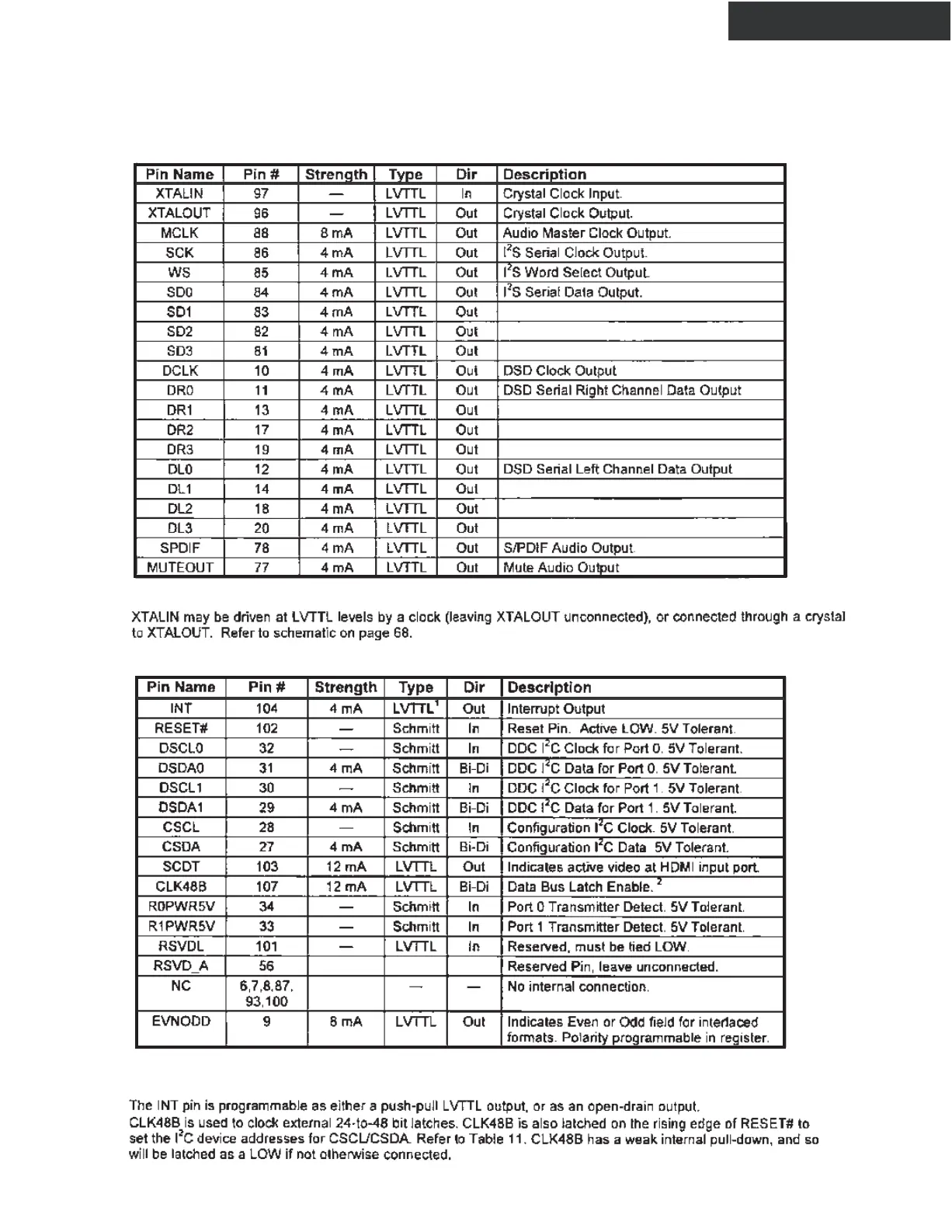

TERMINAL DESCRIPTION (2/5) Digital Audio Output Pins
TERMINAL DESCRIPTION (3/5) Configuration/Programming Pins
