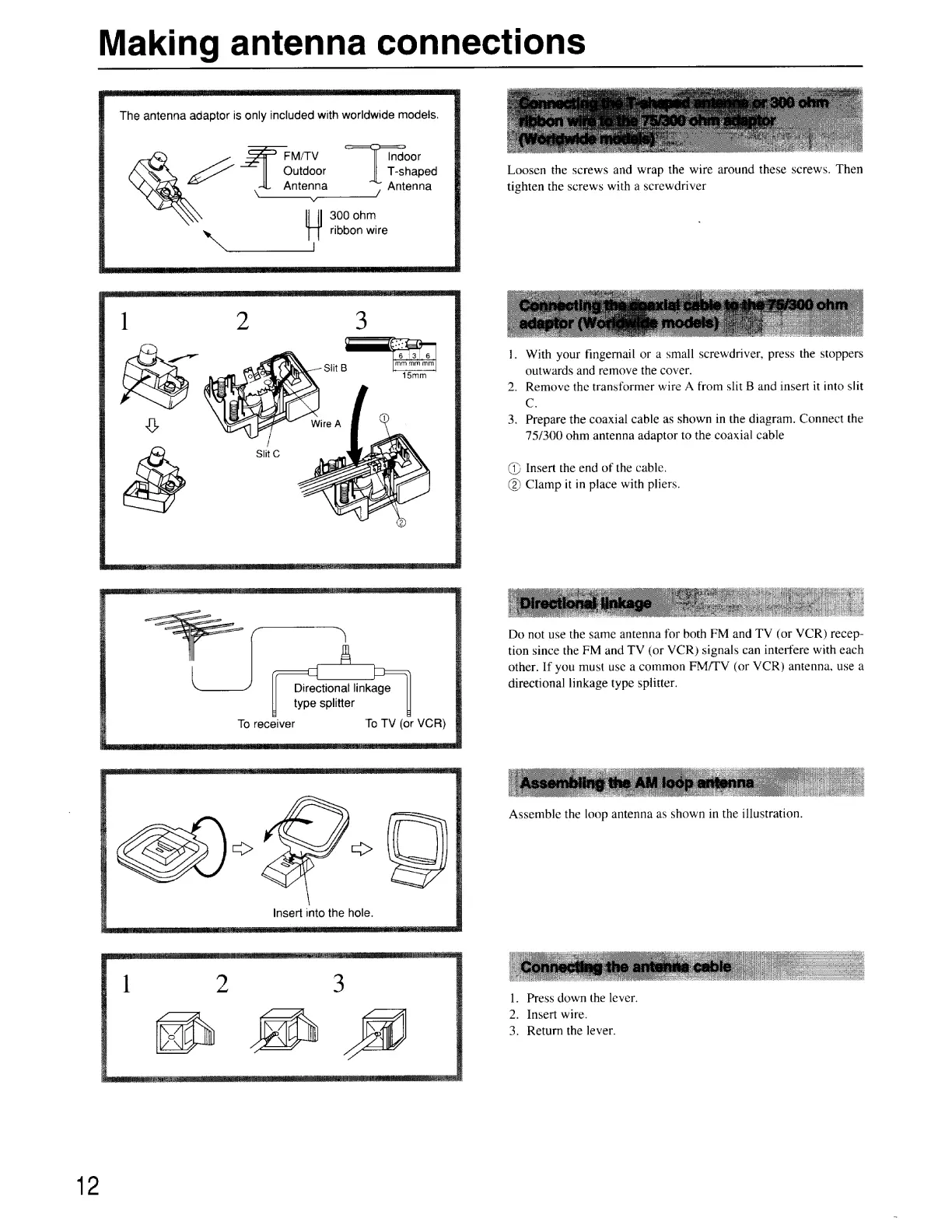

Making antenna connections
The antenna adaptor is only included with worldwide models.
FM/TV Indoor
Outdoor T-shaped Loosen the screws and wrap the wire around these screws. Then
Antenna Antenna tighten the screws with a screwdriver
300 ohm
~ ribbon wire
1. With your fingernail or a small screwdriver, press the stoppers
outwards and remove the cover.
2. Remove the transformer wire A from slit B and insert it into slit
C.
3. Prepare the coaxial cable as shown in the diagram. Connect the
75/300 ohm antenna adaptor to the coaxial cable
1) Insert the end of the cable.
(2) Clamp it in place with pliers.
Do not use the same antenna for both FM and TV (or VCR) recep-
tion since the FM and TV (or VCR) signals can interfere with each
other. If you must use a common FM/TV (or VCR) antenna, use a
directional linkage type splitter.
Directional linkage
type splitter
To receiver To TV (or VCR)
Assemble the loop antenna as shown in the illustration.
Insert into the hole.
1. Press down the lever.
2. Insert wire.
3. Return the lever.
12
