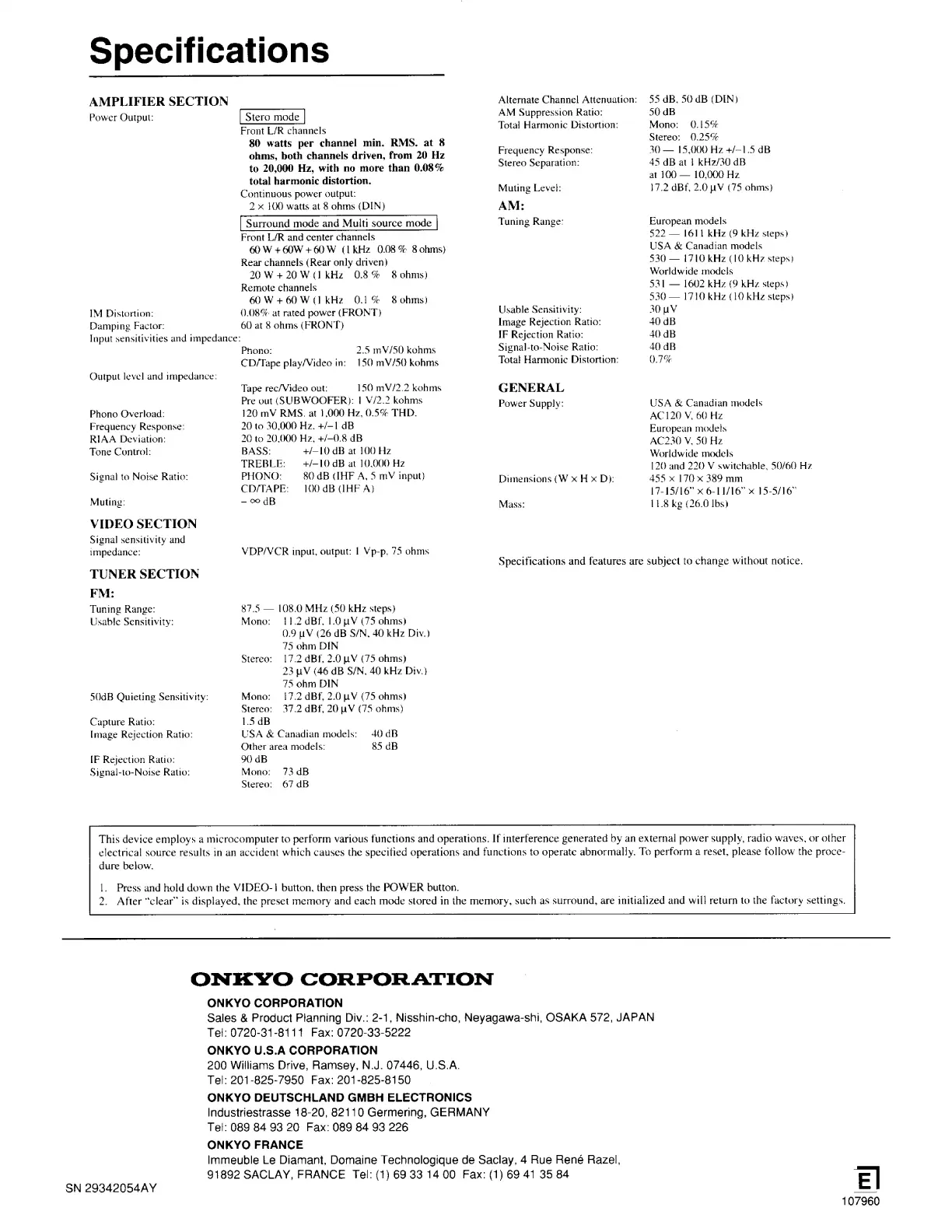

Onkyo TX-SV525

Specifications
AMPLIFIER SECTION
Power Output:
IM Distortion:
Damping Factor:
Input sensitivities and impedance:
Qutput level and impedance:
Phono Overload:
Frequency Response:
RIAA Deviation:
Tone Control:
Signal to Notse Ratio:
Muting:
VIDEO SECTION
Signal sensitivity and
impedance:
TUNER SECTION
FM:
Tuning Range:
Usable Sensitivity:
50dB Quieting Sensitivity:
Capture Ratio:
Image Rejection Ratio:
[F Rejection Ratio:
Front L/R channels
80 watts per channel min. RMS. at 8
ohms, both channels driven, from 20 Hz
to 20,000 Hz, with no more than 0.08%
total harmonic distortion.
Continuous power output:
2 x 100 watts at 8 ohms (DIN)
Surround mode and Multi source mode
Front L/R and center channels
60 W +60W +60W (1 kHz 0.08% 8 ohms)
Rear channels (Rear only driven)
20W+20W(1kHz 0.8% 8 ohms)
Remote channels
60 W+60W (1 kHz 0.1% 8 ohms)
0.08% at rated power (FRONT)
60 at 8 ohms (FRONT)
Phono: 2.5 mV/50 kohms
CD/Tape play/Video in: 150 mV/50 kohms
Tape rec/Video out: 150 mV/2.2 kohms
Pre out (SUBWOOFER): | V/2.2 kohms
120 mV RMS. at 1,000 Hz, 0.5% THD.
20 to 30,000 Hz. +/-1 dB
20 to 20,000 Hz, +/-0.8 dB
BASS: +/—10 dB at 100 Hz
TREBLE: = +/—10 dB at 10,000 Hz
PHONO: 80 dB (IHF A, 5 mV input)
CD/TAPE: — 100 dB (IHF A)
—ocodB
VDP/VCR input, output: | Vp-p, 745 ohms
$7.5 — 108.0 MHz (50 kHz steps)
Mono: 11.2 dBf, 1.0 (75 ohms)
0.9 wV (26 dB S/N, 40 kHz Dw.)
75 ohm DIN
Stereo: 17.2 dBf, 2.0 pV (75 ohms)
23 uV (46 dB S/N, 40 kHz Div.)
75 ohm DIN
Mono: = 17.2 dBf, 2.0 uv (75 ohms)
Stereo: 37.2 dBf, 20 WV (75 ohms)
1.5 dB
USA & Canadian models: 40 dB
Other area models: 85 dB
90 dB
Alternate Channel Attenuation:
AM Suppression Ratio:
Total Harmonic Distortion:
Frequency Response:
Stereo Separation:
Muting Level:
AM:
Tuning Range:
Usable Sensitivity:
Image Rejection Ratio:
IF Rejection Ratio:
Signal-to-Noise Ratio:
Total Harmonic Distortion:
GENERAL
Power Supply:
Dimensions (W x H x D):
Mass:
Specifications and features are subject to change without notice.
55 dB, 50 dB (DIN)
50 dB
Mono: 0.15%
Stereo: 0.25%
30 — 15,000 Hz +/-1.5 dB
45 dB at | kHz/30 dB
at 100 — 10,000 Hz
17.2 dBf, 2.0 UV (75 ohms)
European models
522 — 1611 kHz (9 kHz steps)
USA & Canadian models
530 — 1710 kHz (10 kHz steps)
Worldwide models
531 — 1602 kHz (9 kHz steps)
530 — 1710 kHz (10 kHz steps)
30 nV
40 dB
40 dB
40 dB
0.7%
USA & Canadian models
AC120 V, 60 Hz
European models
AC230 V, 50 Hz
Worldwide models
120 and 220 V switchable, 50/60 Hz
455 x 170 x 389 mm
17-15/16" x 6-11/16” x 15-5/16"
11.8 kg (26.0 Ibs)
Signal-to-Noise Ratio: Mono: 73dB
Stereo: 67 dB
This device employs a microcomputer to perform various functions and operations. If interference generated by an external power supply, radio waves, or other
electrical source results in an accident which causes the specified operations and functions to operate abnormally. To perform a reset, please tollow the proce-
dure below.
1. Press and hold down the VIDEO-1 button, then press the POWER button.
2. After ‘clear’ is displayed, the preset memory and each mode stored in the memory, such as surround, are initialized and will return to the factory settings.
