Onkyo TX-SV525

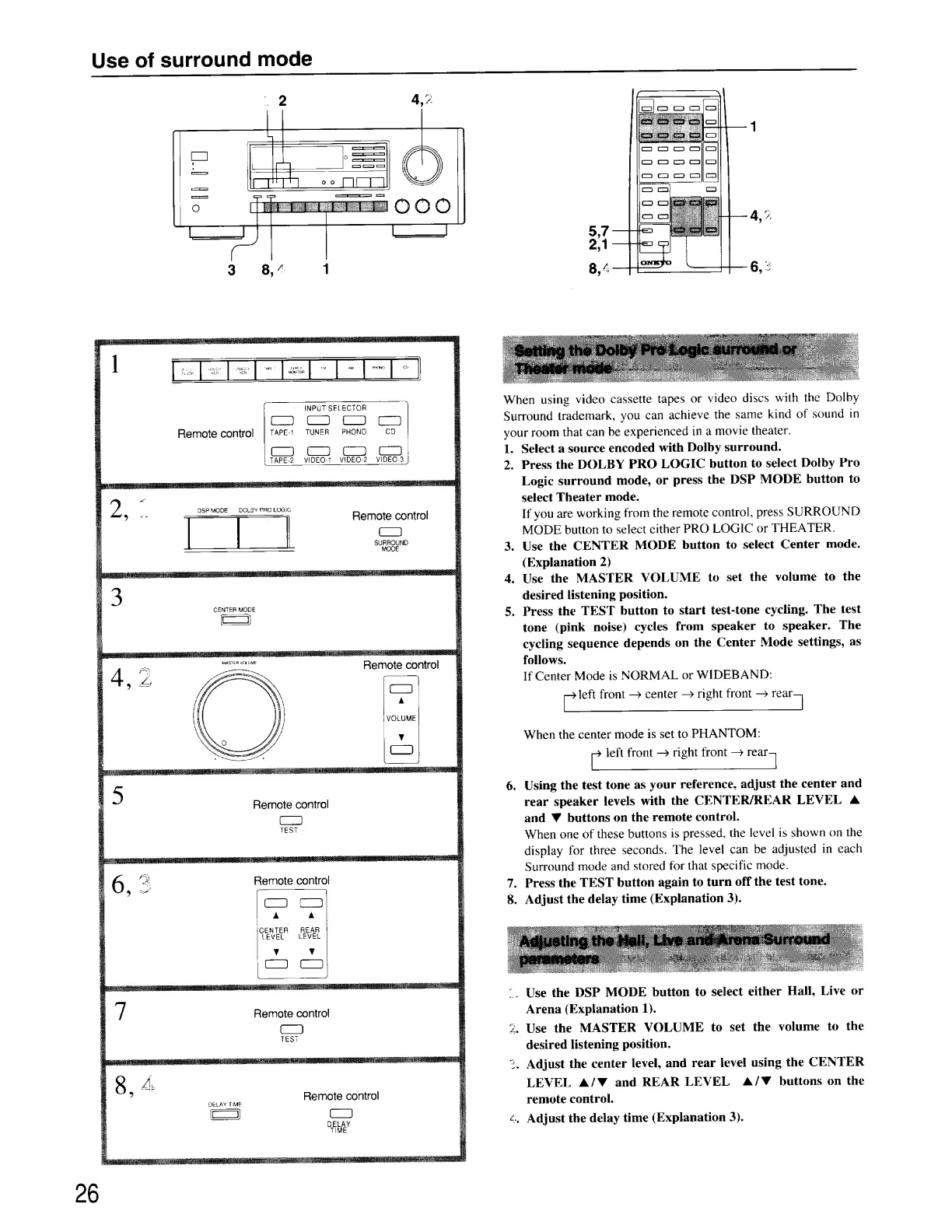

Use of surround mode
INPUT SELECTOR
CU CO CD
Remote
control
|
TAPE-1
TUNER
PHONO
cD
VIDEG-1 VIDEO-2 VIDEO-3
; DSP MODE DOLBY PRO LOGIC
<~ Remote control
Cc)
SURROUND
MODE
CENTER MODE
Remote control
VOLUME
[2
Remote control
Co
TEST
Remote control
Remote control
CT)
TEST
Remote control
Co)
DELAY
TIME
DELAY TIME
26
When
using
video
cassette
tapes
or
video
discs
with
the
Dolby
Surround trademark, you can achieve the same kind of sound in
your room that can be experienced in a movie theater.
1.
2.
Select a source encoded with Dolby surround.
Press the DOLBY PRO LOGIC button to select Dolby Pro
Logic surround mode, or press the DSP MODE button to
select Theater mode.
If you are working from the remote control, press SURROUND
MODE button to select either PRO LOGIC or THEATER.
Use the CENTER MODE button to select Center mode.
(Explanation 2)
Use the MASTER VOLUME to set the volume to the
desired listening position.
Press the TEST button to start test-tone cycling. The test
tone (pink noise) cycles from speaker to speaker. The
cycling sequence depends on the Center Mode settings, as
follows.
If Center Mode is NORMAL or WIDEBAND:
P left front > center > night front > rear
When the center mode is set to PHANTOM:
i left front > right front > rear
Using the test tone as your reference, adjust the center and
rear speaker levels with the CENTER/REAR LEVEL 4A
and W buttons on the remote control.
When one of these buttons is pressed, the level is shown on the
display for three seconds. The level can be adjusted in each
Surround mode and stored for that specific mode.
Press the TEST button again to turn off the test tone.
Adjust the delay time (Explanation 3).
é.,
Use the DSP MODE button to select either Hall, Live or
Arena (Explanation 1).
Use the MASTER VOLUME to set the volume to the
desired listening position.
Adjust the center level, and rear level using the CENTER
LEVEL A/V and REAR LEVEL A/V buttons on the
remote control.
Adjust the delay time (Explanation 3).
