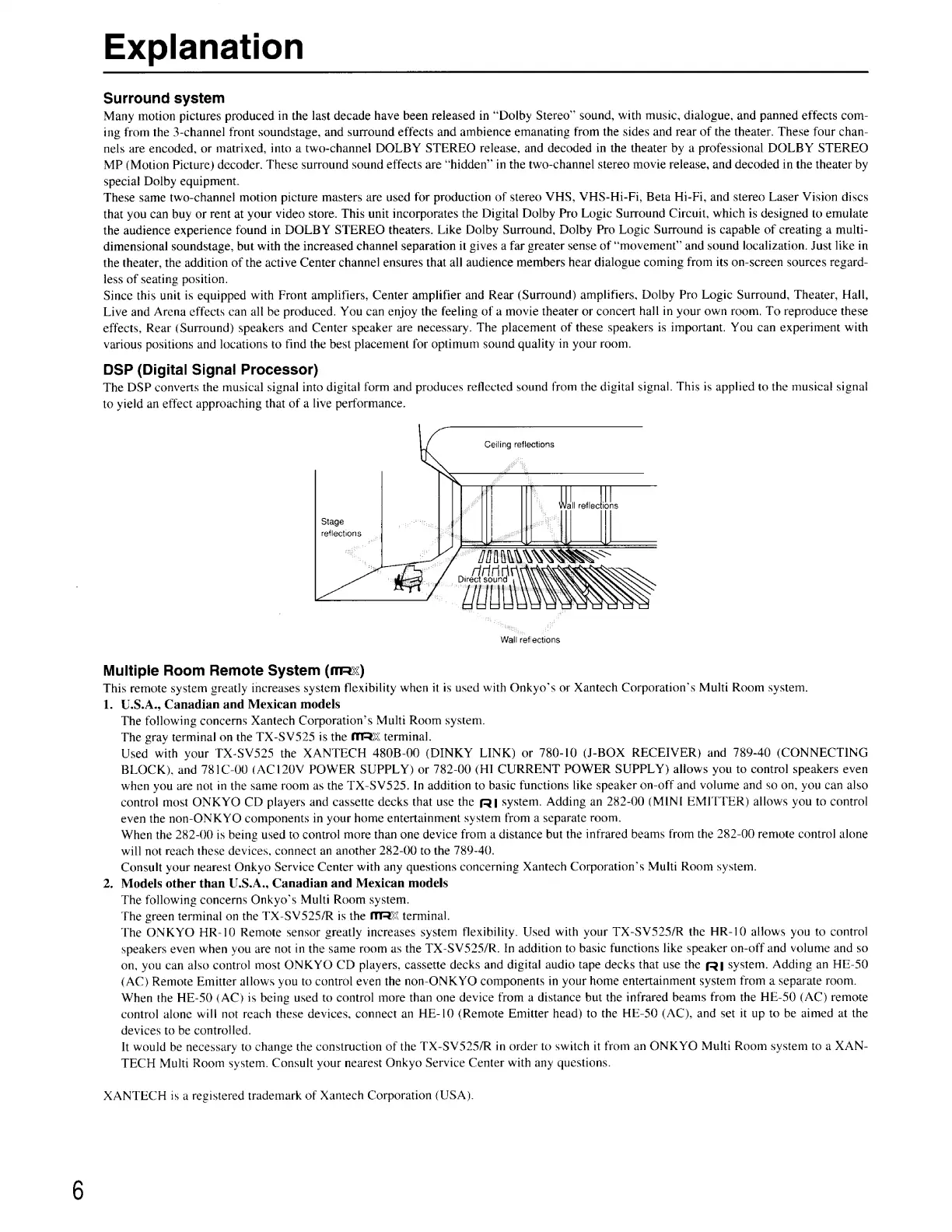

Explanation
Surround system
Many motion pictures produced in the last decade have been released in “Dolby Stereo” sound, with music, dialogue, and panned effects com-
ing from the 3-channel front soundstage, and surround effects and ambience emanating from the sides and rear of the theater. These four chan-
nels are encoded, or matrixed, into a two-channel DOLBY STEREO release, and decoded in the theater by a professional DOLBY STEREO
MP (Motion Picture) decoder. These surround sound effects are “hidden” in the two-channel stereo movie release, and decoded in the theater by
special Dolby equipment.
These same two-channel motion picture masters are used for production of stereo VHS, VHS-Hi-Fi, Beta Hi-Fi, and stereo Laser Vision discs
that you can buy or rent at your video store. This unit incorporates the Digital Dolby Pro Logic Surround Circuit, which is designed to emulate
the audience experience found in DOLBY STEREO theaters. Like Dolby Surround, Dolby Pro Logic Surround is capable of creating a multi-
dimensional soundstage, but with the increased channel separation it gives a far greater sense of “movement” and sound localization. Just like in
the theater, the addition of the active Center channel ensures that all audience members hear dialogue coming from its on-screen sources regard-
less of seating position.
Since this unit is equipped with Front amplifiers, Center amplifier and Rear (Surround) amplifiers, Dolby Pro Logic Surround, Theater, Hail,
Live and Arena effects can all be produced. You can enjoy the feeling of a movie theater or concert hall in your own room. To reproduce these
effects, Rear (Surround) speakers and Center speaker are necessary. The placement of these speakers is important. You can experiment with
various positions and locations to find the best placement for optimum sound quality in your room.
DSP (Digital Signal Processor)
The DSP converts the musical signal into digital form and produces reflected sound from the digital signal. This 1s apphed to the musical signal
to yield an effect approaching that of a live performance.
Ceiling reflections
4 all reflections
Stage
reflections
Wall reflections
Multiple Room Remote System (mR)
This remote system greatly increases system flexibility when it is used with Onkyo’s or Xantech Corporation's Multi Room system.
1. U.S.A., Canadian and Mexican models
The following concerns Xantech Corporation’s Mult: Room system.
The gray terminal on the TX-SV525 is the (TREX terminal.
Used with your TX-SV525 the XANTECH 480B-00 (DINKY LINK) or 780-10 (J-BOX RECEIVER) and 789-40 (CONNECTING
BLOCK), and 781C-00 (ACI20V POWER SUPPLY) or 782-00 (HI CURRENT POWER SUPPLY) allows you to control speakers even
when you are not in the same room as the TX-SV525. In addition to basic functions like speaker on-off and volume and so on, you can also
control most ONKYO CD players and cassette decks that use the yy system. Adding an 282-00 (MINI EMITTER) allows you to control
even the non-ONK YO components in your home entertainment system from a separate room.
When the 282-00 is being used to control more than one device from a distance but the infrared beams from the 282-00 remote control alone
will not reach these devices, connect an another 282-00 to the 789-40.
Consult your nearest Onkyo Service Center with any questions concerning Xantech Corporation’s Multi Room system.
2. Models other than U.S.A., Canadian and Mexican models
The following concerns Onkyo’s Multi Room system.
The green terminal on the TX-SV525/R is the MIRX terminal.
The ONKYO HR-10 Remote sensor greatly increases system flexibility. Used with your TX-SV525/R the HR-10 allows you to control
speakers even when you are not in the same room as the TX-SV525/R. In addition to basic functions like speaker on-off and volume and so
on, you can also control most ONKYO CD players, cassette decks and digital audio tape decks that use the gQy system. Adding an HE-50
(AC) Remote Emitter allows you to control even the non-ONK YO components in your home entertainment system from a separate room.
When the HE-50 (AC) is being used to control more than one device from a distance but the infrared beams from the HE-50 (AC) remote
control alone will not reach these devices, connect an HE-10 (Remote Emitter head) to the HE-50 (AC), and set it up to be aimed at the
devices to be controlled.
It would be necessary to change the construction of the TX-SV525/R in order to switch it from an ONKYO Multi Room system to a XAN-
TECH Multi Room system. Consult your nearest Onkyo Service Center with any questions.
