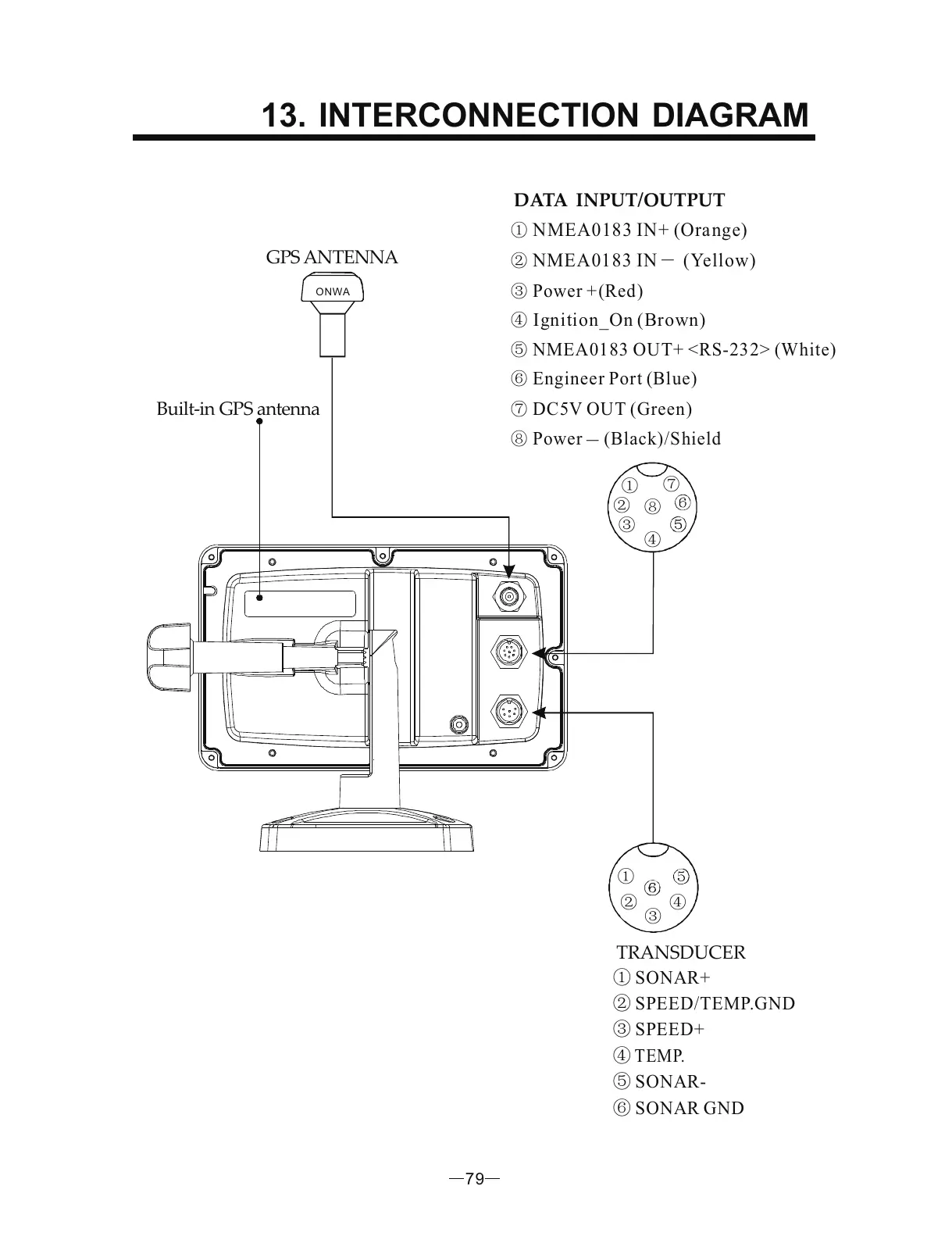

13. INTERCONNECTION DIAGRAM
ĺ
Ľ
Ĺ
ĸ
ķ
ľ
ķ NMEA0183 IN+ (Orange)
ĸˉ NMEA0183 IN (Yellow)
Ĺ Power +(Red)
Ļ NMEA0183 OUT+ <RS-232> (White)
ļ Engineer Port (Blue)
Ľ DC5V OUT (Green)
ľ
ˉ
Power (Black)/Shield
Ignition_On (Brown) ĺ
ĺ
Ĺ
ĸ
ķ
ķ SONAR+
ĸ SPEED/TEMP.GND
Ĺ SPEED+
Ļ SONAR-
ļ SONAR GND
TEMP. ĺ
ONWA
GPS ANTENNA
TRANSDUCER
DATA INPUT/OUTPUT
Built-in GPS antenna
