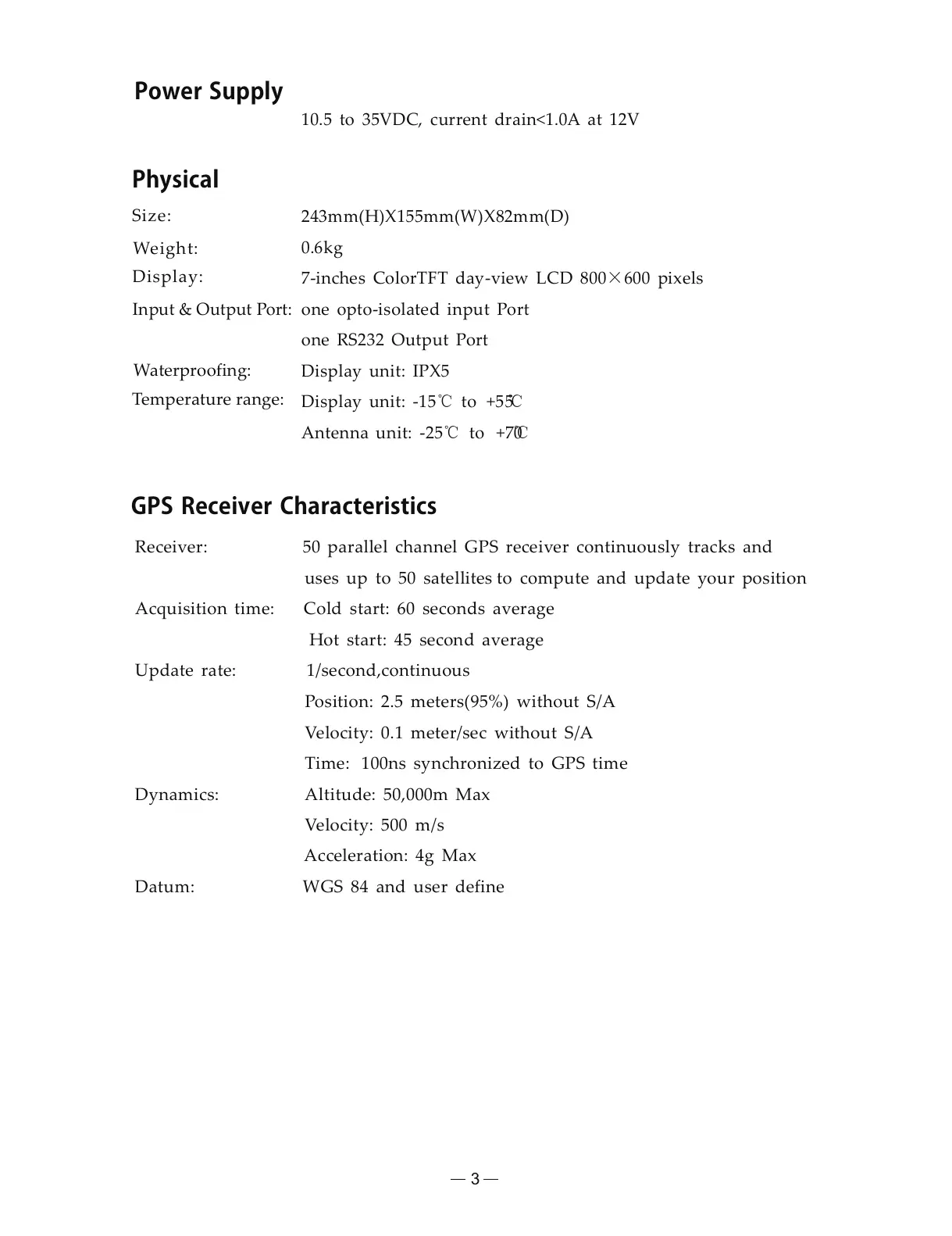

3
10.5 to 35VDC, current drain<1.0A at 12V
243mm(H)X155mm(W)X82mm(D)
0.6kg
7-inches ColorTFT day-view LCD 800 600 pixelsh
one opto-isolated input Port
one RS232 Output Port
Display unit: IPX5
Display unit: -15 to +55ćć
Antenna unit: -25 to +70 ćć
PowerSupply
Size:
Weight:
Display:
Input & Output Port:
Waterproofing:
Temperature range:
Physical
GPSReceiverCharacteristics
Receiver: 50 parallel channel GPS receiver continuously tracks and
uses up to 50 satellites to compute and update your position
Acquisition time: Cold start: 60 seconds average
Hot start: 45 second average
Update rate: 1/second,continuous
Position: 2.5 meters(95%) without S/A
Velocity: 0.1 meter/sec without S/A
Time: 100ns synchronized to GPS time
Dynamics: Altitude: 50,000m Max
Velocity: 500 m/s
Acceleration: 4g Max
Datum: WGS 84 and user define
