INSTALLING CORE SERIES BOARDS IN E2 ENCLOSURE
1. Mount
8-Port
in
upper
right
corner
of
enclosure
by
snapping
board
standoffs
into
holes
in
back
of
enclosure
2. Mount
Core
Board
with
the
USB
and
Ethernet
ports
facing
up
as
shown
in
the
diagram,
and
hook
the
tabs
on
into
the
holes
in
the
enclosure
and
slide
to
the
left
to
lock
in
place
3. Connect
Core
Board
to
8-Port
with
included
USB
cable

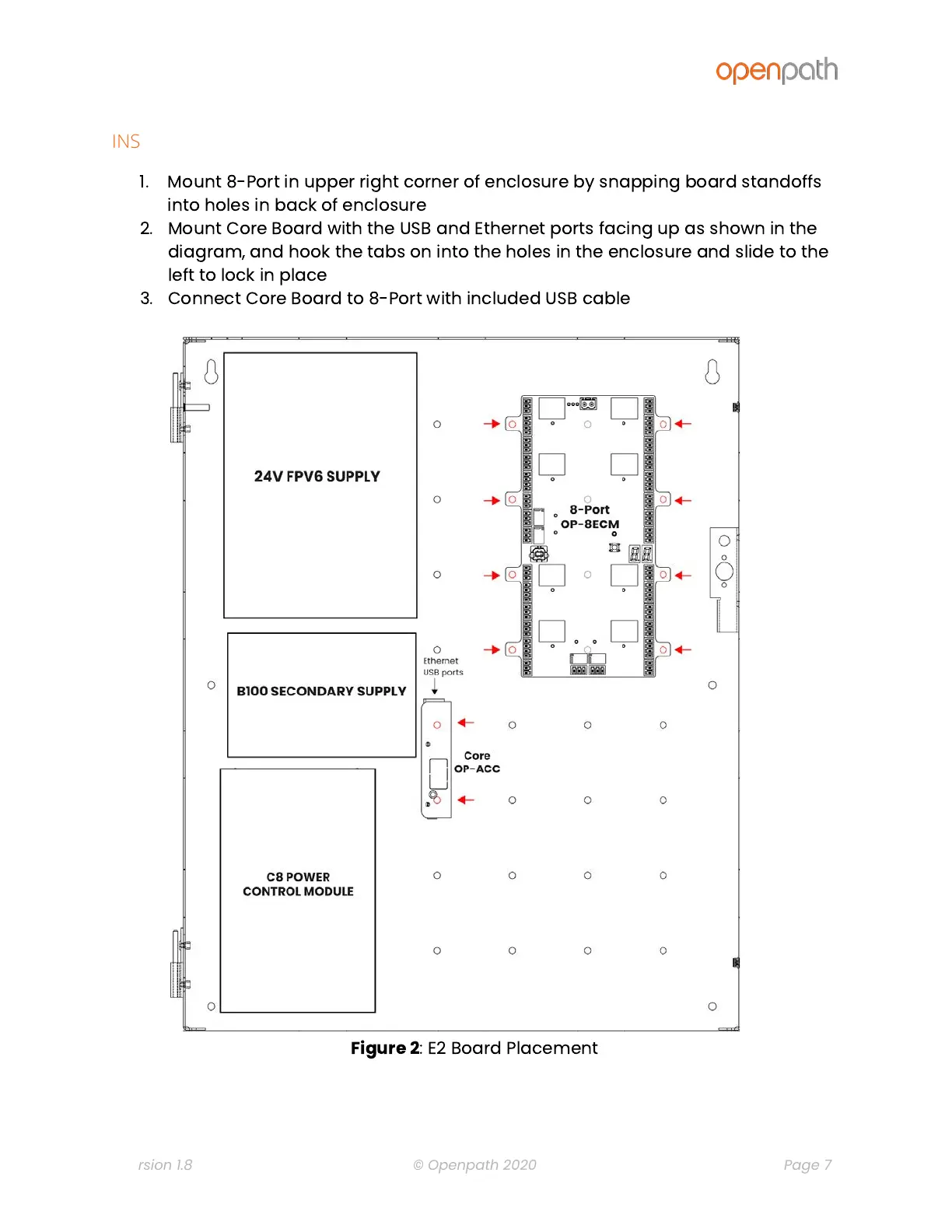

Figure
2
:
E2
Board
Placement
Version 1.8
© Openpath 2020
Page 7
