INSTALLING CORE SERIES BOARDS IN E1 ENCLOSURE
1. Mount
4-Port
in
upper
corner
of
enclosure
by
snapping
board
standoffs
into
holes
in
back
of
enclosure
2. Mount
Core
Board
below
4-Port,
perpendicular
to
back
of
enclosure,
by
hooking
tabs
into
holes
in
back
of
enclosure
3. Mount
Elevator/IO
Board
(if
included)
below
the
Core
Board
using
6-32
screws
(insert
screws
from
back
of
enclosure)
with
USB
port
on
the
left
4. Connect
Core
Board
to
4-Port
Board
with
included
USB
cable.
Connect
Core
Board
to
Elevator/IO
Board
with
additional
USB
cable.

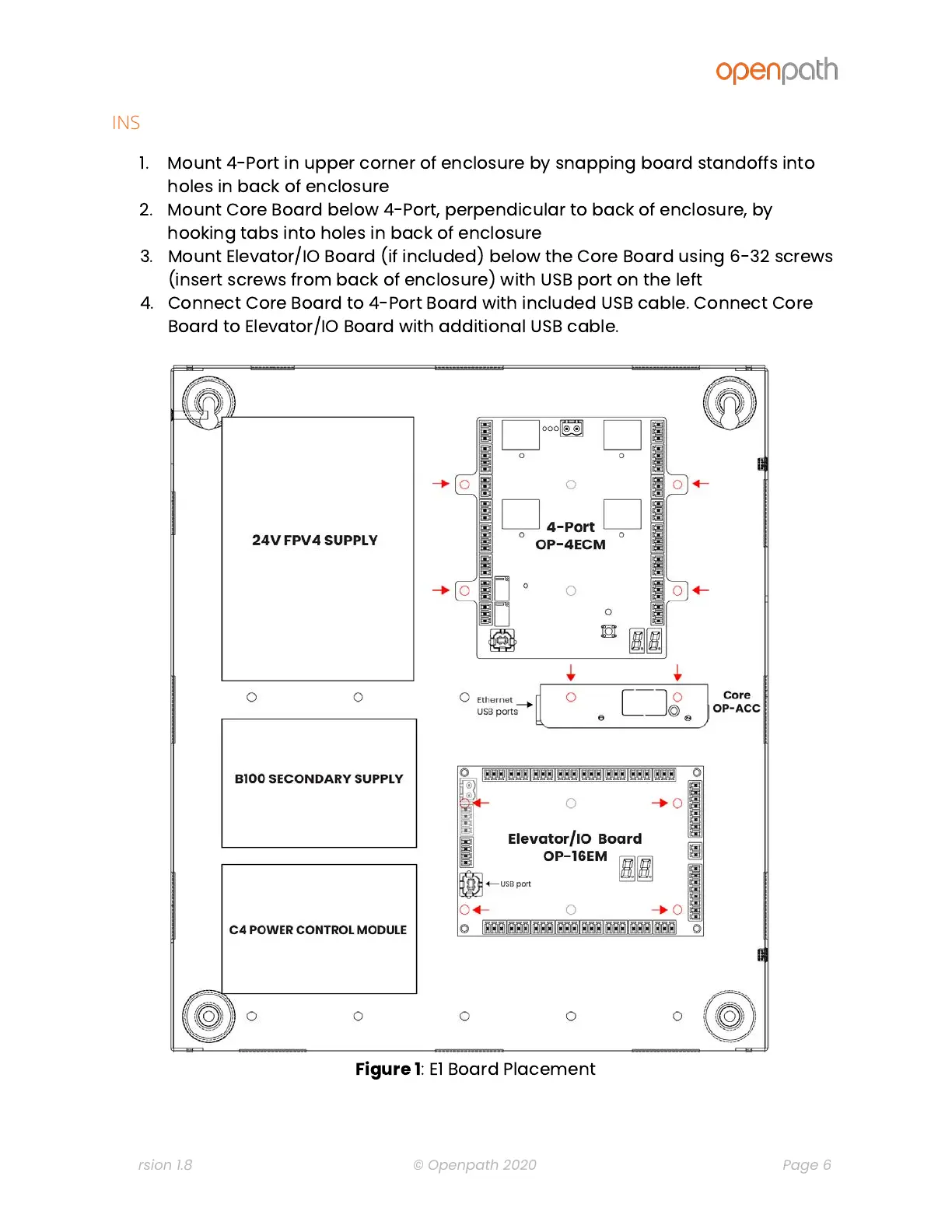

Figure
1
:
E1
Board
Placement
Version 1.8
© Openpath 2020
Page 6
