Skew
Skew is a term used to identify when a document is misaligned when scanned.
Typically, a skewed document prevents the scanned image from being read
properly.
Document skew is determined by the angle in which an item enters the
scanner. The angle is calculated by a set of LED transmit and receiver parts
that detect when one sensor is uncovered for a while. If the angle is greater
than 2 degrees, then the system will jam for "too skewed". If it jams for 5
degrees or more, then the MICR section should be checked and documents
remove.
To scan documents into the system:
1 Press Go on the Run screen.
2 Place the first document onto the conveyor as shown in Figure 10.

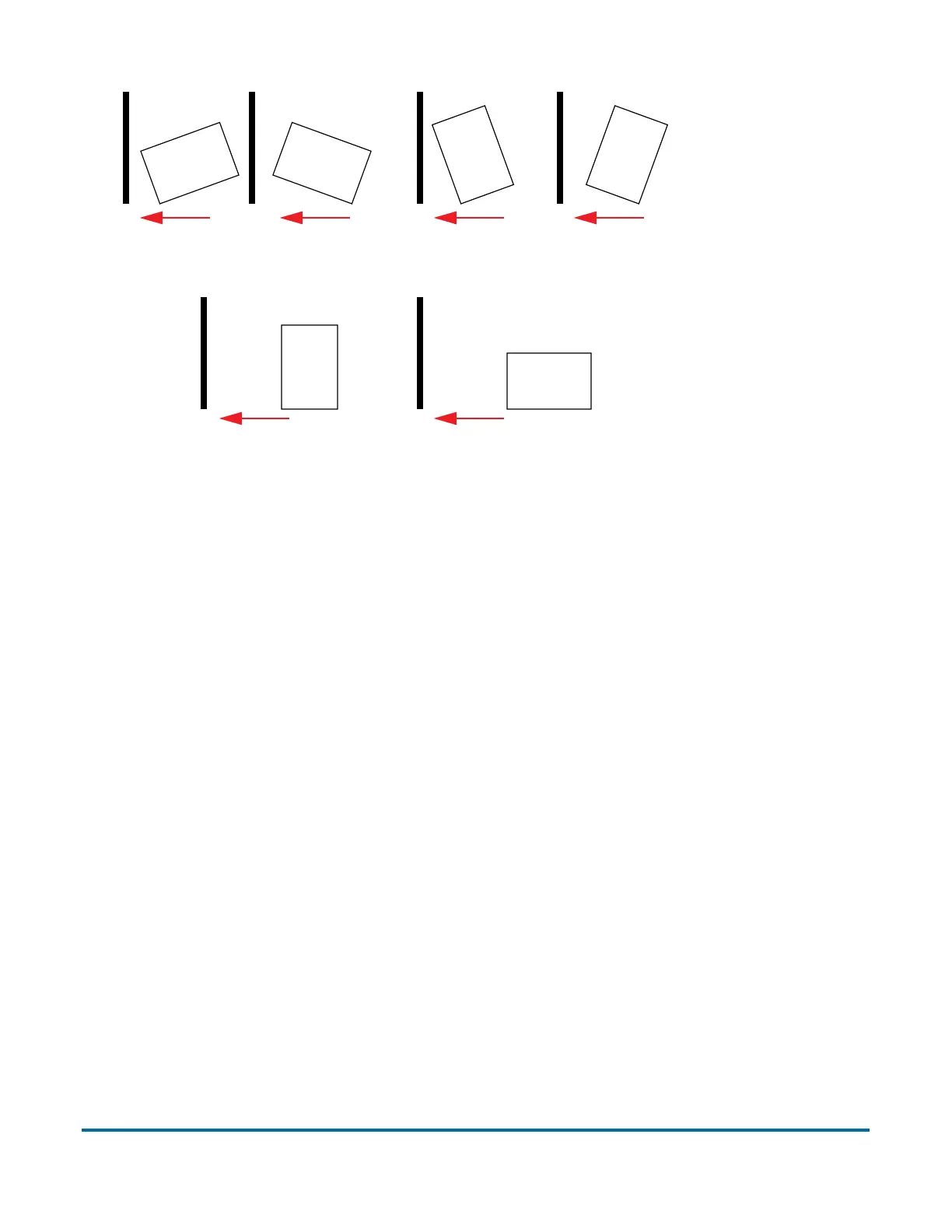

WRONG - In these 4 examples, the documents are dropped
RIGHT - Documents should be as aligned as possible
too close to the feeder to be justified
as they enter the feeder
