68 Operational Maintenance
DS2200 User Manual - OPEX Corporation use only - not for distribution

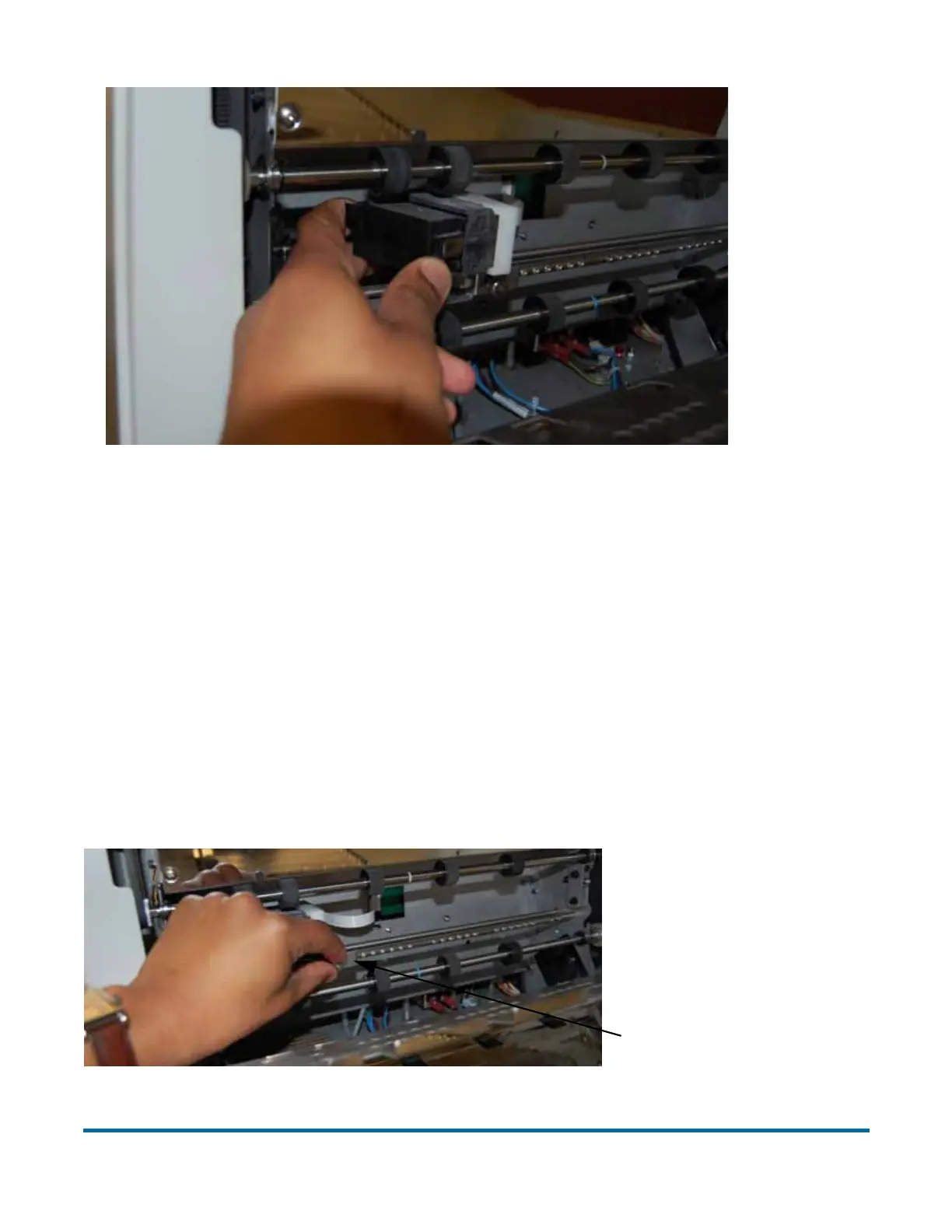

2 Remove the cartridge.
3 Insert the new cartridge by tipping the front end of the cartridge in first, and
then pushing in the rear of the cartridge until it “clicks” into place.
Adjusting the Printer Carriage Position
You can adjust the vertical print position on documents by moving the printer
carriage. The printer carriage is fixed to a shaft with detents that position the
printer so it sprays ink through the holes in the paper guide. A thumb screw
holds the printer in the detents. If you do not position the printer in a detent, the
thumb screw sticks out, preventing you from closing the paper guide.
To adjust the carriage position, loosen the thumb screw, slide the carriage to a
new detented position on the shaft, and then retighten the thumb screw.
Loosen thumb screw
to move carriage
along detent shaft
