Maintenance 119
Falcon+ Operator Manual
OPEX Corporation
Upper Stacker Fingers
Assembly
The upper stacker fingers are shipped pre-
assembled, but can come apart easily. Here is
how to reattach the two components.

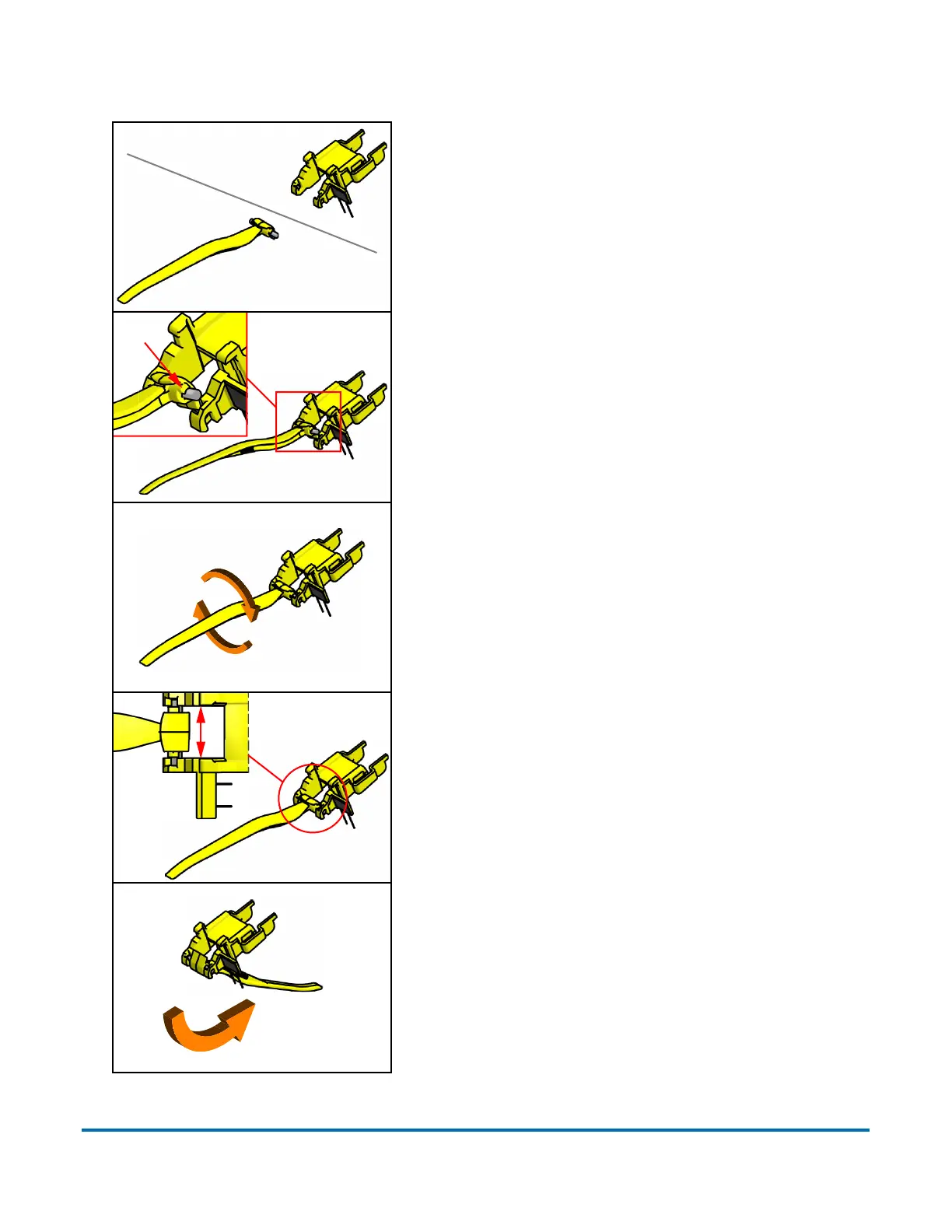

Load the finger assembly into the snap-in pivot,
at an angle. The finger assembly has small tabs
alongside its axle, which should point up.
Rotate the finger assembly so the axle sits flat.
Center the finger assembly in the snap-in pivot.
Rotate the finger assembly underneath the
snap-in pivot.
Figure 5-13: Upper Stacker Fingers
Snap-in
Pivot
Finger
Assembly
Tab
