INSTALLATION
14

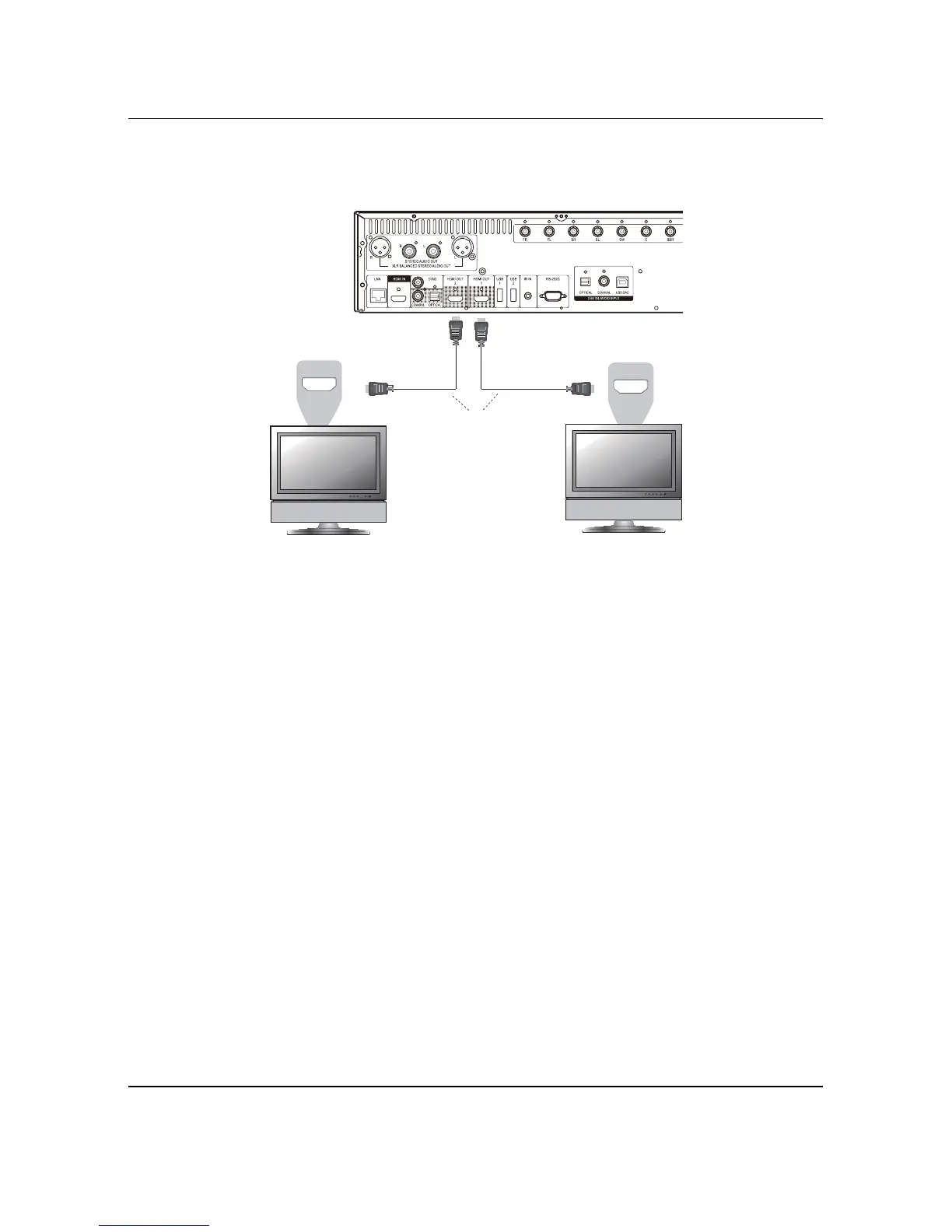

Connecting to Two TVs via HDMI
Rear Panel
HDMI In
HDMI In
HDMI Cables
TV 1
TV 2
x The two HDMI outputs (HDMI 1 OUT and HDMI 2 OUT) available on the rear panel of BDP-105 can
be connected to two TVs at the same time, and each output can deliver both digital video and audio
signals.
x We recommend that you connect your main TV (the one with larger screen size or the one that you
would watch more often) to HDMI 1 OUT in order to benefit from the dedicated video processor,
and set the Dual HDMI Output option in the Setup Menu to Dual Display to make sure that the
HDMI 2 OUT can also send out audio and vid
eo signals (see more details on page 55).
x You may connect the DIAG (diagnostic) output to one of your TVs for troubleshooting purposes.
Refer to page 13 for more details.
