Optek AF45 - Exploded view of AF45 sensor

Technical data and exploded views
- 9 -
optek-Manual--1004-2003-02--AF45-US-2011-01-04
www.optek.com
5.1 Exploded view of AF45 sensor

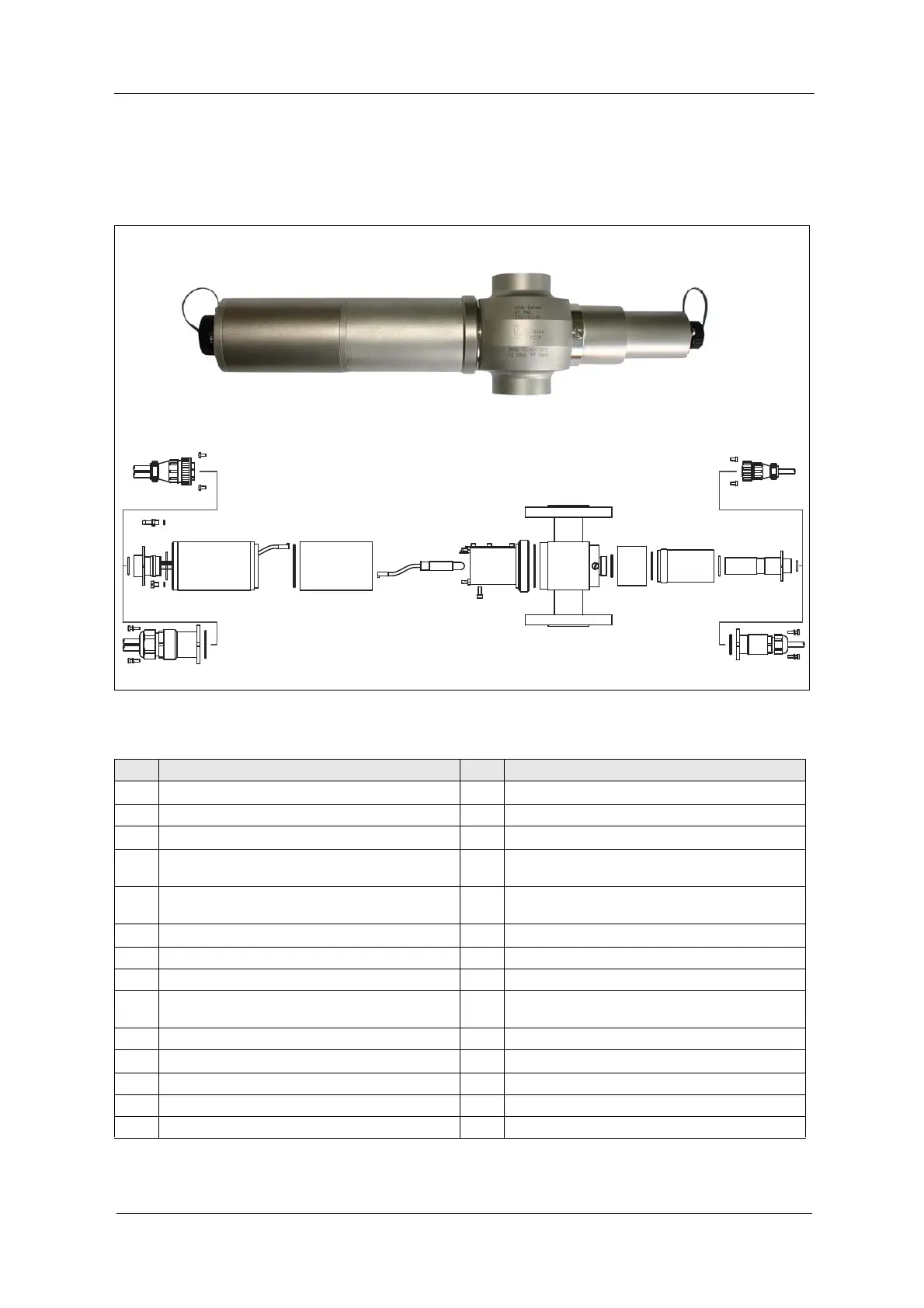

Fig. 3 Photo and exploded view of AF45
89576432 1914 1615 9 17 18331011
26 25
27 25
12 21
2318 24
20
1213
23 22 9
1
Tab. 3 Exploded view explanations
No. Explanation No. Explanation
1 Sensor body 15
O-Ring 25.12 x 1.78, Viton
®
2 Window ring M58 x 1.5, incl. 8 screws M5 16 Detector adapter AF45, 1.4571 (316Ti)
3
O-Ring 50.52 x 1.78, Viton
®
17 Optical housing OH06, 1.4571 (316Ti)
4 Housing lamp assembly AF45, incl. wavelength
module (see table 17 on page 38)
18
O-Ring 21.95 x 1.78, Viton
®
5 Screw M4 x 10 DIN 912 A4 19 Detector module AF45, incl. wavelength module (see
table 18 on page 39)
6 Lamp module AF45 20
O-Ring 10.10 x 1.60, Viton
®
7 Optical housing OH2 21 Detector cable AF45
8 HVPS (high voltage power supply) for AF45 22 Lamp cable AF45 with SS plug protector
9
O-Ring 31.47 x 1.78, Viton
®
23 4 screws M3 x 12 (DIN 7985), 1.4571 (316Ti), incl.
washer
10 Lamp socket 24 Detector cable AF45 with SS plug protector
11
O-Ring 18.77 x 1.78, Viton
®
25
O-Ring 4.00 x 1.00, Viton
®
12 4 screws M3 x 6 (DIN 7985), 1.4571 (316Ti) 26 Screw M5 x 6 (DIN 84), 1.4571 (316 Ti)
13 Lamp cable AF45 27 Purge connection M5, Ms/Ni
14 Window ring M24 x 1.5, incl. 8 screws M5
