5.8 Exploded view of AF45-HT-VB-PV sensor

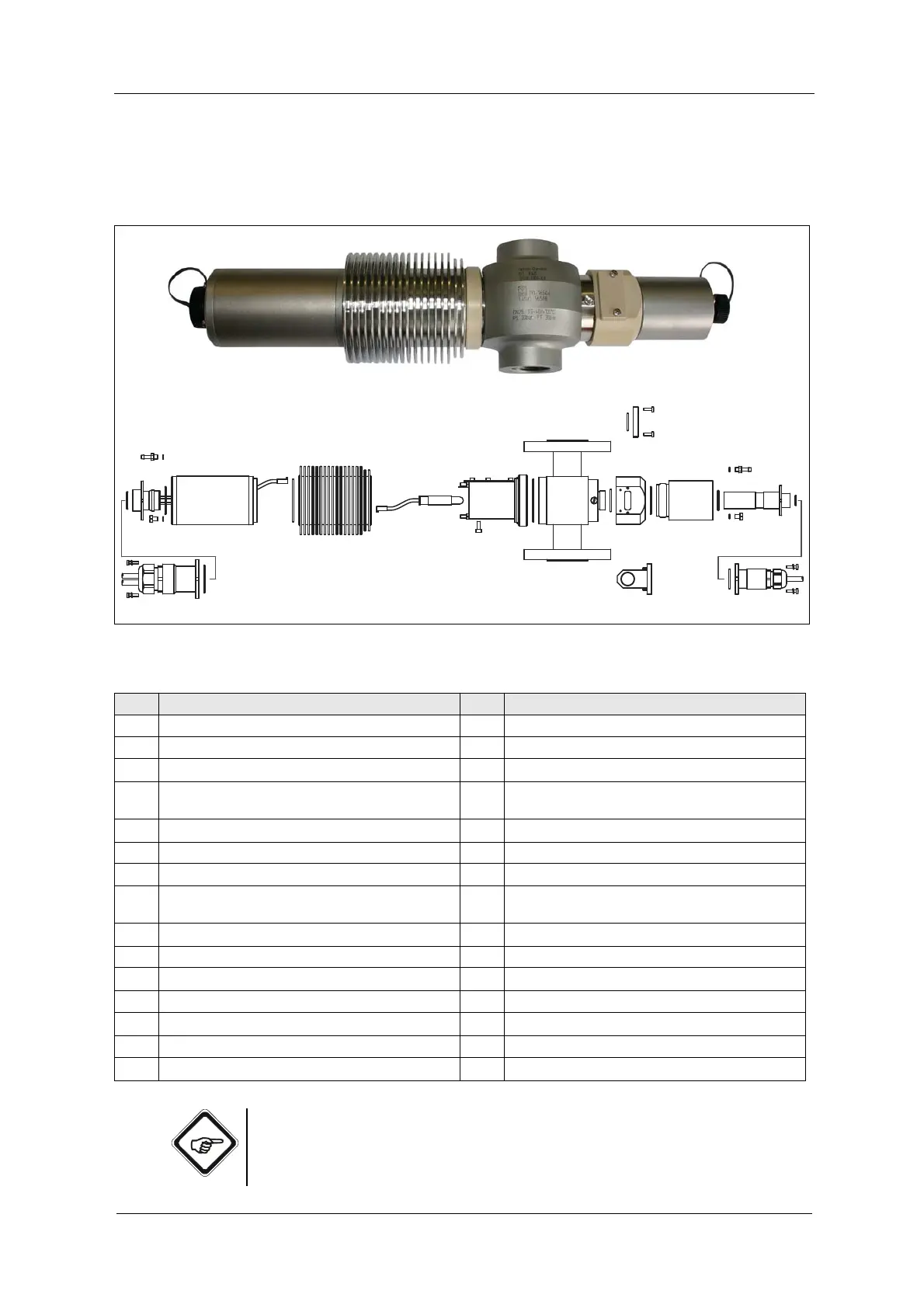

Fig. 10 Photo and exploded view of AF45-HT-VB-PV
Note!
For AF45-HT-VB-PV, the cable set always has to be equipped with plug
protector.
23 22 9
29
1011
28
9
30 28
837 65433214
27 18
15 16 9
28
17 18
2611 2 5
28
24 23
29
19 20
30
1
Tab. 10 Exploded view explanations
No. Explanation No. Explanation
1 Sensor body 16 Detector adapter AF45-HT-VB, PEEK
2 Window ring M58 x 1.5, incl. 8 screws M5 17 Optical housing OH06 Purge, 1.4571 (316Ti)
3
O-Ring 50.52 x 1.78, Viton
®
18
O-Ring 21.95 x 1.78, Viton
®
4 Housing lamp assembly AF45-HT, incl. wavelength
module (see table 17 on page 38)
19 Detector module AF45-HT, incl. wavelength module
(see table 18 on page 39)
5 Screw M4 x 10 DIN 912 A4 20
O-Ring 10.10 x 1.60, Viton
®
6 Lamp module AF45 21 -
7 Optical cooler housing OH2 22 Lamp cable AF45 with SS plug protector
8 HVPS (high voltage power supply) for AF45
23 4 screws M3 x 12 (DIN 7985), 1.4571 (316Ti), incl.
washer
9
O-Ring 31.47 x 1.78, Viton
®
24 Detector cable AF45 with SS plug protector
10 Lamp socket 25 Sealing cover FH03
11
O-Ring 18.77 x 1.78, Viton
®
26 2 screws M3 x 10 DIN 7985 A4, incl. washer
12 - 27 Validation filter in FH03
13 - 28
O-Ring 4.00 x 1.00 Viton
®
14 Window ring M24 x 1.5, incl. 8 screws M5 29 Screw M5 x 6 (DIN 84), 1.4571 (316 Ti)
15
O-Ring 25.12 x 1.78, Viton
®
30 Purge connection M5, Ms/Ni
