5.5 Exploded view of AF45-PV sensor

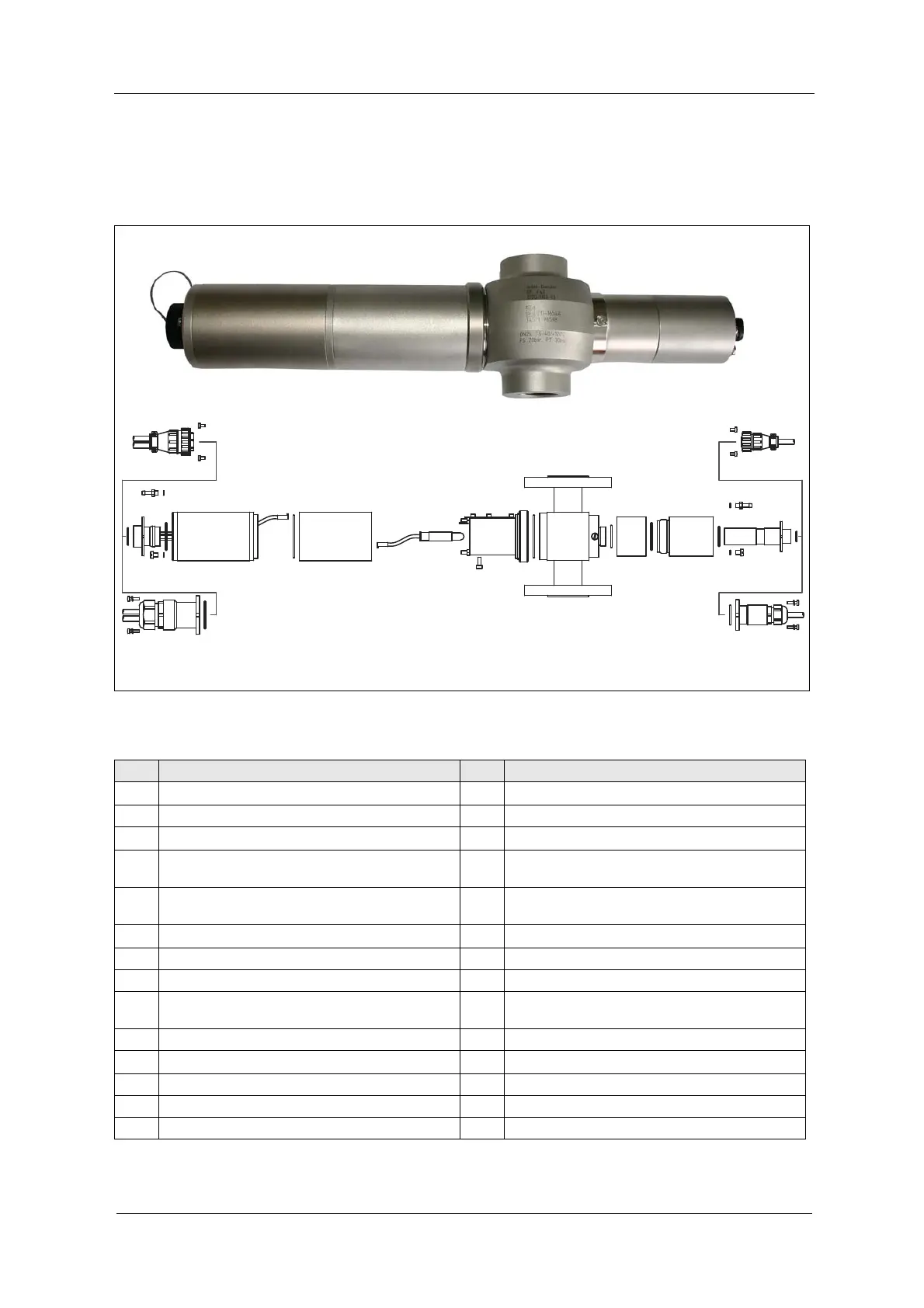

Fig. 7 Photo and exploded view of AF45-PV
6
23
1011 9
2526
22 9
387
2527
1213
25 4 3 3 14 1615 9
2318 24
2017 18 19
2112
2725
2625
1
Tab. 7 Exploded view explanations
No. Explanation No. Explanation
1 Sensor body 15
O-Ring 25.12 x 1.78, Viton
®
2 Window ring M58 x 1.5, incl. 8 screws M5 16 Detector adapter AF45, 1.4571 (316Ti)
3
O-Ring 50.52 x 1.78, Viton
®
17 Optical housing OH06 Purge, 1.4571 (316Ti)
4
Housing lamp assembly AF45, incl. wavelength mod-
ule (see table 17 on page 38)
18
O-Ring 21.95 x 1.78, Viton
®
5 Screw M4 x 10 DIN 912 A4 19
Detector module AF45, incl. wavelength module (see
table 18 on page 39)
6 Lamp module AF45 20
O-Ring 10.10 x 1.60, Viton
®
7 Optical housing OH2 21 Detector cable AF45
8 HVPS (high voltage power supply) for AF45 22 Lamp cable AF45 with SS plug protector
9
O-Ring 31.47 x 1.78, Viton
®
23
4 screws M3 x 12 (DIN 7985), 1.4571 (316Ti), incl.
washer
10 Lamp socket 24 Detector cable AF45 with SS plug protector
11
O-Ring 18.77 x 1.78, Viton
®
25
O-Ring 4.00 x 1.00 Viton
®
12 4 screws M3 x 6 (DIN 7985), 1.4571 (316Ti) 26 Screw M5 x 6 (DIN 84), 1.4571 (316 Ti)
13 Lamp cable AF45 27 Purge connection M5, Ms/Ni
14 Window ring M24 x 1.5, incl. 8 screws M5
