Maintenance
- 27 -
optek-Manual--1004-2003-02--AF45-US-2011-01-04
www.optek.com

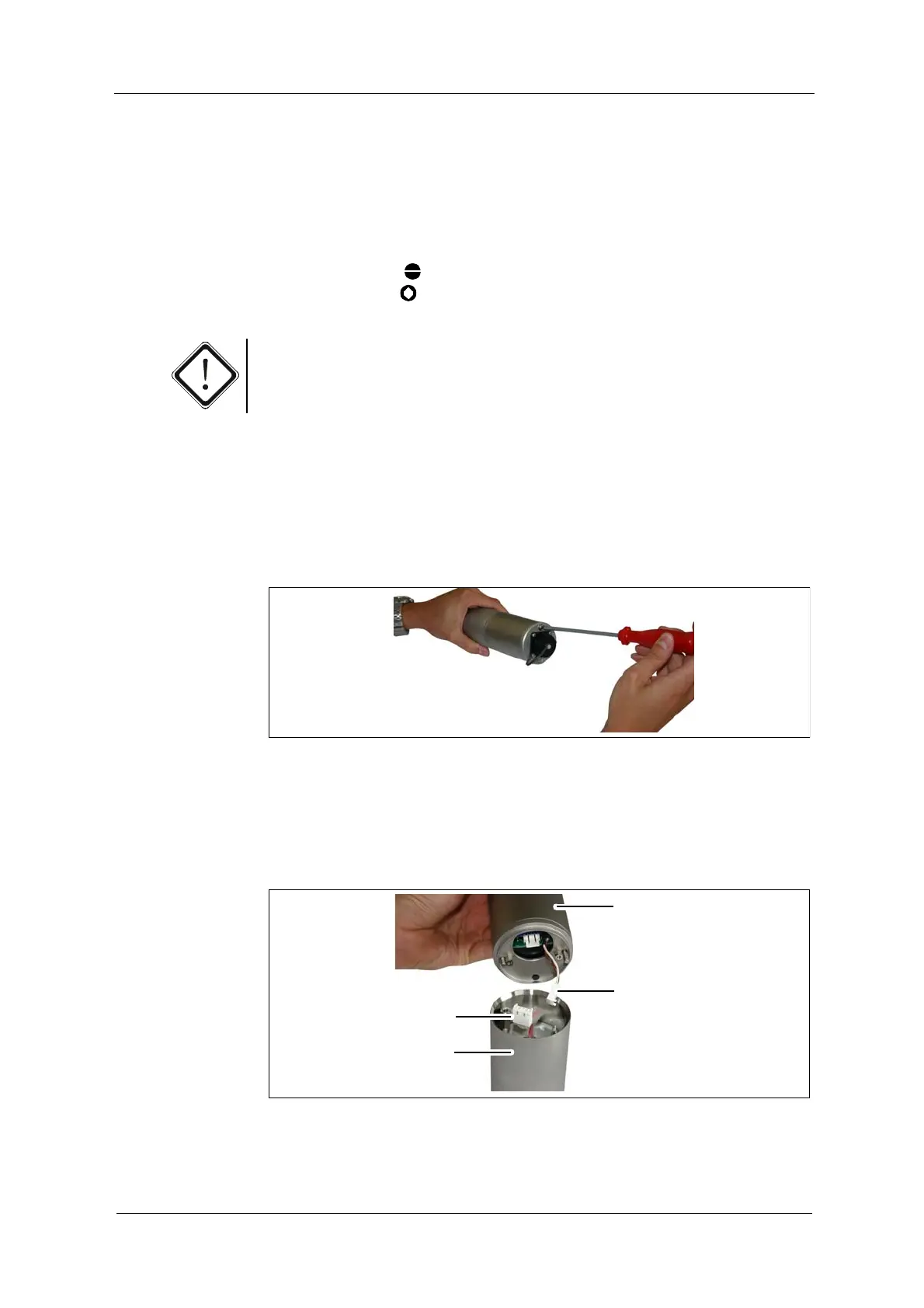

9.2 Exchange of the lamp module
Upon lamp exchange, the high voltage power supply is disconnected from the
optical housing OH02.
Tool • Screw driver
• Hex key M4
Caution!
Upon installation of the lamp module, make sure you do not touch its glass sur-
face.
1. Switch the converter voltage-free.
2. Loosen the sensor cable from the lamp module.
3. Slightly loosen the two screws (approx. 0.5 cm) connecting the high voltage
power supply with the optical housing OH2. The screws can now be moved
up and down.
Fig. 18 Loosening screws
4. Slightly lift the high voltage power supply (8, fig. 19) from the optical housing
OH2.
5. Carefully loosen the lamp and reference detector connectors (35 and 36).
6. Put aside the high voltage power supply (8).
Fig. 19 Loosening high voltage power supply
