Installation
- 18 -
optek-Manual--1004-2003-02--AF45-US-2011-01-04
www.optek.com

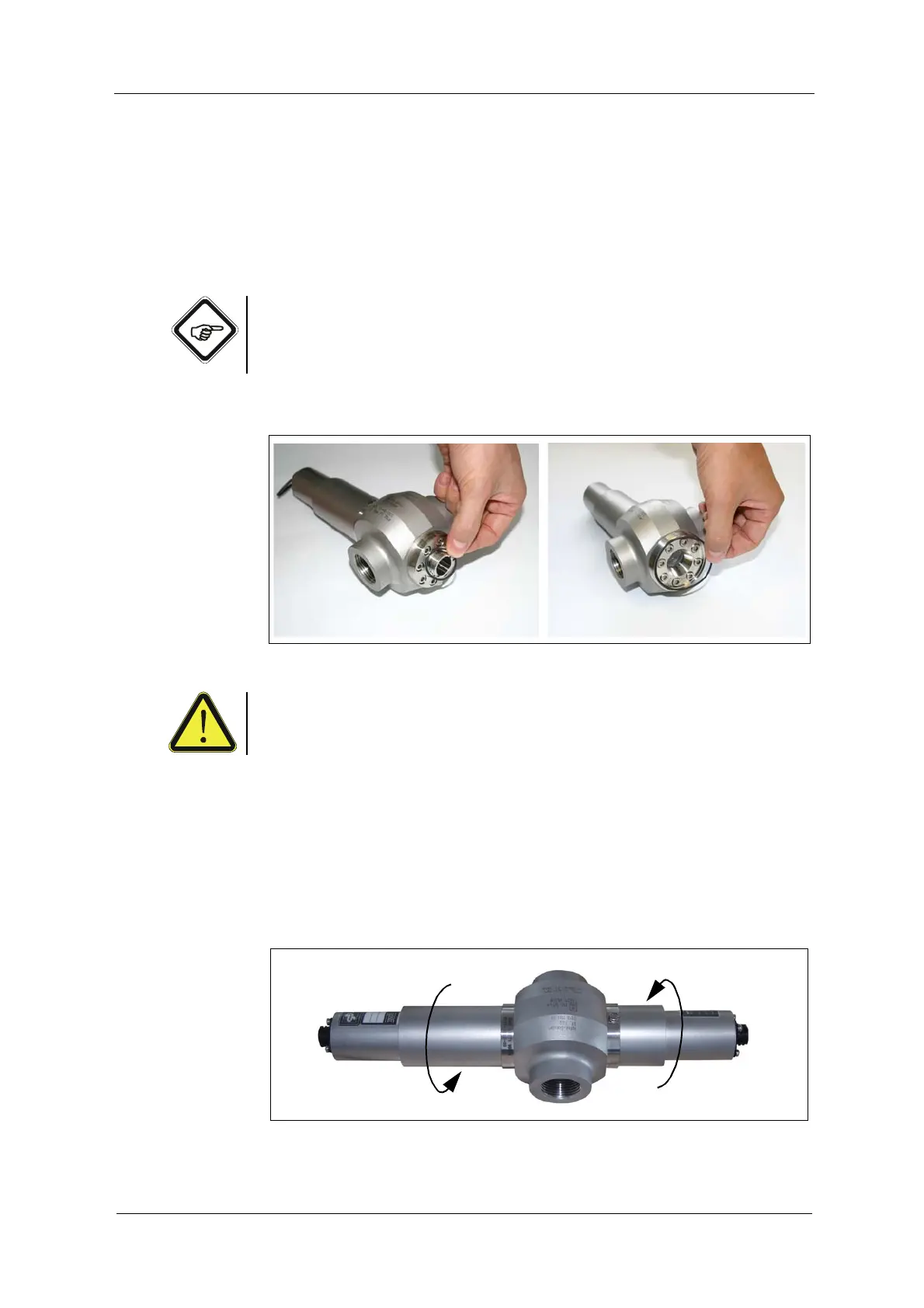

6.2 Installation of the sensor
Tool • not needed
Install sensor as described below:
Note!
O-Rings are delivered separately and are not installed at delivery.
1. Check that there are O-Rings for the sensor assemblies.
2. Place one O-Ring each into the groove of the window rings (see fig. 11).
Fig. 11 O-Ring at window ring
Danger!
Isopropanol is irritating!
Observe the safety regulations when handling Isopropanol!
3. Make sure that the windows of the sensor body are clean. If not, clean them
with Isopropanol.
4. Check the window ring threads for damage and soiling and clean them if
necessary.
5. Screw on sensor assemblies for detector and lamp sides to the sensor body
hand-tight (right-hand thread, fig. 12). It is recommended to use the supplied
installation paste.
Fig. 12 Installed sensor, example AF16-N / AF16-F sensor
