Optek AS56 - Dimension AS56-F; AS56-N Sensor

Technical data and exploded views
- 9 -
optek-sensors AS56, Version 04.2010_1.2US, 15.04.2010
www.optek.com
4.1 Dimension AS56-F / AS56-N sensor

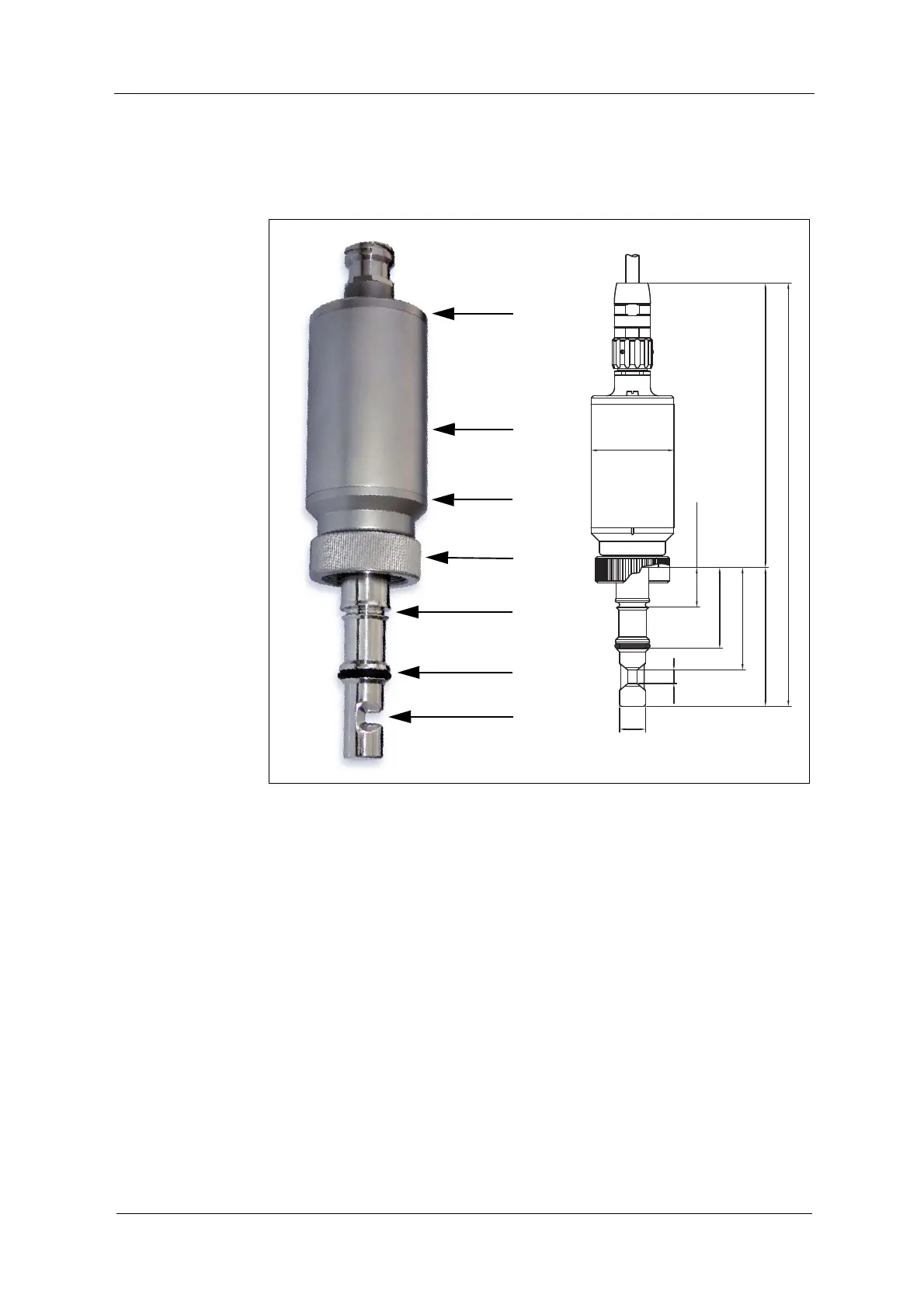

Fig. 3 Dimension AS56-F / AS56-N sensor
1. OPL (optical path length, measuring gap)
2. Lower O-Ring groove (with approx. 60 mm port length)
3. Upper O-Ring groove (with approx. 30 mm port length)
4. Swivel nut G 1-1/4" ISO 228/1 (short, approx. 19 mm)
5. Orientation mark for measuring gap
6. Probe head with optics and lamp module
7. Airpurge connection
7
6
5
4
3
2
1
28.8mm [1.13"]
Ø19mm [0.75"]
58.8mm [2.31"]
74.5mm [2.93"]
OPL
OPL + 95mm [3.74"] max. 210mm [8.27"]
OPL + 305mm [12.01"]
Ø60.3mm [2.37"]
