Technical data and exploded views
- 10 -
optek-sensors AS56, Version 04.2010_1.2US, 15.04.2010
www.optek.com
4.2 Accessories weld-in port AS25
The AS56 sensor is designed for port connections (similar to Ingold Port) with a
25H7 inside diameter, a nominal length of 60 mm (2.36 '') and a G1
1
/
4
''
ISO 228/1 connection thread. The AS25-GS60 port is prepared in a way that the
straight (0°) AS25-G60 port as well as the angular (15°) AS25-S60 port are easy
to realize at the site. The port may as well be welded in at an angle smaller than
15°, because it is provided with the corresponding cone. The three weld-in ports
are available as accessories (see chapter 9.4.8, page 37).

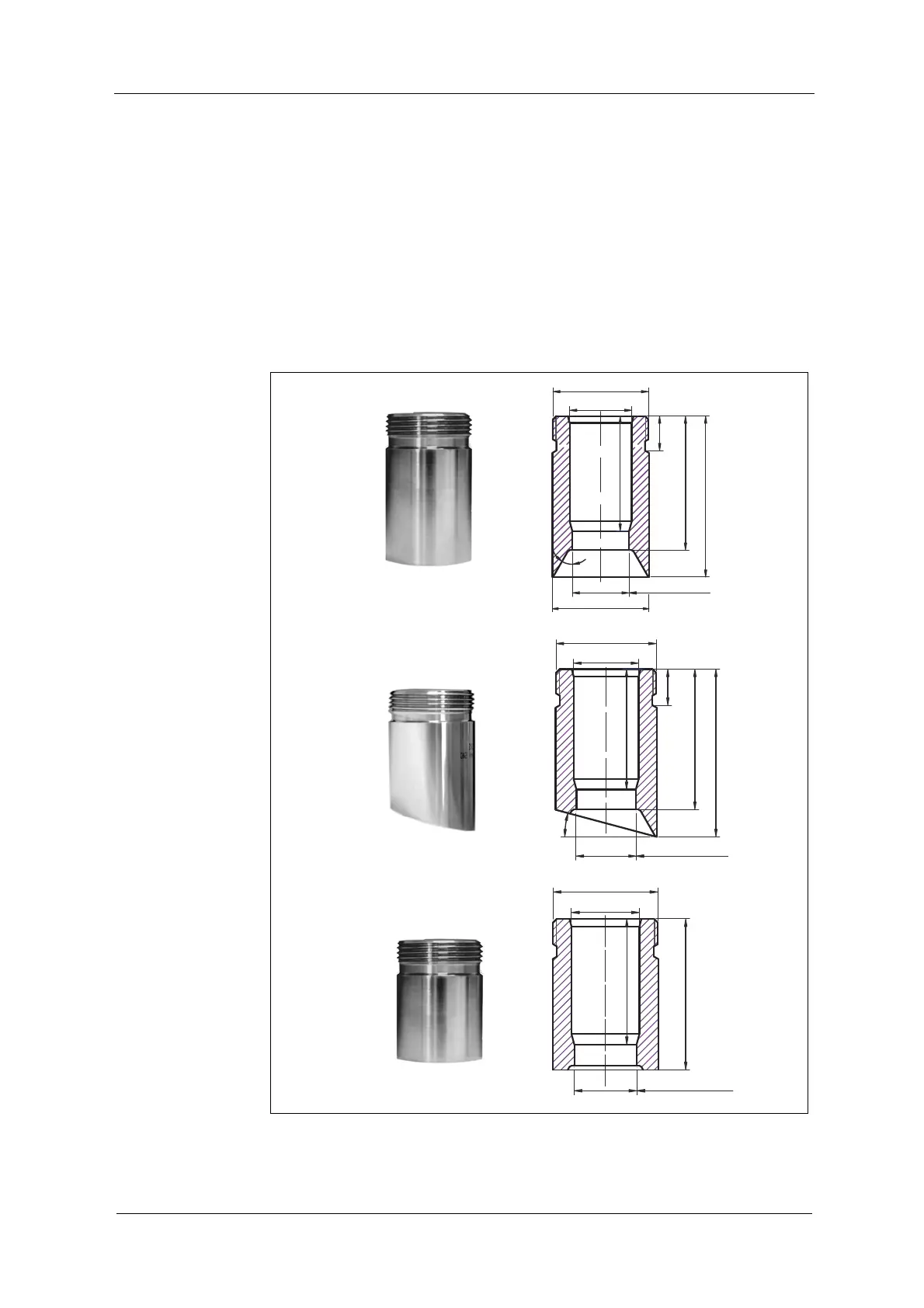

Fig. 4 Weld-in port
69.6mm [2.74"]
58.3mm [2.3"]
15mm [0.59"]
50mm [1.97"]
G1¼"A-ISO 228/1
Ø27mm [1.06"]
Ø25mm [0.98"] H7
15°
Ø27mm [1.06"]
Ø24.7mm [0.97"]
50mm [1.97"]
58.3mm [2.3"]
G1¼"A-ISO 228/1
30°
Ø42mm [1.65"]
15mm [0.59"]
70mm [2.76"]
Ø27mm [1.06"]
G1¼"A-ISO 228/1
Ø25mm [0.98"] H7
60mm [2.36"]
50mm [1.97"]
Weld-in port AS25-G60
Weld-in port AS25-S60
Weld-in port AS25-GS60
