5.5 DIATHERMY POWER CHARACTERISTICS

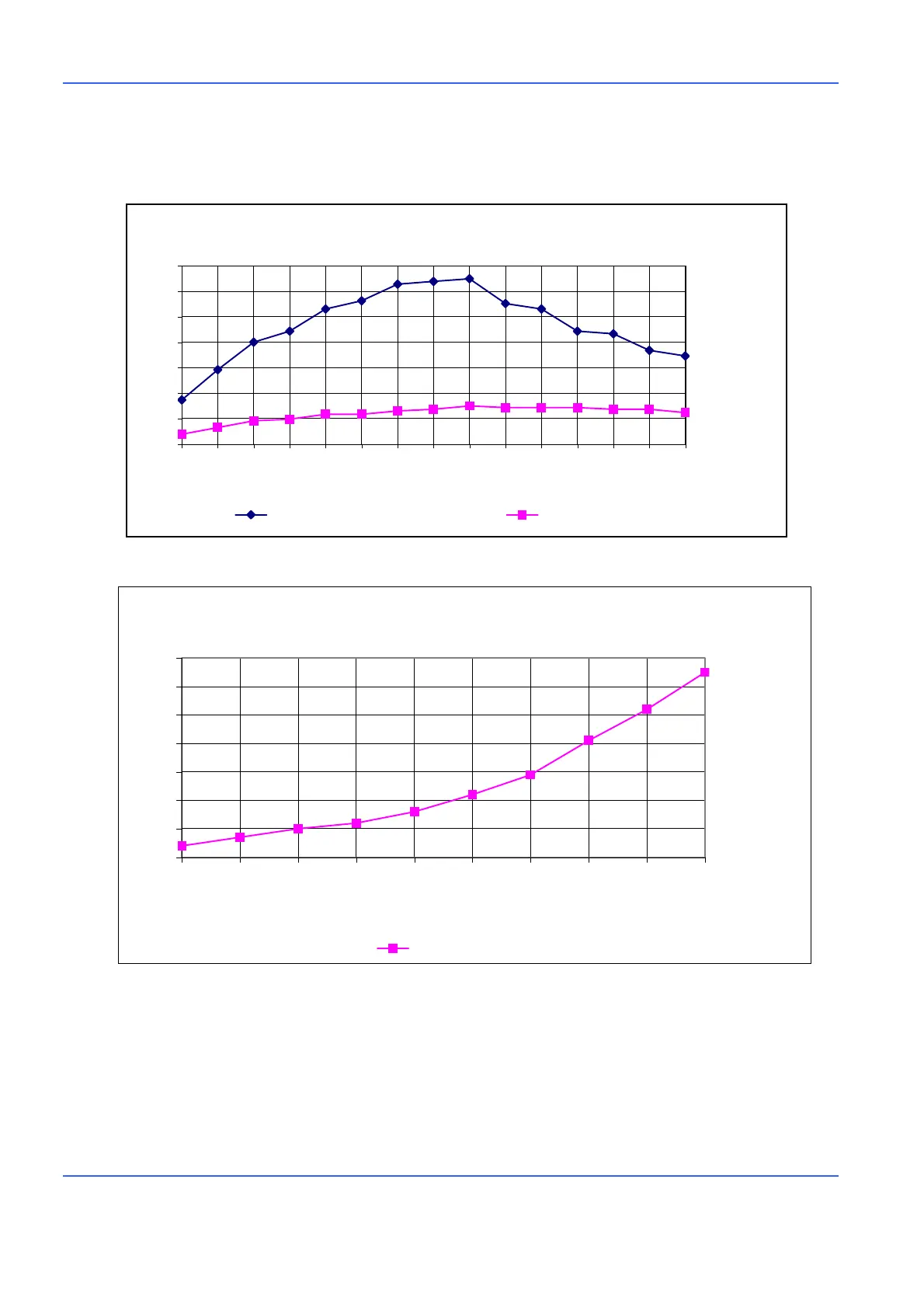

DIATHERMY POWER vs LOAD
0
1
2
3
4
5
6
7
50 100 150 200 250 300 350 400 450 500 550 600 650 700 750
Ohm
W
a
t
t
Preset=100% Preset=50%
PULSAR
Diathermy power vs load
-{}-
DIATHERMY POWER vs PRESET
0
1
2
3
4
5
6
7
10 20 30 40 50 60 70 80 90 100
Percent
W
a
t
t
Load=450 Ohm
PULSAR
Diathermy power vs preset
