8.2 I/A (IRRIGATION/ASPIRATION)
User Interface
• Parameter windows available
- FLOW (aspiration flow)
- VAC (limit vacuum)
• Irrigation parameters
- Status (ON/OFF)
- I.V. Pole height
• Aspiration parameters
- Vacuum mmHg (5 – 500)
- Flow rate cc/min (2-50)
- Mode (linear/panel)

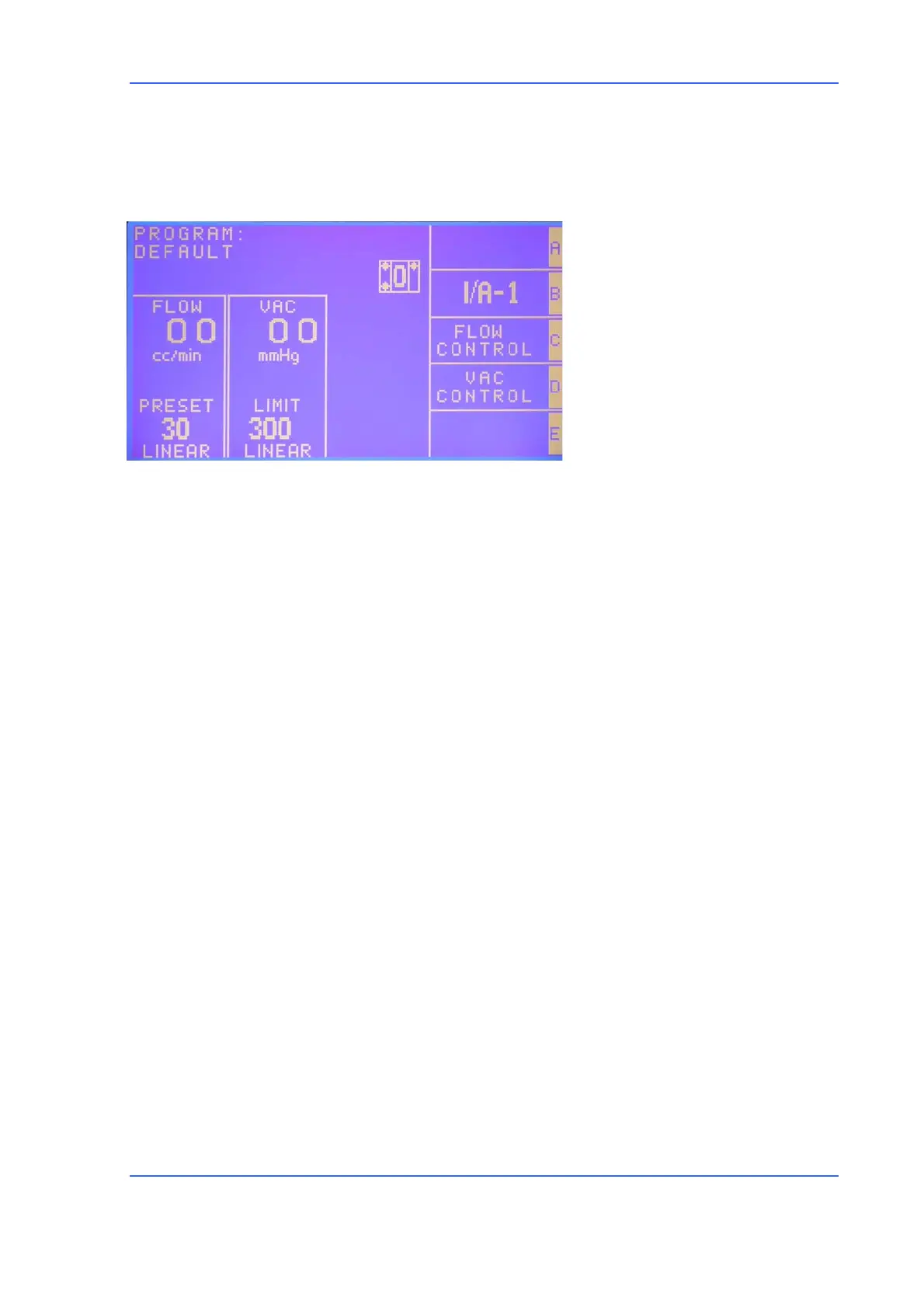

Touching the I/A function key, the IRRIGATION/ASPIRATION screen will be
displayed and the orange LED corresponding to the key will light up. Swapping
between memories I/A 1 and I/A 2 can also be achieved by means of the footswitch.
For footswitch operation please refer to the relevant section.
Operation
1) Touch the <I/A> button on the LCD screen to select the Irrigation/Aspiration
mode. When the <I/A> button is pressed, the voice synthesizer will announce
"I/A one." Two windows are displayed on the Irrigation/Aspiration screen: the
flow (FLOW) window and the vacuum (VAC) window.
2) Select required I/A tip and gently insert into the coaxial I/A handpiece.
3) Fit the silicone sleeve over the I/A tip cap. The sleeve should be gently pressed
onto the tip cap until the sleeve clears the aspiration port on the I/A tip.
4) Attach the I/A tubes from the installed irrigation aspiration lines by pushing the
end fittings into the corresponding fittings on the handpiece tubing.
5) Set I.V. pole height in the Irrigation window so that the BSS bottle is hung 50 to
70 centimetres higher than the patient eye level.
6) Press the <B> key to switch between mode I/A 1 e I/A 2.
