Product Overview

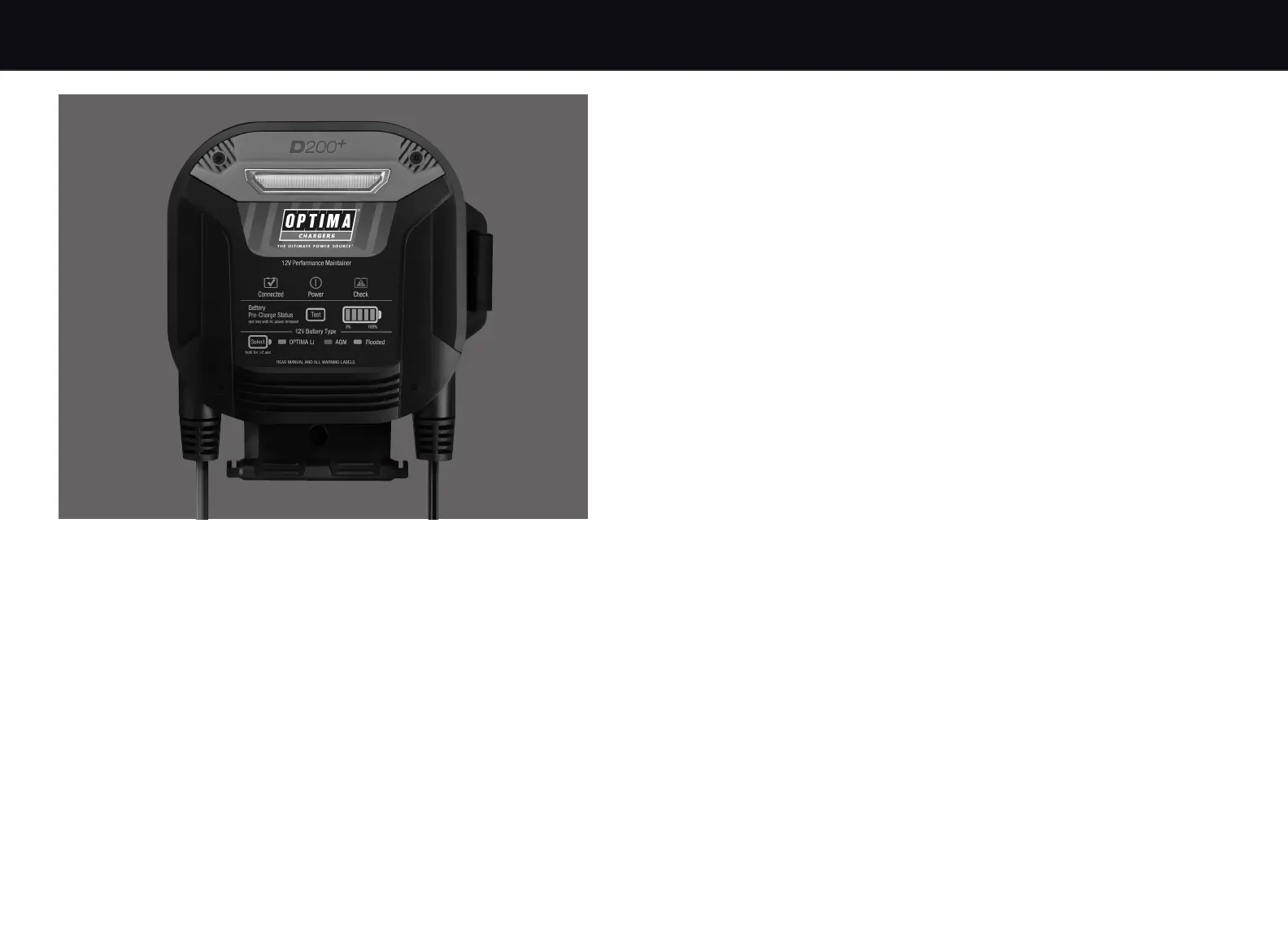

D200+ 12V Performance Maintainer Features
The OPTIMA
®
D200+ sports ultra-premium features and technology making battery care,
charging and maintaining batteries easier than ever before. Convenient features include: quick
connect interchangable OPTIMA
®
Li POWERLINK, battery clamp, and ring terminal cable
assemblies. The provided wall organizer bracket keeps your D200+ off the floor and stores
the cable assemblies when not in use.
Featuring a dual function battery gauge, the OPTIMA
®
D200+ provides a quick push to test
pre-charge battery status gauge (when AC is not present). When AC is present, the gauge
doubles as a state of charge status indicator while the battery is being charged.
Designed for the professional, enthusiast, and collector, the D200+ also includes 3
performance battery type profiles for use with all 12V: OPTIMA
®
LiFePO4, AGM and flooded
lead-acid batteries.
The new D200+ boasts weatherproof construction with an integrated cable management
wrap, and dual use body design that allows for portable or wall mounted use with our wall
organizer bracket.
Product Overview
Multi-Stage Charging Overview
Enhance the performance of your battery and extend battery life. The OPTIMA
®
D200+ 12V Performance
Maintainer employs the latest in digital, multi-stage charging. With 4 fully automatic modes your
D200+ 12V Performance Maintainer will sequence through stages 1 through 4 as below:
Stage 1 - System Check and Battery Analyzing: During this stage, the status bar will pulse
blue. This indicates the OPTIMA
®
D200+ is performing a self-test, analyzing the battery connection,
and checking if the battery is capable of being charged by outputting a small current to the battery.
The "Connected" LED will illuminate green indicating a good connection.
Note: While in analyze mode, the battery type can be changed by following the steps in the
“Selecting a Charging Profile” section on page 14.
This mode takes approximately 1 minute.
Stage 2 - Charging: During this mode the Status Bar will be solid red. The OPTIMA
®
D200+
will use all of its available charging amps (as controlled by temperature) until the battery voltage
is raised to 14.4 VDC (OPTIMA
®
LiFePO4 battery setting).
Stage 3 - Conditioning: During this mode the status bar will be solid amber. Batteries will hold
at 14.4 VDC (OPTIMA
®
LiFePO4 battery setting) to complete charging while conditioning the battery
connected. Upon completion, the OPTIMA
®
D200+ will go into Auto Maintain mode.
Stage 4 - Auto Maintain (Energy Saver Mode): During this mode the status bar will be solid
green, indicating Stage 2 charging and Stage 3 conditioning are completed. At this time the
OPTIMA
®
D200+ will initiate its Auto Maintain (Energy Saver) mode, which will monitor and Auto
Maintain the battery only when needed to maintain a full state of charge.
Fault Mode: In any above stages, if a fault condition occurs, the OPTIMA
®
D200+ will enter the
fault mode and stop outputting. The status bar will turn OFF; the Check LED will turn ON red.
Fault conditions include bad connection, reverse polarity, a battery that is below 2.5VDC or above
15.5VDC, then the Check LED will be solid red.
If the OPTIMA
®
D200+ cannot charge up the battery, such as if a 6V battery is connected instead
of a 12V battery, the Check LED will be pulsing red.
The OPTIMA
®
D200+ will go back to Stage 1 if all faults are cleared.
Additional Peace of Mind Safety and Operation Features:
Spark-free connection technology.
Reverse polarity and over temperature protection.
At-a-glance Charge Status bar, battery Connected and battery Check icons.
