1211

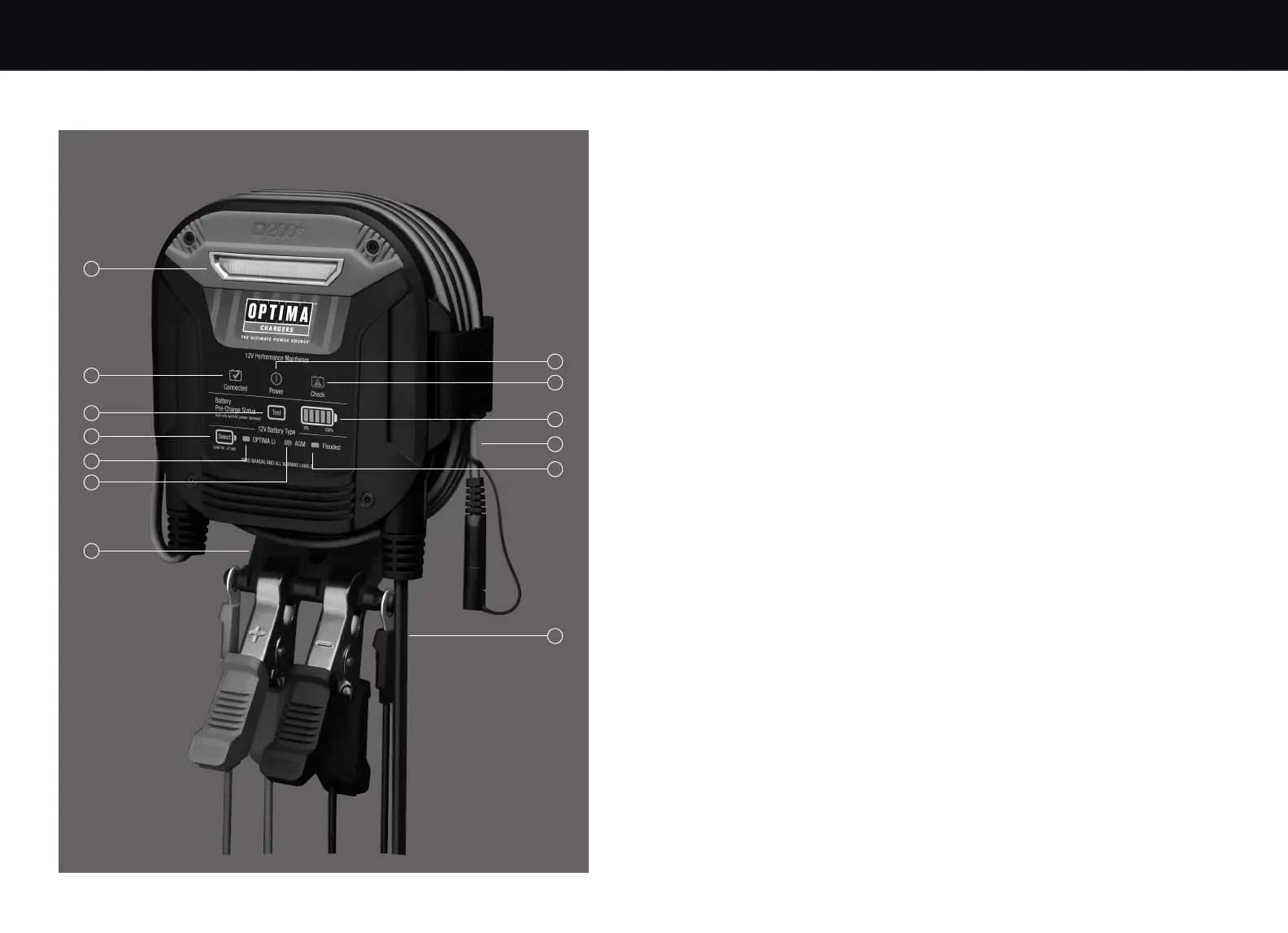

Getting to Know your Charger
Feature Function
1. Charge Status Light Bar Displays the corresponding color for Analyze, Charge,
Conditioning and Auto Maintain modes.
Analyze: blue pulsing
Charge: solid red
Conditioning: solid amber
Auto Maintain: solid green
Fault: OFF
2. Connected LED Turn ON (green) when the charger is connected to a battery.
3. Power LED Turn ON (blue) when AC power is present.
4. Check LED Check warning LED will illuminate red only if there is a
connection or battery problem requiring attention
5. Pre-Charge Status Push Button Prior to charging your battery, you may use this function
to view your battery charge level. AC power must be
removed and ENGINE MUST BE OFF to have the charger
identify the state of charge of your battery before charging.
During charging: This push button is disabled.
6. Pre-Charge Status Fill Gauge Illuminated LEDs indicate empty to full pre-charge status,
charge and auto-maintain mode gauge.
During Charging: Gauge displays battery charging (fill) level.
Without AC power (when the Pre-Charge Status push
button is pushed): Gauge display battery State of
Charge (SOC).
7. Battery Selector Push Button Selection of Charge Profiles by battery type
(OPTIMA
®
LiFePO4, AGM, Flooded Lead-Acid).
8. OPTIMA
®
LiFePO4 Profile For OPTIMA
®
ORANGETOP HYPERCORE
lithium
iron phosphate (LiFePO4) battery.
9. AGM Profile For OPTIMA
®
REDTOP, BLUETOP and YELLOWTOP AGM
STARTING batteries or other High Performance
starting AGMs.
10. Flooded Profile For standard 12V motorcycle, power sports, tractor
(small) AGM and flooded batteries. Up to 40 amp hour
rated batteries.
11. On Unit Cord Storage Stores AC and DC cables when not in use.
12. Wall Organizer Bracket Convenient wall organizer bracket for storage or location
near vehicle. Mounting screws are included.
13. AC Power Plug For powering the OPTIMA
®
D200+.
Getting to Know your Charger
This section of the manual is designed to give you a complete understanding of the features,
functions and operation of your OPTIMA
®
D200+.
5
2
1
4
6
7
10
8
9
12
13
3
11
