Assembly
OPTIMUM
MASCHINEN - GERMANY
30 / 11 / 2007Page 16 Assembly Add-on kit D240/D280 ; Version 1.3.3
© 2007
GB
£ Remove the lathe chuck protection
from the lathe again.

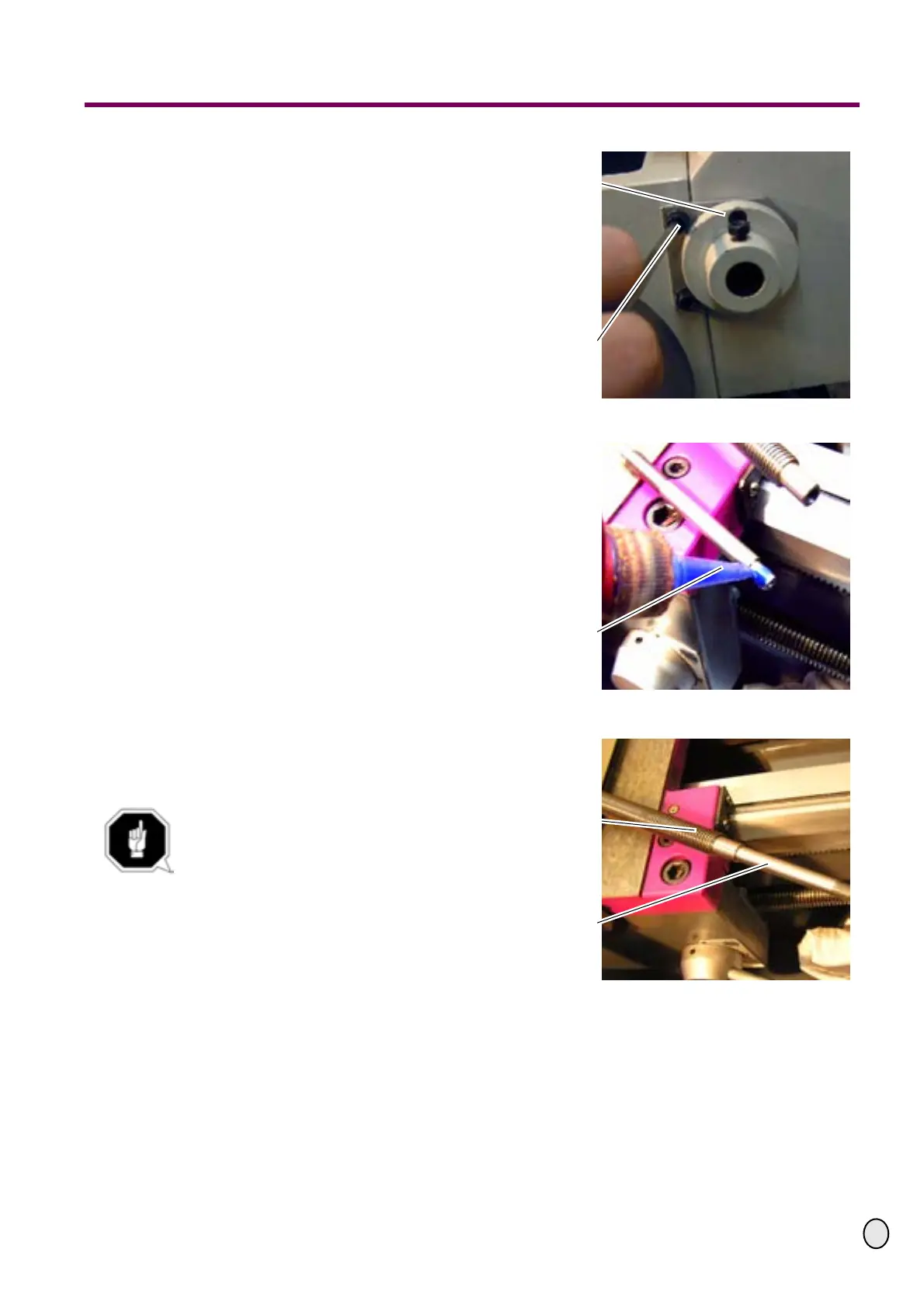

Illustr.: 4-21: Disassemble lathe chuck protection
£ Apply shaft retention agent onto the
longer relief of the shaft elongation
(part 11).
Illustr.: 4-22: Shaft retention agent
£ Insert the shaft elongation (part 11)
into the reamed hole 6 H7 of the
spindle.
CAUTION!
Only reassemble the spindle when
the gluing agent has dried out.
Illustr.: 4-23: Elongate the shaft
Fixture lathe chuck
protection
Fastening screws
Shaft retention agent
Spindle X axis
Shaft elongation
