OPTIMUM
MASCHINEN - GERMANY
Assembly
30 / 11 / 2007 Page 17Assembly Add-on kit D240/D280 ; Version 1.3.3
© 2007
GB

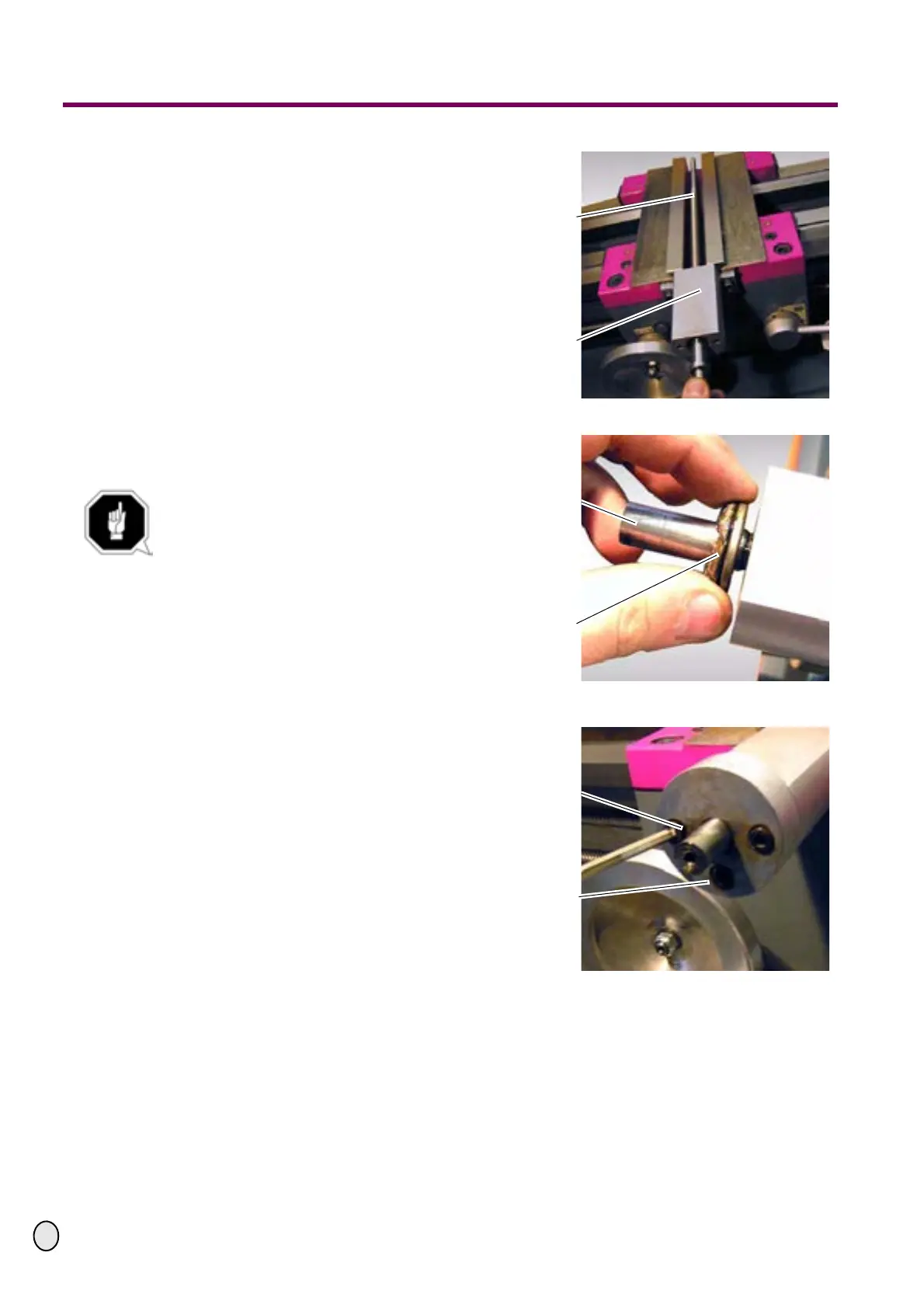

£ Push the spindle with the glued spin-
dle elongation into guiding device
again.
Illustr.: 4-24: Push the spindle into the guiding device
£ Completely push the second bear-
ing on the spindle.
CAUTION!
The bearing needs to be lubricated
again with lubricant for bearings.
Make sure that the bearing is com-
pletely free from dirt.
Illustr.: 4-25: 2nd bearing of the spindle
£ Fasten the 3 fastening screws of the
graduated collar.
Illustr.: 4-26: Graduated collar
Spindle X axis
Guiding device of the
spindle
Spindle X axis
2nd bearing of the
spindle
Fastening screws
Graduated collar
