Assembly
OPTIMUM
MASCHINEN - GERMANY
30 / 11 / 2007Page 18 Assembly Add-on kit D240/D280 ; Version 1.3.3
© 2007
GB

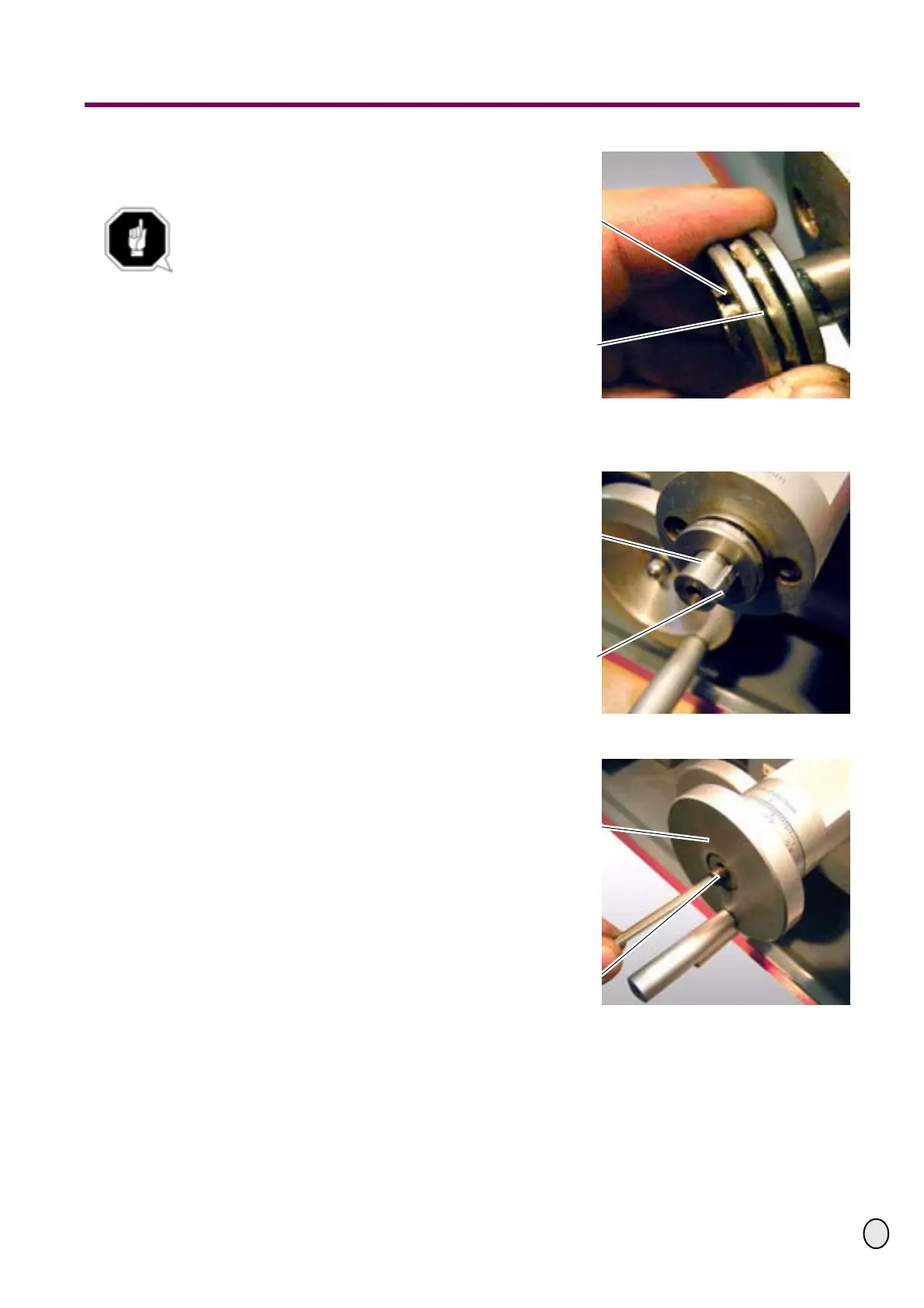

£ Completely push the 1st bearing of
the spindle again.
CAUTION!
The bearing needs to be lubricated
again with lubricant for bearings.
Make sure that the bearing is com-
pletely free from dirt.
Illustr.: 4-27: 1st bearing of the spindle
£ Insert the feather key into the spin-
dle again - if required - slightly drive
it in with a hammer.
Illustr.: 4-28: Feather key in the spindle
£ Mount the handwheel of the com-
pound slide onto the spindle.
£ Tighten the handwheel on the spin-
dle with the fastening screws.
Illustr.: 4-29: Handwheel compound slide
Spindle X axis
1st bearing of the
spindle
Spindle X axis
Feather key
Handwheel com-
pound slide
Fastening screw
