Assembly
30 / 11 / 2007 Page 27Assembly Add-on kit D240/D280 ; Version 1.3.3
© 2007
GB
£ Push the pulley (part 1) into the
housing (part 3) again and mount it
on the Z-axis.
£ Screw the pulley with a fork wrench
as far to the rear until the end of the
pulley fits closely to the nut of the
spindle.

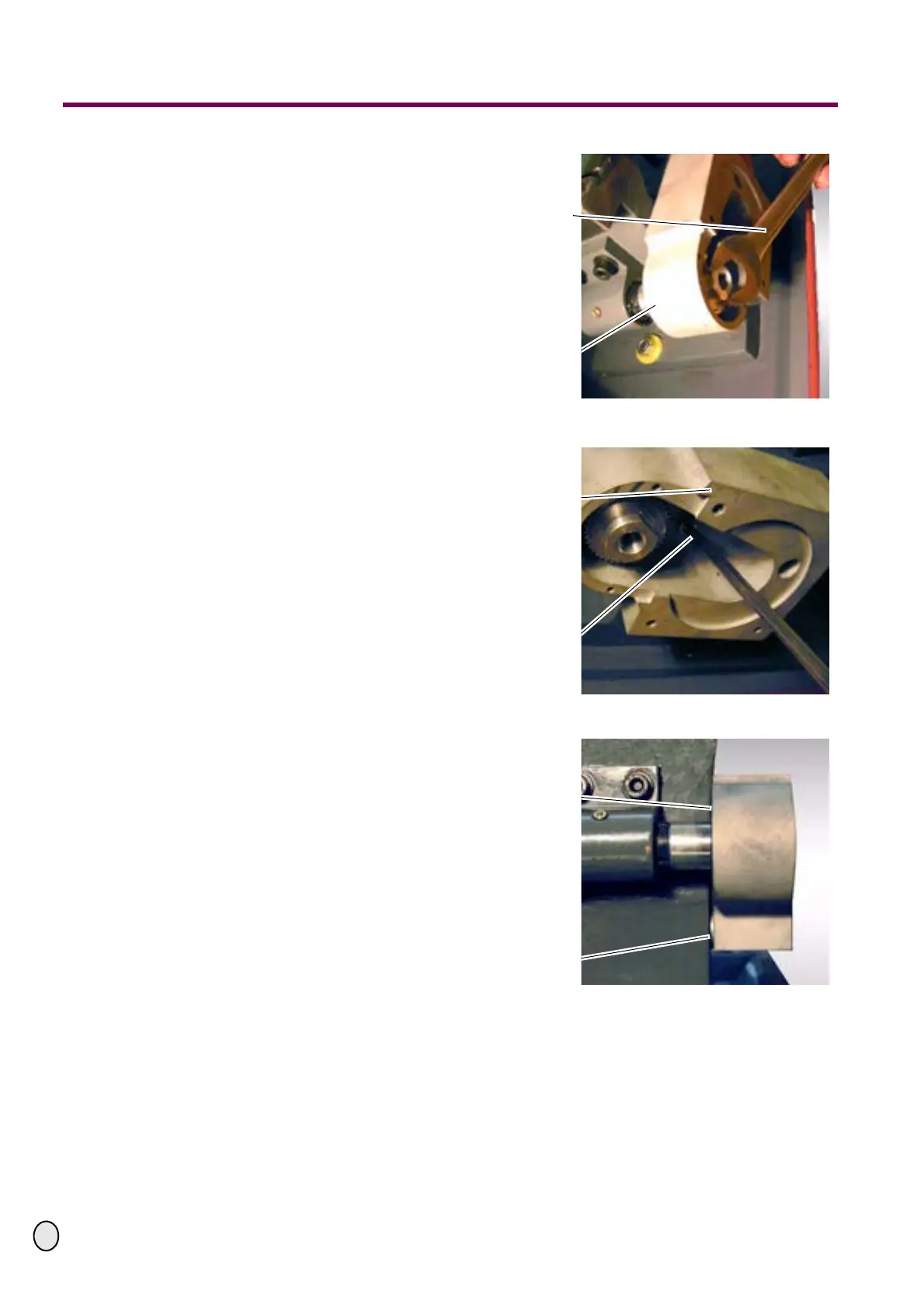

Illustr.: 4-54: Finish mounting of the housing
£ Screw the housing on the lathe bed
with the fixing screws (part 21) (M6 x
15).
Illustr.: 4-55: Fasten the housing
£ In some cases it may occur that
after screwing the housing is not
rectangular to the pulley. In such
cases you should put a spacer
between the housing and the lathe
bed in order to have a rectangular
alignment.
Illustr.: 4-56: Align the housing
Fork wrench
Housing Z axis
Housing
Fastening screw
Rectangular to one
another
Spacer
